3-2
3

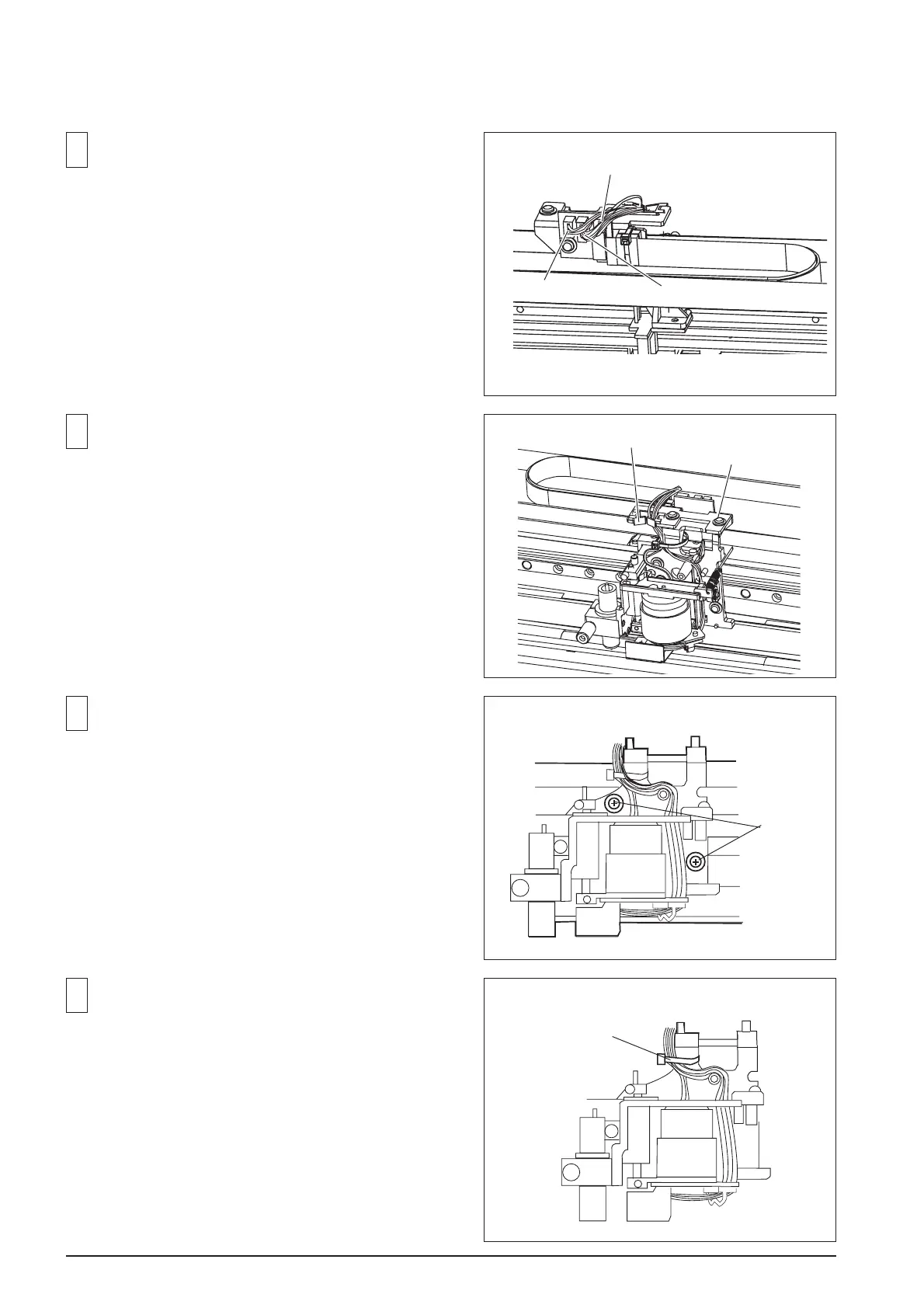

Disconnect the Cables of CROP MARK SENSOR,
PINCH ROLLER SENSOR and SOLENOID.
4
Unhook and remove the CABLE STAY.
5
6
Remove the TOOL CARRIAGE.
Remove the CABLE TIE for fixing the wirings.
SCREWS
CABLE TIE
PINCH ROLLER SENSOR
CROP MARK SENSOR
SOLENOID
HOOK
CABLE STAY
