3-3
7
8
9
10

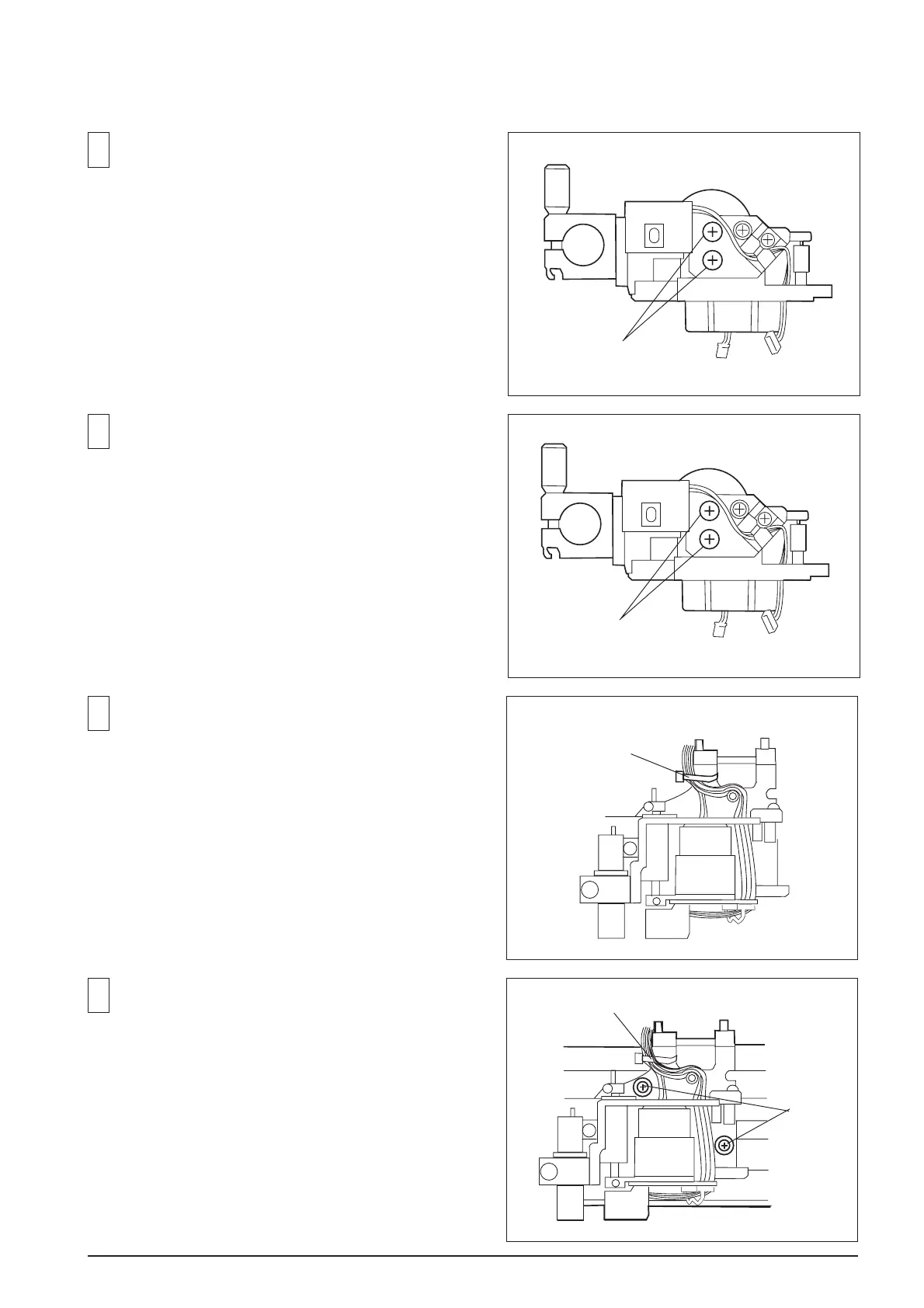

Remove the CROP MARK SENSOR from the TOOL
CARRIAGE.
Pass the PINCH ROLLER SENSOR CABLE through
the hole of the TOOL CARRIAGE and fix the TOOL
CARRIAGE by lifting it up.
Fix the Cables of CROP MARK SENSOR and
SOLENOID with the CABLE TIE.
Fix the CROP MARK SENSOR to the new TOOL
CARRIAGE.
SCREWS
SCREWS
CABLE TIE
SCREWS
PINCH ROLLER SENSOR CABLE
