3-4
11
12
13

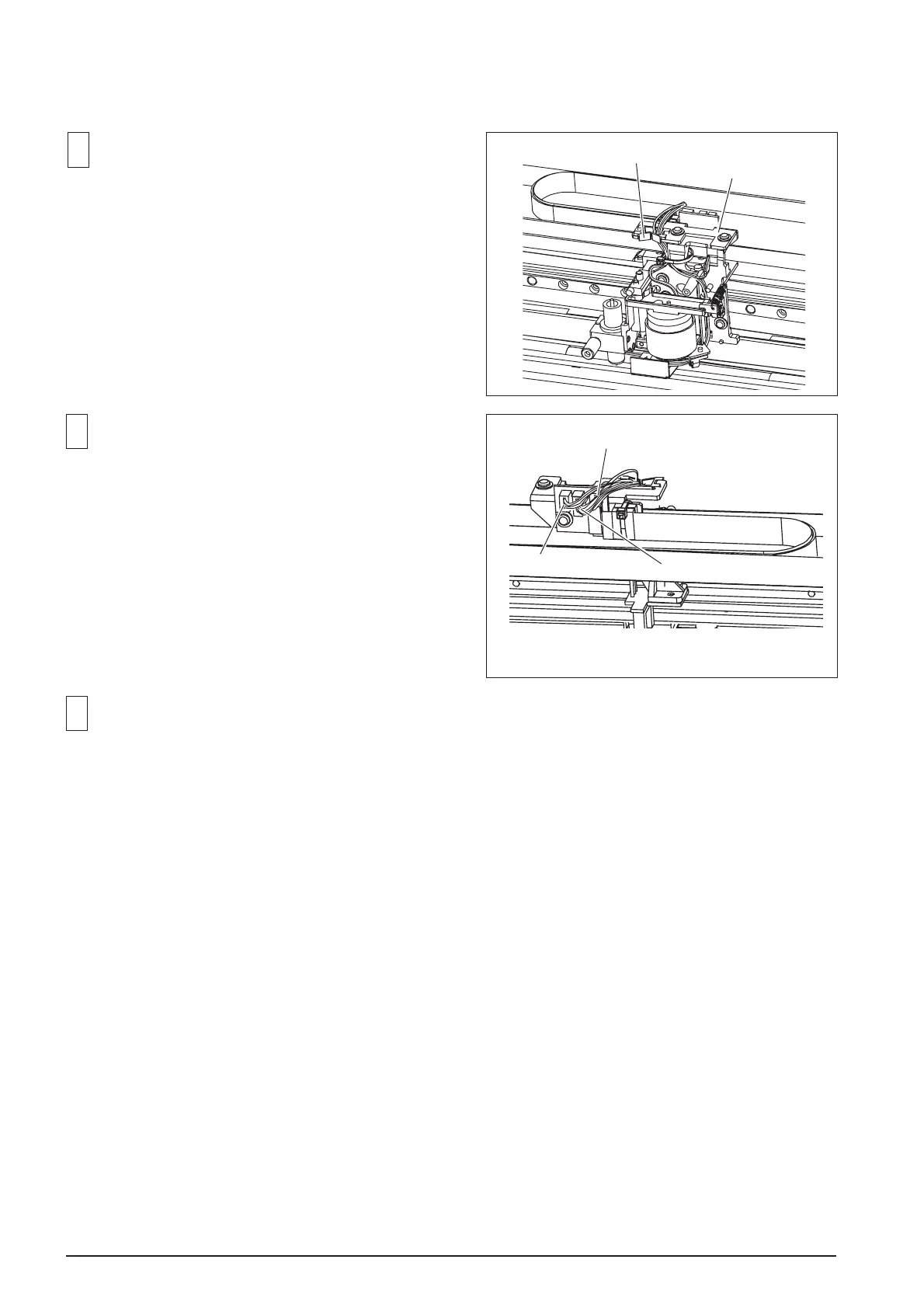

Fix the CABLE STAY and fix the Cables with the
HOOK.
Connect the Cables of CROP MARK, PINCH ROLLER
and SOLENOID.
HOOK
CABLE STAY
PINCH ROLLER SENSOR
CROP MARK SENSOR
SOLENOID
Carry out the following adjustments.
1. TOOL HEIGHT ADJUSTMENT
2. TOOL PRESSURE ADJUSTMENT
3. AUTO TOOL/CROP MARK SENSOR POSITION ADJUSTMENT

Table of Contents

Other manuals for Roland GX-24

Preview: User Manual
User Manual70 pages
Preview: Guide
Guide33 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Roland GX-24 and is the answer not in the manual?

Roland GX-24 Specifications

General IconGeneral
Cutting SpeedUp to 20 inches/sec (500 mm/sec)
Distance Accuracy±0.004 inches (±0.1 mm) or less
Repeatability±0.1 mm (0.0004 in.) or less
InterfaceUSB
Power SupplyAC 100-240V, 50/60Hz
Operating Temperature5 to 40°C (41 to 104°F)
Operating Humidity35 to 80% RH (non-condensing)
Software Resolution0.025 mm/step (0.001 in./step)
