37
Mar. 2006 HPD-10

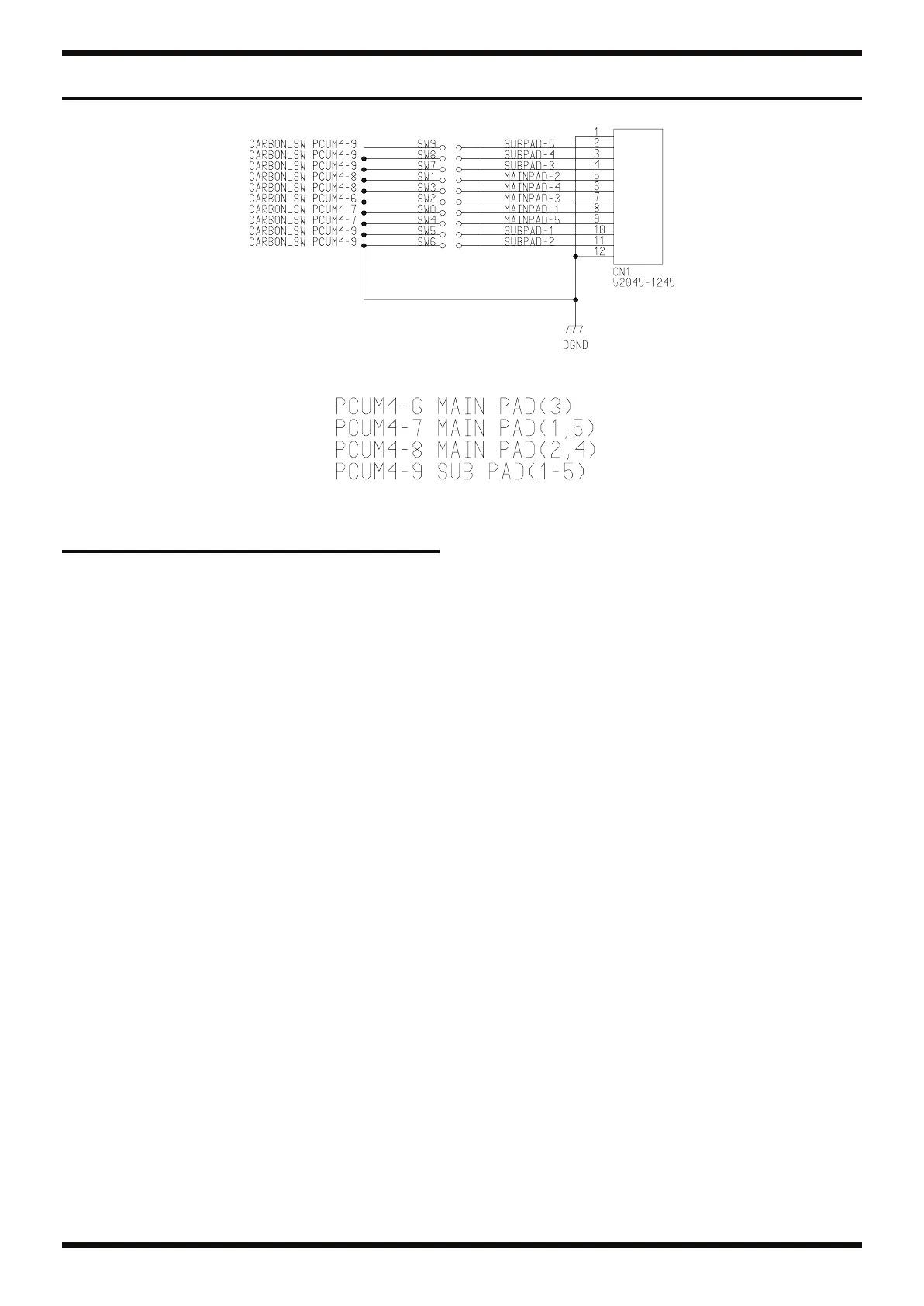

Circuit Diagram (SENSOR BOARD)
fig.sensor-kairo.eps_40
Error Messages
midi offline!
MIDI Cable was disconnected, or
Communication with external MIDI device was interrupted. Check the MIDI
connections and cables.
midi buf full!
Too much MIDI messages were received at once and could not be processed
correctly. Verify connections and type of the MIDI messages you are sending.
midi rx error!
The HPD-10 could not receive MIDI messages correctly. Transmit the
messages again.
bulk rx error!
The HPD-10 could not receive BULK MIDI data correctly. Transmit the
messages again. If the problem continues, there might be some problems with
the data transmitted to the HPD-10.
bulk checksum!
Checksum values of System Exclusive messages were not correct. Correct the
checksum values.
battery low!
The internal battery, used for maintaining data in the user memory, has
become weak. Replace the battery.
Service Notes(A4)_e 37 ページ ２００６年６月１日 木曜日 午後４時５分
