Roland RD-700 - Pedal, Control Knob, and EQ Settings

73

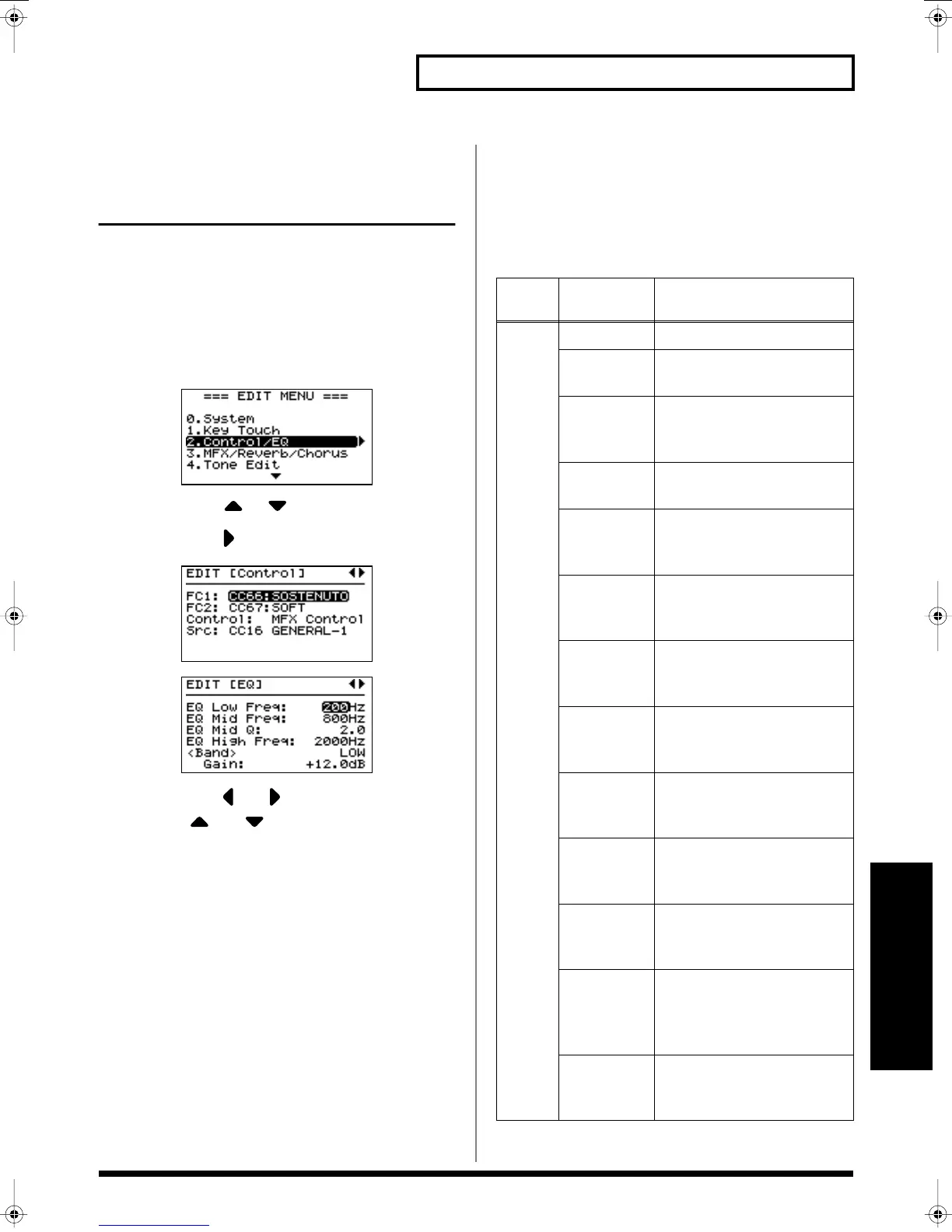

Detailed Settings for Each Function ([EDIT])
Edit Mode
Pedal, [CONTROL] Knob, and
Equalizer Settings
(Control/EQ)
You can change the functions assigned to the pedals and
[CONTROL] knob and change the equalizer settings.
How to Make Settings
1. Press [EDIT], getting the indicator to light.
The Edit Menu screen appears.
fig.Editmenu1.eps_150
2. Press CURSOR [ ]/[ ] to select “2.Control/EQ.”
3. Press CURSOR [ ] to display the Edit screen.
fig.conteq1.eps_150
fig.conteq2.eps_150
4. Press CURSOR [ ] or [ ] to switch screens, and press
CURSOR [ ] or [ ] to move the cursor to the
parameter to be set.
5. Press [INC/YES] or [DEC/NO] to set the value.
6. When you have finished making the settings, press
[EDIT], extinguishing its indicator.
You are returned to the Tone screen.
Assigning Functions to Pedals
(FC1/FC2)
This setting determines the function of the pedal switches or
expression pedals (such as the optional EV-5) that are
connected to the FC1 and FC2 jacks on the rear panel.
Param-
eter
Value
Function/Parameter Setting
Changed
FC1
FC2
OFF No control
CC01-CC31,
CC33-CC95
Controller Numbers 1–31,
33–95
96:
PITCH
BEND
Applies the same effect (pitch
bend) obtained by tilting the
bender to the left and right.
97: AFTER
TOUCH
After Touch
98: OCT-UP
Each pedal press raises the key
range in octave steps (up to 3
octaves higher).
99: OCT-
DOWN
Each pedal press lowers the
key range in octave steps (up to
3 octaves lower).
100:
START/
STOP
Starts/Stops the external se-
quencer.
101:
TAP TEMPO
The tempo will be modified to
the interval at which you press
the pedal.
102:
RHY
PLY/STP
Starts and stops Rhythms (p.
51).
103:
RHYTHM
TYPE
Switches the rhythm variations
(p. 82).
104:
ARPEGGIO
SW
Performs the same function as
[ARPEGGIO]. Switches the Ar-
peggio (p. 49) on and off.
105:
MFX
ON/OFF
Performs the same function as
MULTI EFFECTS [ON/OFF].
Switches the multi-effects (p.
53) on and off.
106:
CONTROL
SRC
Transmitting the same MIDI
messages as the Src settings (p.
74).
