Block Diagram

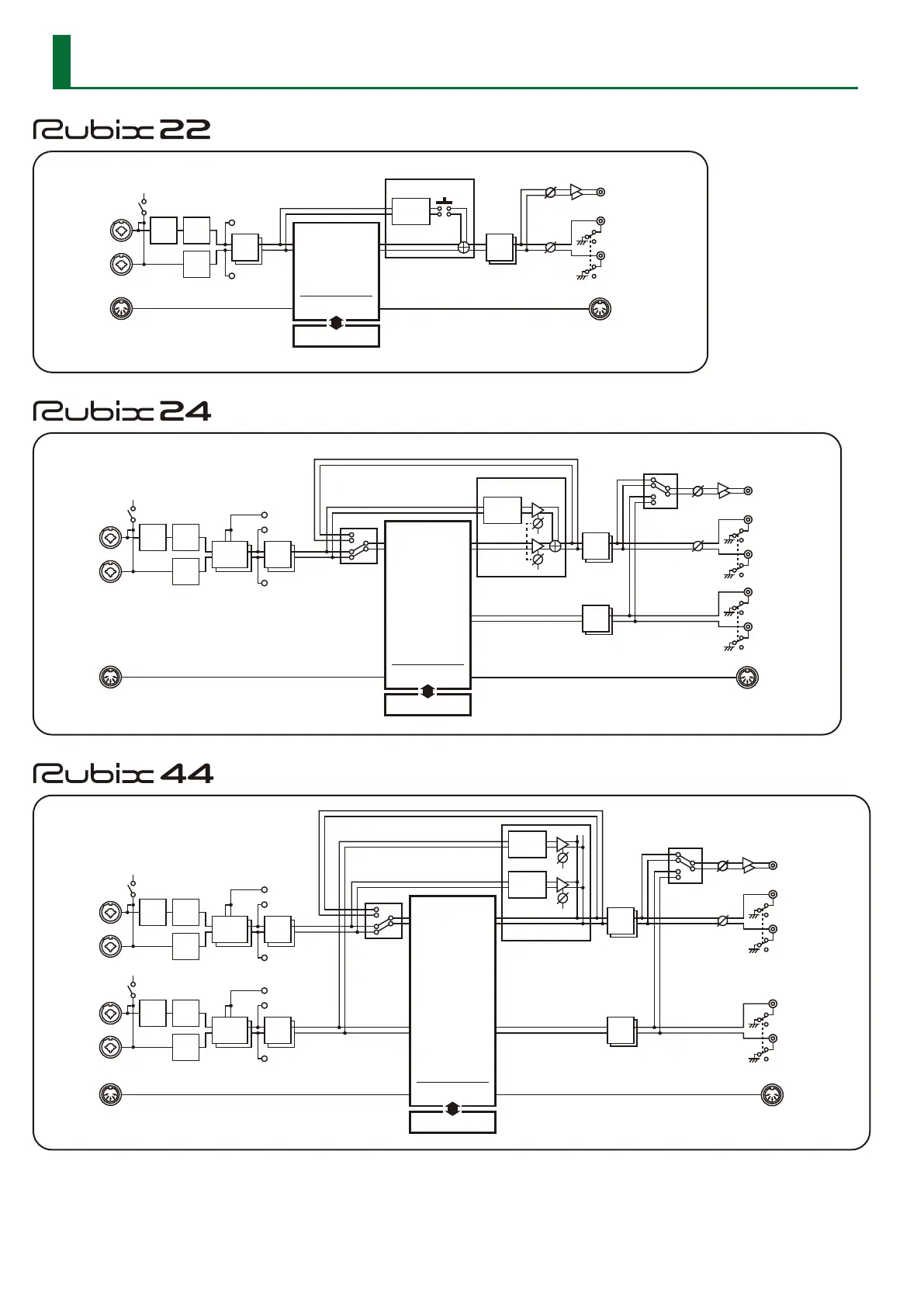

BLOCK DIAGRAM
INPUT 1L
INPUT 2R
+48V
Hi-Z/
Lo-Z
SENS
SENS
PEAK/SIG
PEAK/SIG
A/D
AUDIO
IN 1/2 OUT 1/2
MIDI
IN
OUT
Hi-SPEED USB
DIRECT MONITOR
MONO/
STEREO
MIDI IN
D/A
PHONES
OUTPUT
OUTPUT 1L
OUTPUT 2R
PHONES
MIDI OUT
NOR/LIFT
BLOCK DIAGRAM
INPUT 1L
INPUT 2R
+48V
Hi-Z/
Lo-Z
SENS
SENS
COMP/
LIMIT
COMP/
LIMIT
PEAK/SIG
PEAK/SIG
A/D
LOOPBACK
AUDIO
IN 1/2 OUT 1/2
OUT 3/4
MIDI
IN
OUT
Hi-SPEED USB
DIRECT MONITOR
MONO/
STEREO
MIDI IN
D/A
D/A
PHONES
SELECT
PHONES
OUTPUT
OUTPUT 1L
OUTPUT 2R
OUTPUT 3L
OUTPUT 4R
PHONES
MIDI OUT
NOR/LIFT
NOR/LIFT
BLOCK DIAGRAM
INPUT 1L
INPUT 2R
+48V
Hi-Z/
Lo-Z
SENS
SENS
COMP/
LIMIT
COMP/
LIMIT
PEAK/SIG
PEAK/SIG
A/D
LOOPBACK
AUDIO
IN 1/2 OUT 1/2
OUT 3/4
MIDI
IN
OUT
Hi-SPEED USB
DIRECT MONITOR
MONO/
STEREO
MIDI IN
D/A
D/A
PHONES
SELECT
PHONES
OUTPUT
OUTPUT 1L
OUTPUT 2R
OUTPUT 3L
OUTPUT 4R
PHONES
MIDI OUT
NOR/LIFT
NOR/LIFT
INPUT 3L
INPUT 4R
+48V
Hi-Z/
Lo-Z
SENS
SENS
COMP/
LIMIT
COMP/
LIMIT
PEAK/SIG
PEAK/SIG
A/D
IN 3/4
MONO/
STEREO

Roland rubix 22 Specifications

General

Audio Resolution	24-bit/192kHz
Phantom Power	Yes
USB	USB 2.0
Headphone Output	Yes
Type	Audio Interface
Channels	2-in/2-out
Direct Monitoring	Yes
Compatibility	Mac, Windows
Inputs	2 x XLR/TRS combo
Outputs	2 x 1/4" TRS
Power Supply	USB bus power
