5

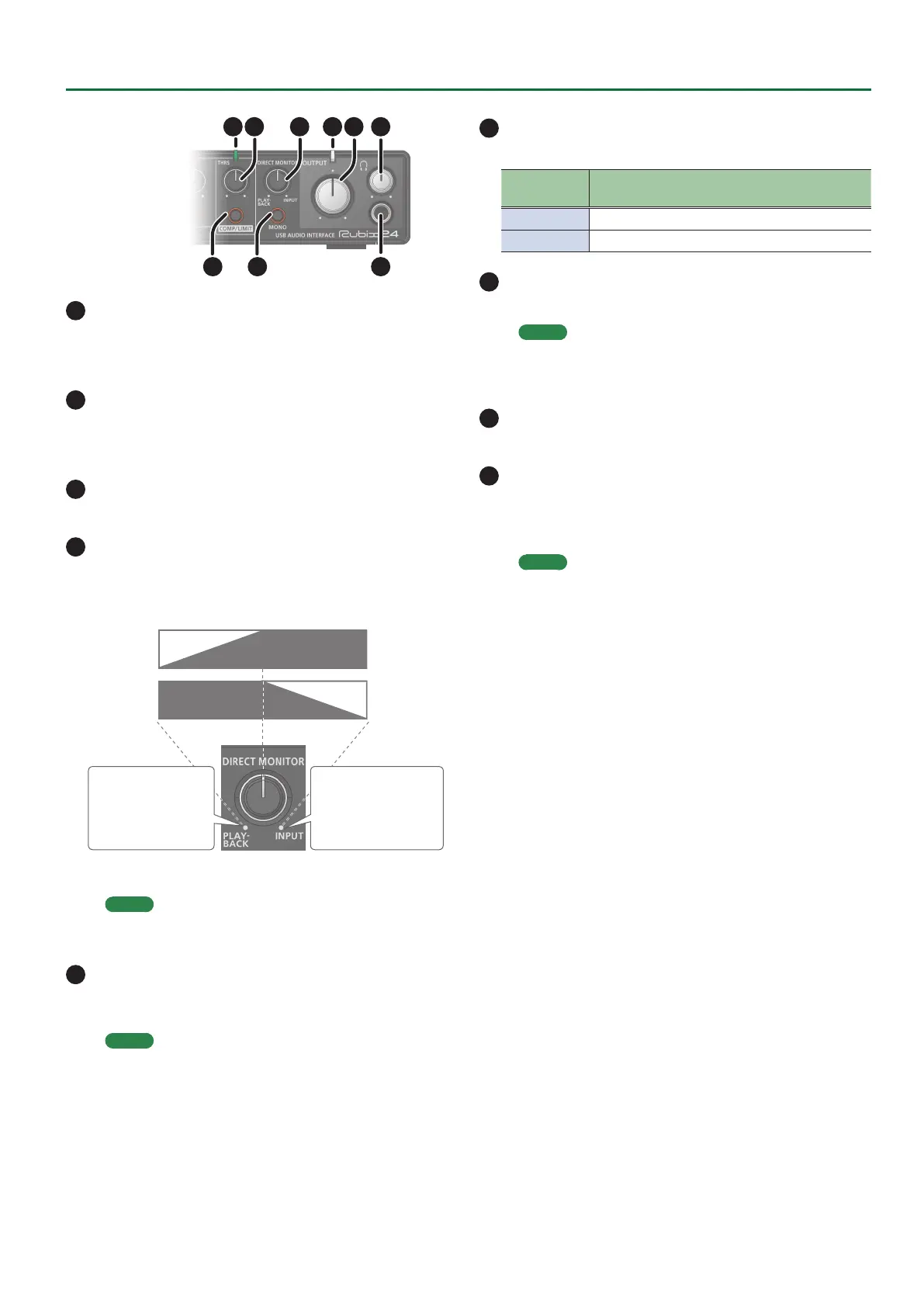

Panel Descriptions
14
1211 13
8 10
7 96
6
Reduction indicator
If the [COMP/LIMIT] button is turned on, this indicator is lit red
when the audio input signal exceeds the level specied by the
[THRS] knob.
7
[THRS] knob
Species the level at which the compressor or limiter will begin
operating. As you turn this knob toward the right, the compressor
or limiter will be applied more deeply, producing a thicker sound.
8
[COMP/LIMIT] button
Turns the compressor/limiter on/o.
9
[DIRECT MONITOR] knob
Adjusts the balance of the audio signal that is output to the PHONES
jack and the OUTPUT (1L, 2R) jacks.
PLAYBACK
INPUT
100%
0%
100%
0%
Balance
The audio signal of
the computer that
is connected to the
USB port is output.
The audio signal
that is input to the
INPUT (1L, 2R) jacks
is output.
If you’re using soft monitoring on your DAW, set this to
“PLAYBACK.”
MEMO
Sometimes you might hear noise when turning this knob, but
this is not a malfunction.
10
[MONO] button
If this is turned on, the audio signal that is input to the INPUT (1L, 2R)
jacks is monitored in mono.
MEMO
5 When a guitar or microphone is connected to the INPUT 1L
jack and nothing is connected to the INPUT 2R jack, set the
[MONO] button to “ON.”
5 Even when set to “MONO,” a stereo audio signal is output
from the Rubix24’s USB port.
11
Power indicator
Indicates the status of the connection with a USB device.
Power
indicator
Status
Lit Connected to a computer or iPad.
Unlit Not connected to a computer or iPad.
12
[OUTPUT] knob
Adjusts the output level of the audio signal.
MEMO
Adjusting the [OUTPUT] knob does not change the
volume that is output to the Q (headphones) jack or the
OUTPUT (3L, 4R) jacks.
13
[Q] (Headphone) knob
Adjusts the output level of the Q jack.
14
Q (Headphone) jack
Used to connect headphones.
The audio signal selected by the [PHONES SOURCE] switch is
output.
MEMO
Even if headphones are connected, sound will be output from
the OUTPUT (1L, 2R) and OUTPUT (3L, 4R) jacks.
To Next Page
