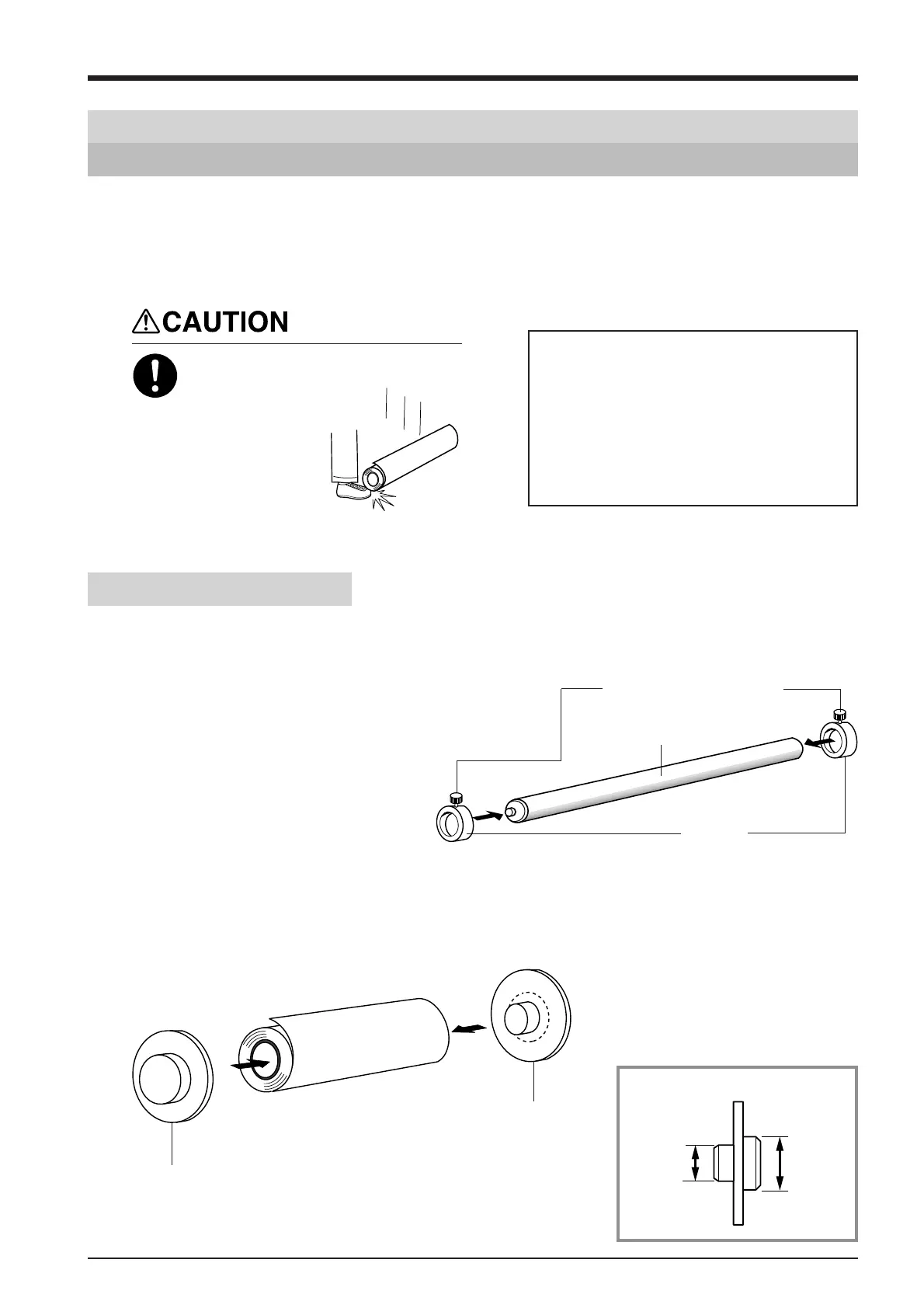

Roll material must be placed at a
predetermined shaft position.
Failure to do so may
result in falling of the
roll, leading to injury.
Acceptable material widths
131 to 1371 mm (5-3/16 to 54 in.)
*However, when loading material with a width
of 131 to 430 mm (5-3/16 to 17 in.), set the
[EDGE SENSE] menu item to [DISABLE].
Pass the stoppers onto both ends of the shaft.
(The shafts (2 pieces), stoppers (2 pieces), and screws
(2 pieces) are included with the stand.)
* When passing the shaft through the stopper,
be sure to loosen the screws on the stopper
first.
1
Loading Roll Material
Attach the media flanges to match the inner diameter of the roll-material core. Insert them firmly, as far as they will go.
(The media flange is included with the stand.)
2
1 Loading the Material
Stopper
Tighten loosely with the screws.
Shaft
Media flange
Media flange
50.8 mm
(2 in.)
76.2 mm
(3 in.)
Setup for Printing
Setup for Printing
Media flange
