Roland SRV-3030

4
May,1999SRV-3030/3030D
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1 2 3 4 5 6 7 8 9 10111213141516171819202122232425262728

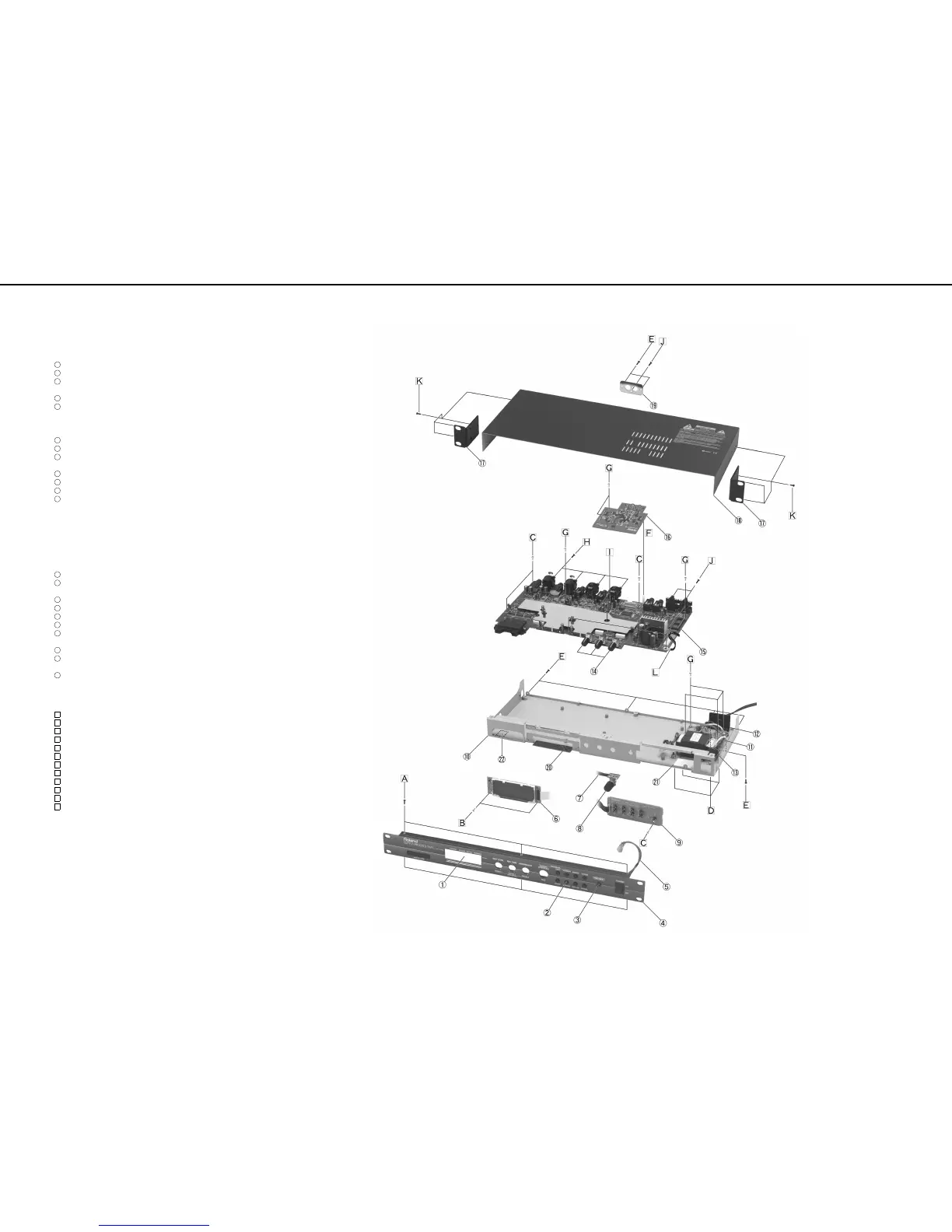

EXPLODED VIEW ／分解図
／分解図／分解図
／分解図
EXPLODED VIEW ／分解図
／分解図／分解図
／分解図
[PARTS]
No.PARTS No. PARTS NAME
01671245 DISPLAY COVER
01670501 F C-KEYTOP SX4H BLK
01670512 F C-KEYTOP SX1H BLK
40230812 NITTO DOUBLE SIDED ADHESIVE TAPE #541 10x10
01671212 FRONT PANEL
01897412 POWER SWITCH AJ76200B
12339355 SWITCH COVER 721128-18
01897890 WIRING1 2P L210 AWG20 (for POWER SWITCH)
40016512 INSYULOK TIE 80M/M T-18S
01671312 LCD UNIT RCM6043T-B
******** ENC BOARD ASSY
00344578 ROTARY ENCODER EC11B1524209 L1=15
22485307 M R-KNOB 248-307 L BLK
******** SWITCH BOARD ASSY
01671223 BOTTOM CHASSIS
******** PS BOARD ASSY
13439801Y0 AC CORD 100V DP-360-J06 VFF2P
13439836D0 AC CORD 120V UP-882-J03 SJT2P 18AWG/105
13499176F0 AC CORD 220V EP-474-E31 H03VVH2-F 2P
13499208D0 AC CORD 240VA SP-856-J12 ES-206-75HMA 2P
12369533 CORD BUSHING KF-41
(for 100V/230VE/230EU/240VA)
12369532 CORD BUSHING KR-61 (for 117V)
00456567 CORD HOLDER (for 100V/230VE/230EU/240VA)
00458767 CORD HOLDER (for 117V)
01780001 UNIVERSAL PWR TRANS
00783045 11M/M ROTARY POT. RK11K112 10KB
22485188 M R-KNOB MF BLK
71230478 MAIN BOARD ASSY
71236745 DIG. I/O BOARD ASSY (for SRV-3030D)
22123568 1U RACK MOUNT ANGLE
01671234 TOP COVER
01671301 EXP COVER (for SRV-3030)
01786734 EXP PANEL (for SRV-3030D)
40122612 NITTO ACETATE TAPE #5 BLACK W10MM 30M 20P
40233501 CAUTION LABEL (for 100V)
40017089 CAUTION SEAL CSA COVER (for 117V)
22350313 FOOT MKS 235-313
[SCREW]
No.PARTS No. PARTS NAME
40015967 SCREW M3x6 FLAT TAPTITE S BZC
40239290 SCREW M2.6x8 W-SEMS WITH SMALL WASHER ZC
40012512 SCREW M3x6 BINDING TAPTITE S ZC
40011745 HEX NUT M4 W/SPRING WASHER FECM ZC
40342578 SCREW M3x6 BINDING TAPTITE S BZC
01786745 PWB SPACER MDLSP1-20M-01 (for SRV-3030D)
40013056 SCREW M3x6 PAN MACHINE W/SW+SMALL PW ZC
40233012 SCREW M2.6x8 BINDING TAPTITE FEBZC
01904912 BOSS NUT M3/20/5.5 (for SRV-3030D)
40011312 SCREW M3x8 BINDING TAPTITE P FE BZC
40011378 SCREW M4x8 BINDING TAPTITE S FE BZC
40017356 COATING CLIP CS-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2
0
21
22
A
B
C
D
E
F
G
H
I
J
K
L
