Roland SRV-3030 Service Notes

3
May,1999 SRV-3030/3030D

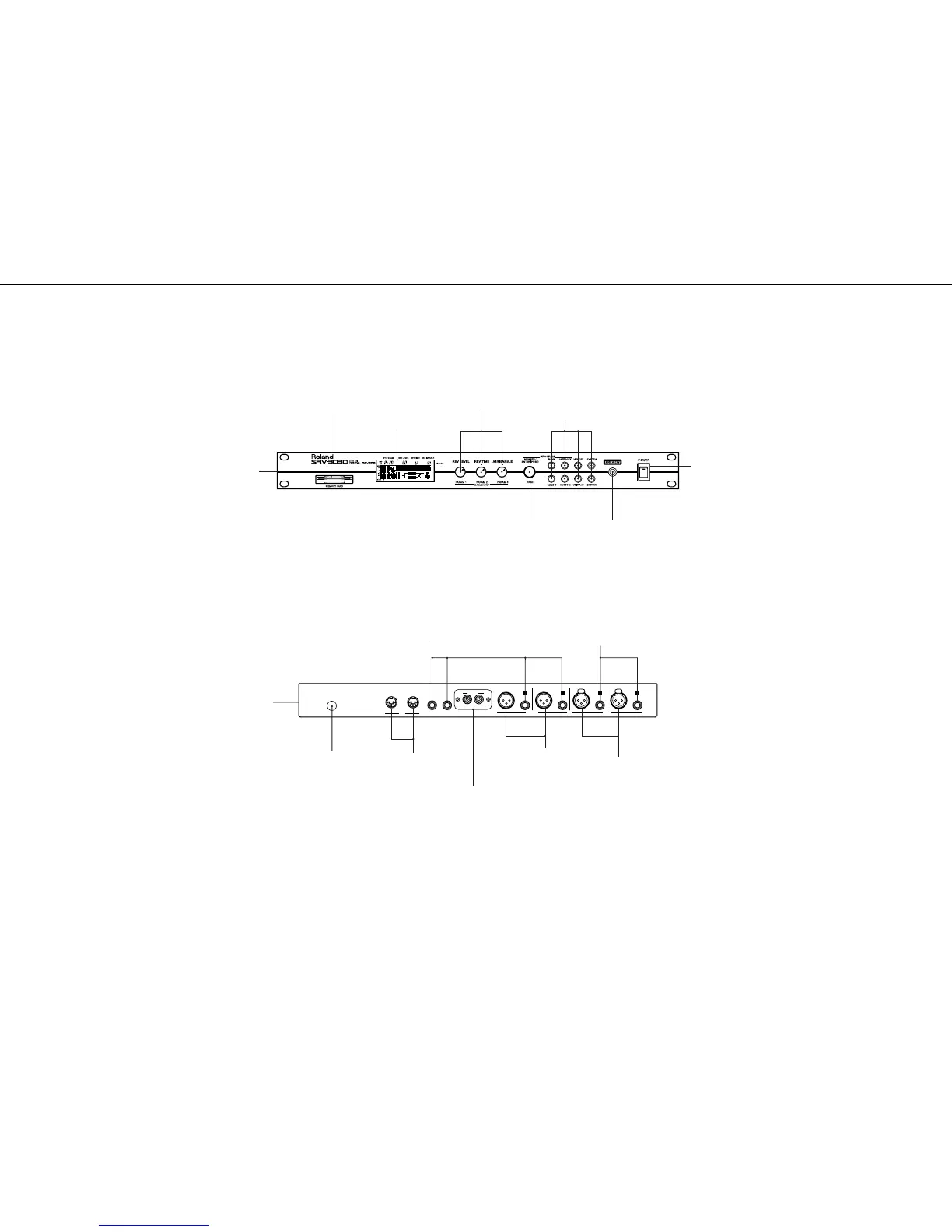

LOCATION OF CONTROLS ／パネル配置図
／パネル配置図／パネル配置図
／パネル配置図
FRONT PANEL
(01671212)
SWITCH COVER 721128-18
(12339355)
POWER SWITCH AJ76200B
(01897412)
F C-KEYTOP SX1H BLK
(01670512)
TACT SWITCH SKQNAD
(00894656)
TACT SWITCH SKQNAD
(00894656)
F C-KEYTOP SX4H BLK
(01670501)
ROTARY ENCODER
EC11B1524209 L1=15
(00344578)
M R-KNOB 248-307 L BLK
(22485307)
11M/M ROTARY POTENTIOMETER
RK11K112 10KB
(00783045)
M R-KNOB MF BLK
(22485188)
DISPLAY COVER
(01671245)
LCD UNIT RCM6043T-B
(01671312)
ESCUTCHEON
(01786712)
INPUT
OUTPUT
A
B
FOOT SW
EXP PEDAL
DIGITAL
OUT IN
THRU/ OUT
IN
MIDI
AC
B A
:
COLD3
:
HOT
2
:
GND
1
6.5MM JACK YKB21-5006
(STEREO W/SW)
(13449252)
BOTTOM CHASSIS
(01671223)
AC CORD 100V
DP-360-J06 VFF2P
(13439801Y0)
AC CORD 117V
UP-882-J03
SJT2P 18AWG/105
(13439836D0)
AC CORD 230VE/230VEU
EP-474-E31 H03VVH2-F 2P
(13499176F0)
AC CORD 240VA SP-856-J12
ES-206-75HMA 2P
(13499208D0)
MIDI CONNECTOR
2P YKF51-5048
(13429676)
6.5MM JACK LGR4609-7100
(00569278)
RCA PIN JACK (for SRV-3030D)
YKC21-3044 (PIN 0/0)
(00458801)
EXP PANEL (for SRV-3030D)
(01786734)
EXP COVER (for SRV-3030)
(01671301)
XLR JACK NC3MAH
(00679767)
XLR JACK NC3FAH-1
(00679778)
FRONT VIEW
REAR VIEW
