Roland TD-12 Manual

5
TD-12

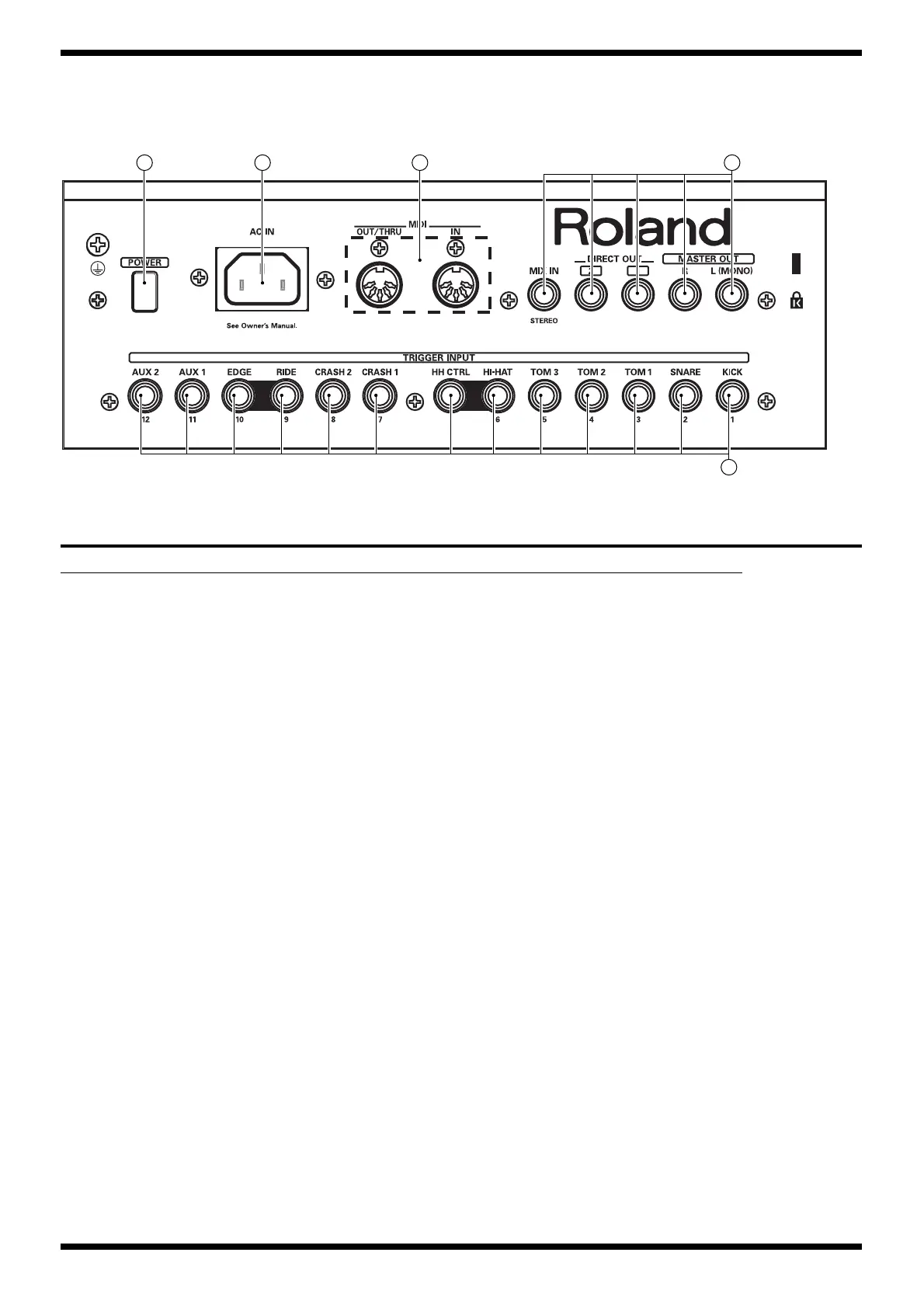

fig.TD12-rear.eps
LOCATION OF CONTROLS PARTS LIST
No PART CODE PART NAME DESCRIPTION Q’TY
1 03891990 CASING TOP PANEL 1
2 03891867 CASING DISPLAY COVER 1
03230690 DISPLAY UNIT LCD SCLCMEAMNI0065 1
3 03891878 CASING LED COVER 1
01342534 DISPLAY UNIT LED 7 SEGMENT SL-9351S 1
4 03125589 KNOB,BUTTON M R-KNOB MF-ELA BLK/LCG 3
01230034 POTENTIOMETER 12M/M ROTARY POTENTIOMETER EVJ Y15 F01 B14 3
5 03891901 MISCELLANEOUS PANEL SHEET 1
6 22485303 KNOB,BUTTON D R-KNOB(ALPHA-DIAL) L BLK 248-303 1
01905467 ENCODER ROTARY ENCODER EVE GC1 F20 24B 1
7 03891989 KNOB,BUTTON RUBBER SW 1
03891923 CASING RUBBER SW ESCUTCHEON 1
8 13129734 SWITCH SWITCH(PUSH) SKHCAD 2
9 03453845 CASING D S-ESCUTCHEON SX4H-A BLK L=30 1
10 03891934 CASING D S-ESTC SX2H-A BLK L=30 1
11 22485295 KNOB,BUTTON D S-KNOB S BLK/LCG 6
13339467 POTENTIOMETER POTENTIOMETER(SLIDE) EWA-NFEX10B14 10KB 6
12 00127367 DIODE LED (RED/GREEN) SPR-39MVW 1
13 00785856 DIODE LED SLR-342VR3F 2
14 02674234 KNOB,BUTTON F C-KEYTOP SX1H-A BLK 6
01340290 SWITCH TACT SWITCH EVQ11A H=5.0 6
15 02674212 KNOB,BUTTON F C-KEYTOP SX3H-A CLR 2
01787045 DIODE LED (ORANGE) SLR-325DCT31 4
00560745 DIODE LED (GREEN) SLR-325MCT31 1
00348490 DIODE LED (RED) SLR-325VCT31 1
01340290 SWITCH TACT SWITCH EVQ11A H=5.0 6
16 02674267 KNOB,BUTTON F C-KEYTOP SX3H-A BLK 2
01340290 SWITCH TACT SWITCH EVQ11A H=5.0 6
17 02674190 KNOB,BUTTON F C-KEYTOP SX1H-A CLR 1
01787045 DIODE LED (ORANGE) SLR-325DCT31 1
01340290 SWITCH TACT SWITCH EVQ11A H=5.0 1
18 02013090 KNOB,BUTTON F C-KEYTOP MX1H CLR 2
01787045 DIODE LED (ORANGE) SLR-325DCT31 1
00560745 DIODE LED (GREEN) SLR-325MCT31 1
01340290 SWITCH TACT SWITCH EVQ11A H=5.0 2
19 02123467 KNOB,BUTTON F C-KEYTOP MX1H BLK 1
01340290 SWITCH TACT SWITCH EVQ11A H=5.0 1
20 03892001 KNOB,BUTTON F C-KEYTOP SX3H-A GRS 1
01787045 DIODE LED (ORANGE) SLR-325DCT31 3
01340290 SWITCH TACT SWITCH EVQ11A H=5.0 3
21 00569278 JACK,EXT TERMINAL 6.5MM JACK LGR4609-7100 13 +5 +1
22 13429676 JACK,EXT TERMINAL MIDI CONNECTOR YKF51-5048 (TWIN) 1
23 02675701 WIRING, CABLE AC INLET ASSY WIRING W3(AC INLET+GND) 1
24 12499175 KNOB,BUTTON BUTTON JSPUE001A 1
01676512 SWITCH PUSH SWITCH SDKLA10200 1
24 23 22 21
21
[REAR]

Roland TD-12 Specifications

General

Instruments	560
Kits	50 Preset, 50 User
MIDI	In, Out, Thru
Effects	EQ
Trigger Inputs	12
Power Supply	AC Adaptor
Pads	Compatible with Roland V-Drums pads
