6

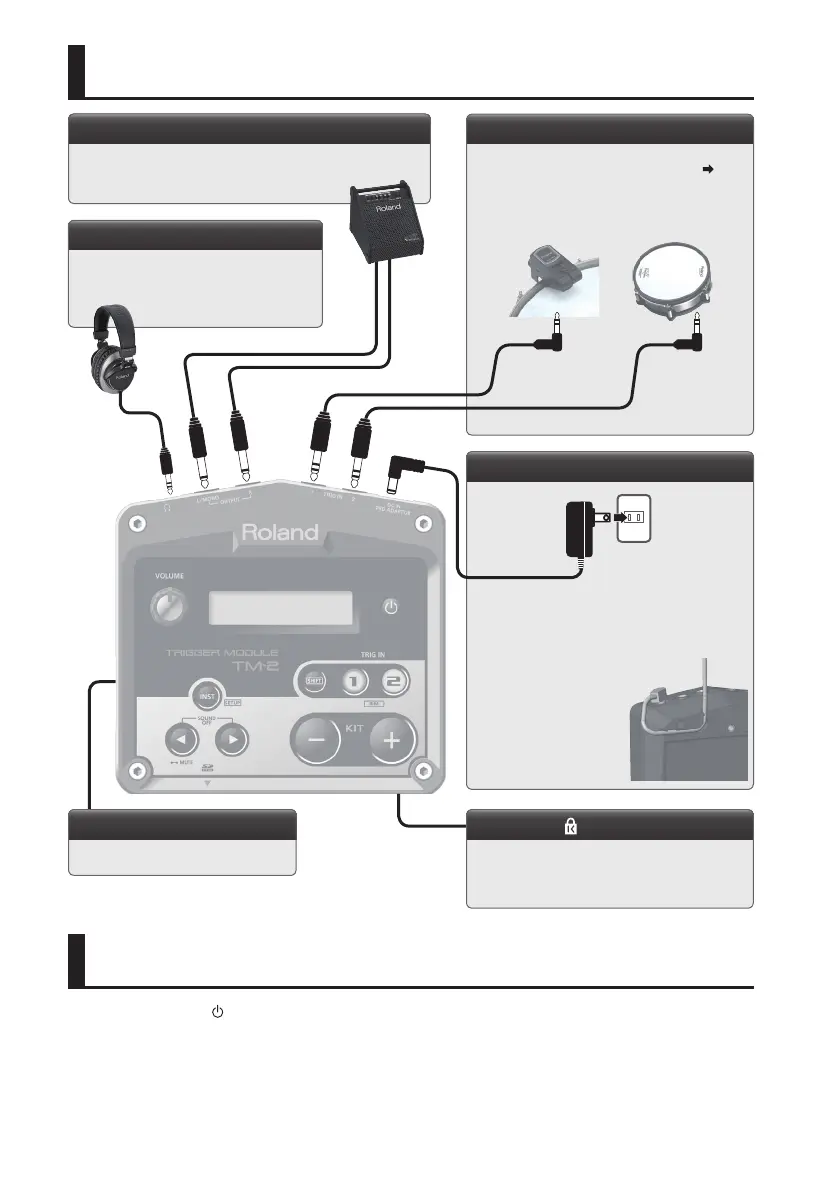

Connecting Your Equipment
Turning the Power On/O
PHONES jack
Connect headphones here.
Even if headphones are connected, sound will
still be output from the OUTPUT jacks.
OUTPUT jacks
These jacks output the sound. Connect them to amplied speakers,
mixers etc. If you’re outputting in monaural, connect only the L/MONO
jack.
DC IN jack
Connect the included AC adaptor here.
If you’re using the unit on battery power, disconnect
the AC adaptor from the DC IN jack.
To prevent the inadvertent
disruption of power to your
unit (should the plug be
pulled out accidentally), and
to avoid applying undue
stress to the DC IN jack,
anchor the power cord using
the cord hook, as shown in
the illustration.
TRIG IN 1, 2 jacks
Connect pads (PD series: sold separately) or acoustic
drum triggers (RT series: sold separately) here. p. 7
MIDI (IN, OUT) connectors
Use these to connect MIDI devices such as
V-Drums.
Security slot ( )
http://www.kensington.com/
Stereo miniature
phone plug
* To prevent malfunction and equipment failure, always turn down the
volume, and turn o all the units before making any connections.
Connection examples
PD-128S
Cables included
with the pad
RT-10S
(Bottom)
1.
Hold down the [ ] (power) button until the power turns on or o.
* After you’ve made connections correctly, be sure to turn on the power in the order of the TM-2 rst, and then the connected
system. Powering-on in the incorrect order may cause malfunctions or damage. When turning the power o, power-o the
connected system rst, and then the TM-2.
* This unit is equipped with a protection circuit. A brief interval (a few seconds) after turning the unit on is required before it will
operate normally.
* Before turning the unit on/o, always be sure to turn the volume down. Even with the volume turned down, you might hear some
sound when switching the unit on/o. However, this is normal and does not indicate a malfunction.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Roland TM-2 and is the answer not in the manual?

Roland TM-2 Specifications

General IconGeneral
Sound Module TypeDrum Trigger Module
Sound EnginePCM
Headphone OutputYes
Sampling Rate44.1 kHz
Number of Trigger Inputs2
InstrumentsDrums, Percussion
EffectsReverb, Delay
StorageSD Card
MIDIMIDI Out
USBYes
Power SupplyAC Adaptor
Weight360 g
Outputs2 (L/MONO, R)
ConnectivityUSB, MIDI
