Roland V-1SDI User Manual

9
Panel Descriptions

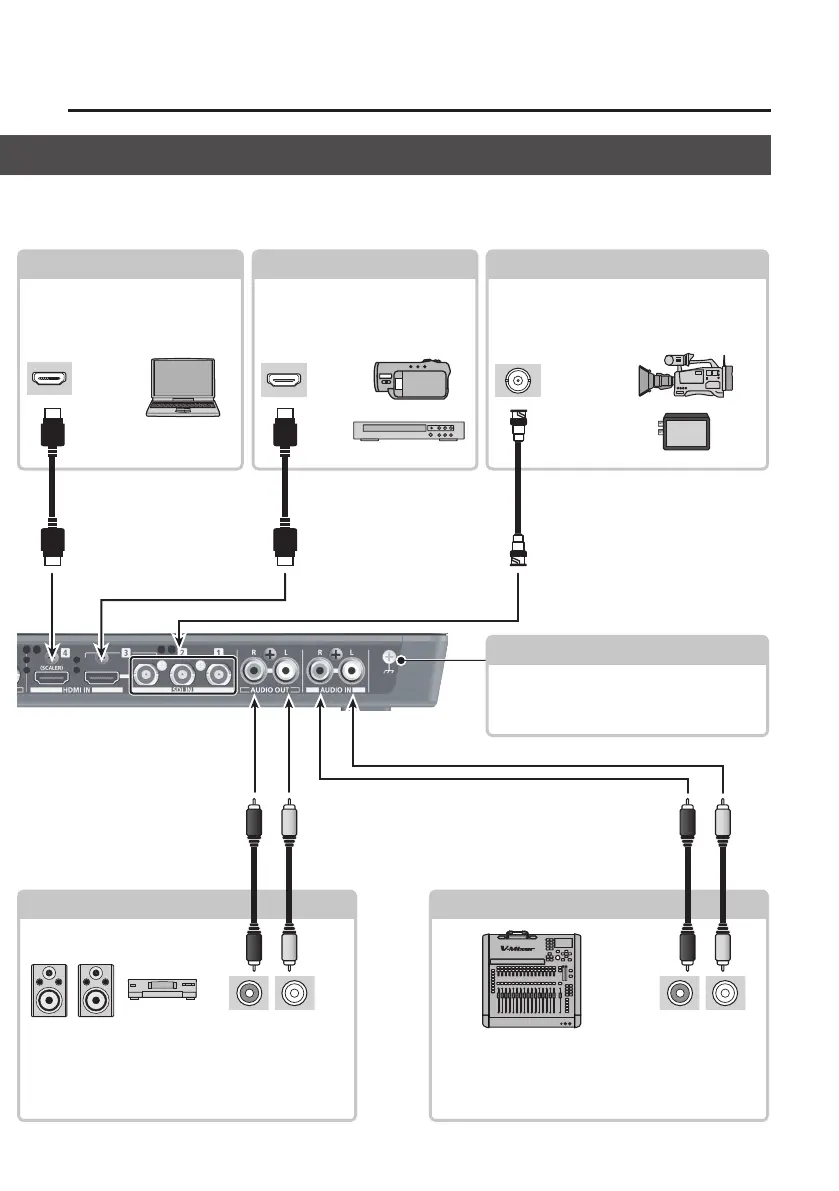

Rear Panel (for Equipment Connections)
AUDIO OUT Jacks
These output the results of the audio mix. Here
you connect an audio recording deck, amplier,
speakers, or other such equipment.
These accept RCA phono type plugs.
Audio input connectors
* The V-1SDI is designed to radiate heat from the entire rear panel. Accordingly, the rear panel might become hot
during use, but this is not a malfunction.
AUDIO IN Jacks
Audio output connectors
These are for incoming audio signals from an audio
mixer, portable music players, or other audio or
video equipment.
These accept RCA phono type plugs.
SDI output
connector
HDMI output
connector
HDMI output
connector
HDMI IN 4 Connector
Here you input the HDMI signal
from a computer, a video camera,
Blu-ray Disc player, or other video
equipment.
HDMI IN 3 Connector
Here you input the HDMI signal
from a video camera, Blu-ray Disc
player, or other video equipment.
SDI IN 1–3 Connectors
Here you input SDI signals from video
cameras, video recorders, and other video
equipment.
p. 14, 15 p. 16
p. 16
Grounding Terminal
You connect this to an external ground.
For details, refer to “Grounding Terminal” in
“IMPORTANT NOTES” (p. 5).

Roland V-1SDI Specifications

General

Interface	USB
Control type	Button, Jog dial, T-bar fader
Product color	Black
Built-in display	No
Built-in keyboard	Yes

Weight and Dimensions

Depth	108 mm
Width	313 mm
Height	59 mm
Weight	1200 g
