Roland Va-3 - Main PCB Assembly and Circuit Diagrams; Main PCB Assembly Overview

A
B
C
D
E
F
G
H
I
L
M
N
O
P
Q
R
S
T
U
J
K
12345678910 12131415161718192021222324252627282930
16
11
VA-3
Jan, 2001
MAIN PCB ASSY ASSY 7770710001
E

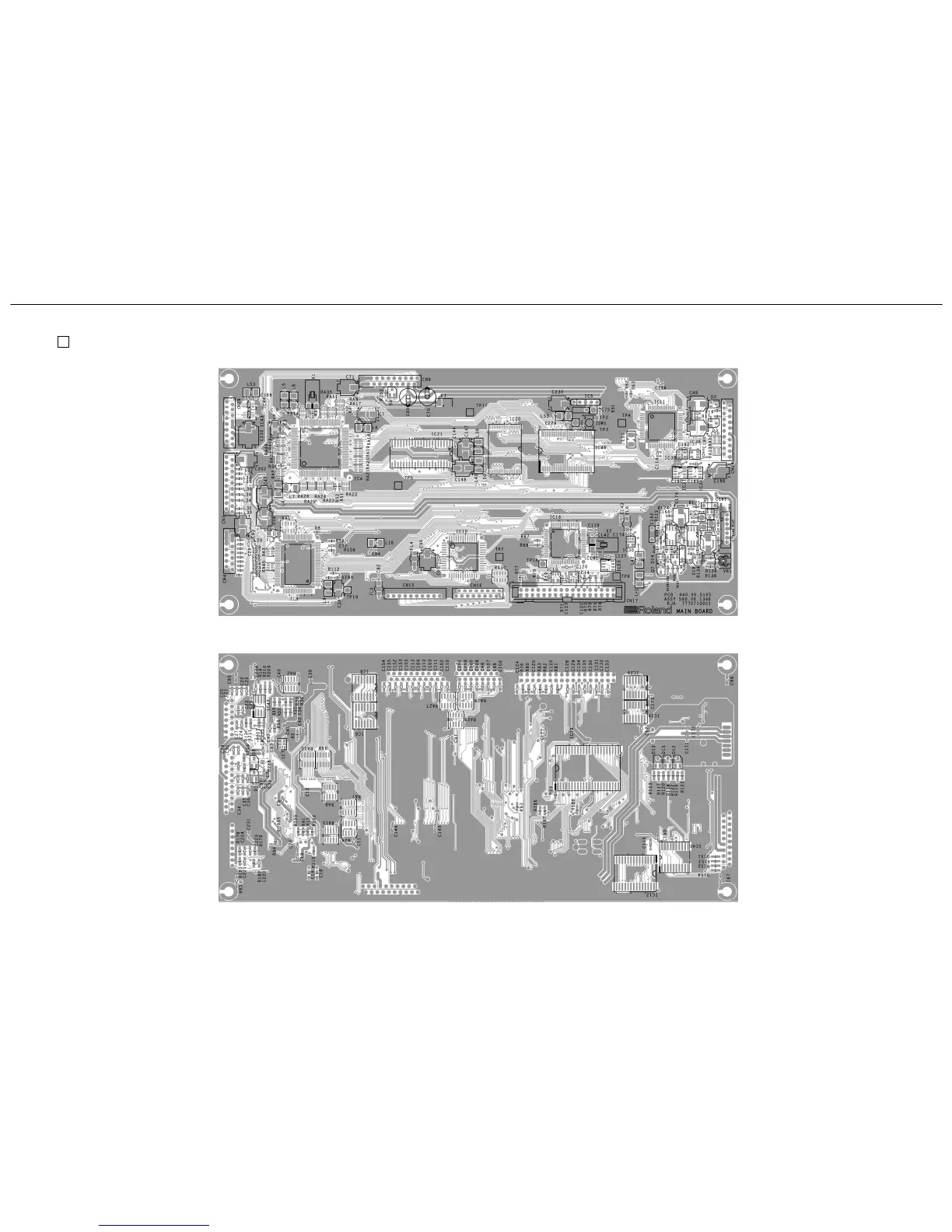

View from component side
View from solder side
