RolliBot RolliCool COOL100H Portable AC with Heater User Manual
2.3 – Control Panel
The COOL 100H features an LED control panel which turns on when the unit turns on and
includes buttons.

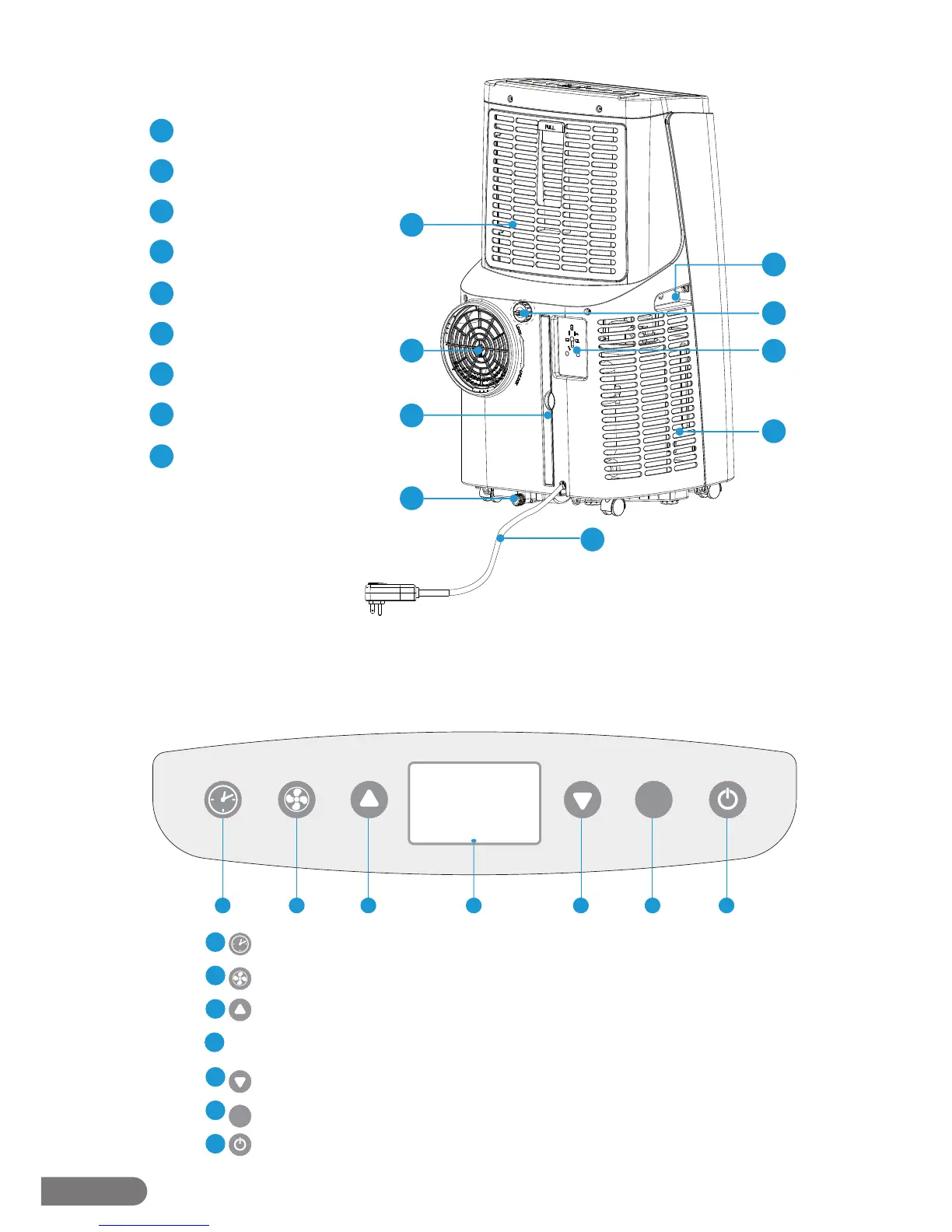

Buttons & Parts
6
7
8
9
10
11
12
13
14
6
Upper Filter
7
Air Vent
8
Lower Filter
9
Lower Drainage Opening
10
Handle
11
Upper Drainage Opening
12
Power Cord Fixture
13
Air Inlet
14
Power Cord
1 2 3 4 5 6 7
1
Timer Button: Press to turn timer mode on or o.
2
Fan Button: Press to turn on fan mode and cycle through 3 fan speeds.
3
Up Button: Press to raise temperature or adjust timer duration.
4
Display: This section will light up to show temperature and other information.
5
Down Button: Press to lower temperature or adjust timer duration.
6
Mode Button: Press to cycle between cool, dehumidify, heat, and fan modes.
7
Power Button: Press to turn the unit on or o.
MODE
MODE
