Room essentials 417087 - Step 2: Cam and Dowel Installation

7
(1F) x 8
hidden cam
(2F) x 8
cam dowel
Do not tighten the HIDDEN CAMS in this step.
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
The arrow in each HIDDEN
CAM must point toward the
edge of the board.
step 2.

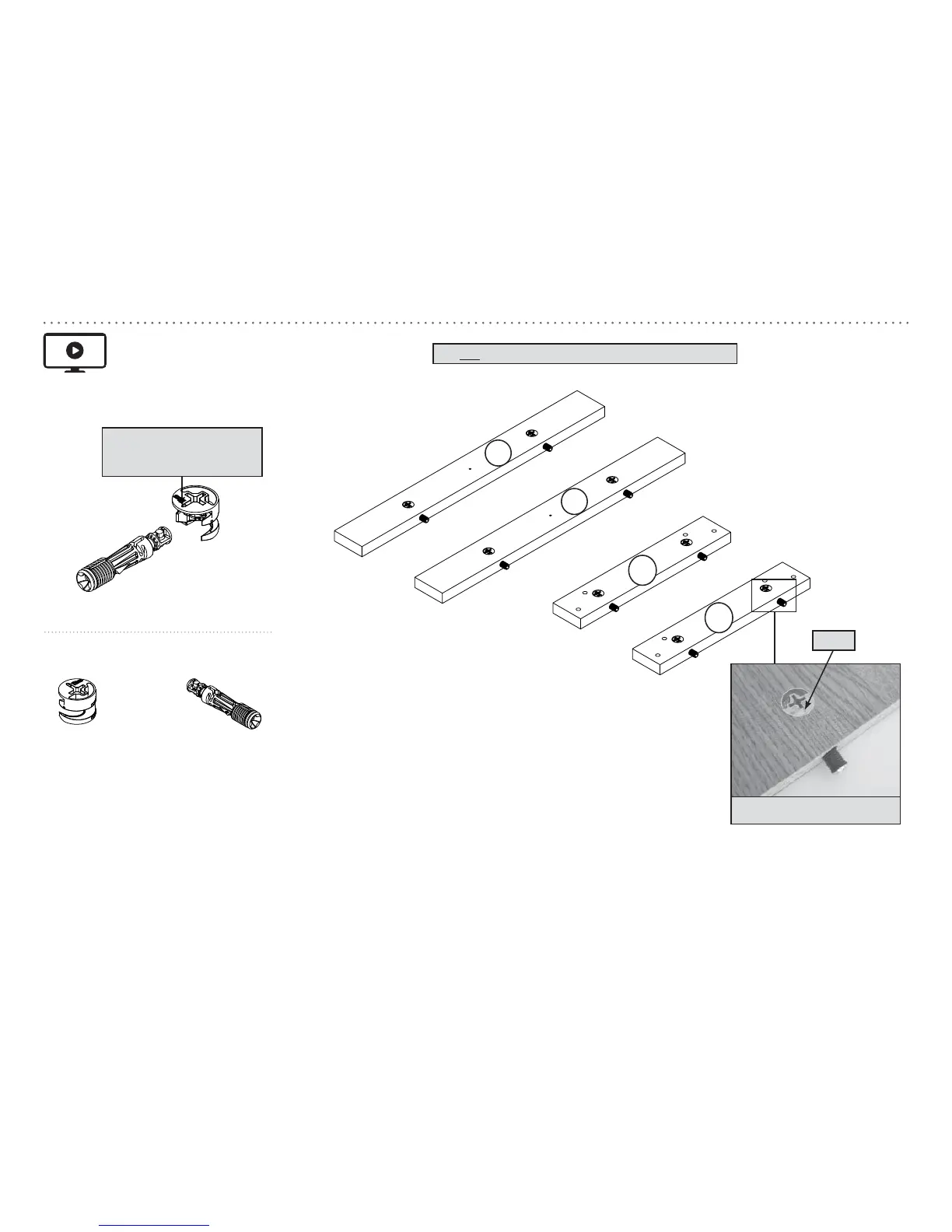

Push eight HIDDEN CAMS (1F) into the SKIRTS (J2 and K). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM.
417087
J2
K
K
J2
