2
I
NSTALLATION
748332-D Rosemount Analytical June 1997
2-1
NGA Non-Dispersive Infrared Analyzer
2.1 UNPACKING
If the NDIR Analyzer Module is received as a separate unit, carefully examine the
shipping carton and contents for signs of damage. Immediately notify the shipping
carrier if the carton or contents is damaged. Retain the carton and packing material
until all components associated with the Analyzer Module are operational.
2.2 ASSEMBLY
If the NDIR Analyzer Module requires assembly with other components (e.g., the
Platform and associated I/O Modules), do so at this time. Following the guides on the
bottom left and bottom center of the Platform, carefully slide the Analyzer Module
halfway into place.
Do not place hands or fingers in the Platform front handles when front panel is
open. Dropping the front panel of the Platform while hand or fingers are inside
either handle can cause serious injury.

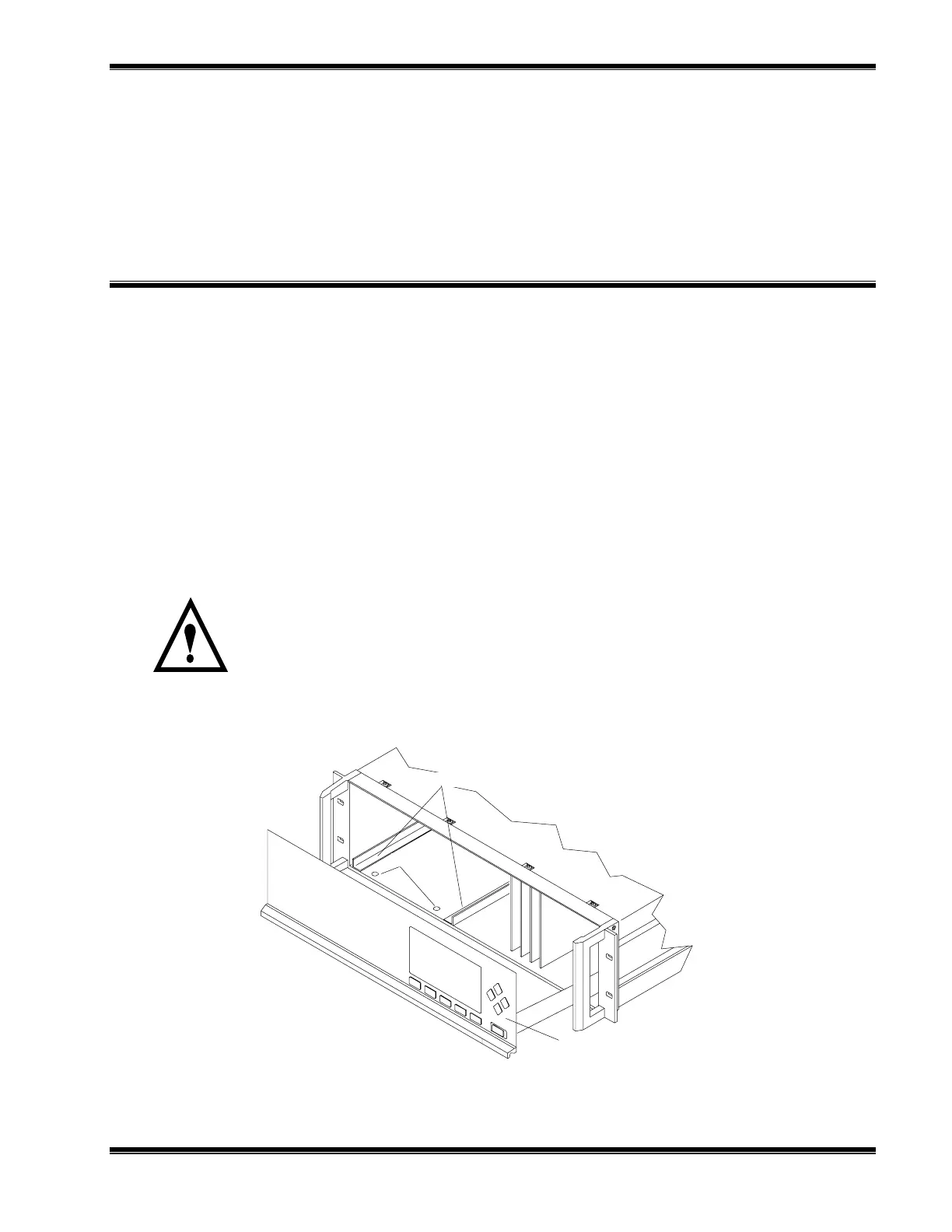

F
IGURE
2-1. A
NALYZER
M
ODULE
I
NSTALLATION INTO
I
NSTRUMENT
P
LATFORM
ANALYZER MODULE GUIDES
PIN SEATS
DISENGAGED FRONT PANEL
CAUTION: HAND INJURY HAZARD
