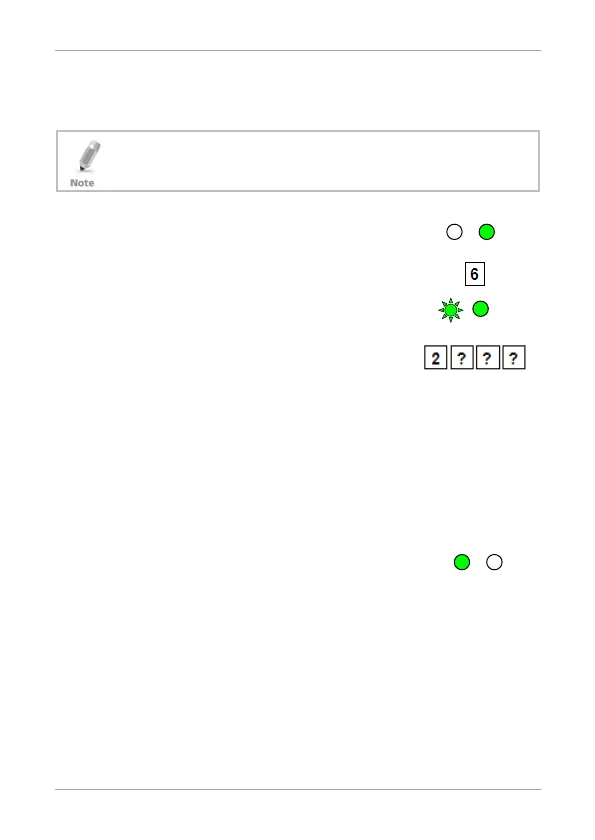

AC-Q4x Series Installation and Programming Manual 37
5.9 Setting Auxiliary Modes
The default auxiliary setting is 2004.
Auxiliary Relay activation is subject to the user’s Auxiliary
code assignment (excluding Shunt, which is activated by all
users). For more details, see Section 5.15.
To set Auxiliary modes:
1. Enter Programming mode.
2. Press 6 to enter Menu 6.
The left LED flashes green.
3. Construct a code using the following
instructions:
 Second digit (Auxiliary Mode)
In addition to the Lock Strike Relay and Lock Strike REX, the
unit features an Auxiliary Input. The Auxiliary mode defines
the function of the Auxiliary Input.
 Third and fourth digits (Auxiliary Setting)
Each of the Auxiliary modes has a 2-digit setting that affects
how the Auxiliary mode functions (Table 3).
You hear three beeps.
The system returns to Normal mode.
