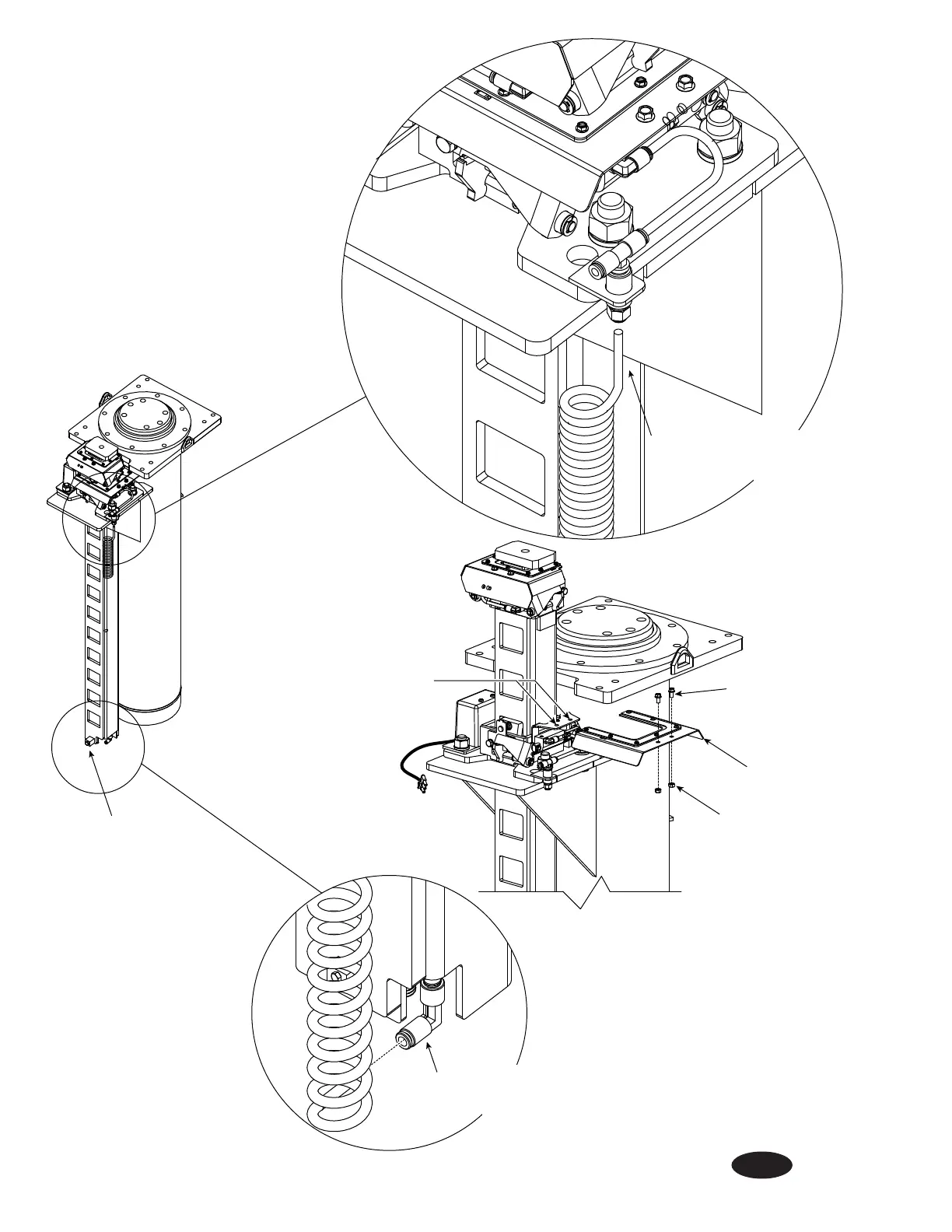

Fig. 6
Step 6: Installing Recoil Air Hoses:
A.) Install recoil air lines per, Fig. 6.
B.) Install second air line guard, Fig. 6.
D. Remember To
Reinstall Stop Blocks
A. Install Recoil Air Line
Into Union Tee
Install
Air Line
Guard
1/4-20NC Hex Nut
Grade 5
1/4-20NC x 1/2"
Flanged Cap Screw
Grade 5
C. Air Line
Guard
Attaches
Here
B. Install Other End Of Recoil Air Line
Into Elbow At Bottom Lock Assembly
