Rotary 100 Series Installation Instructions

5

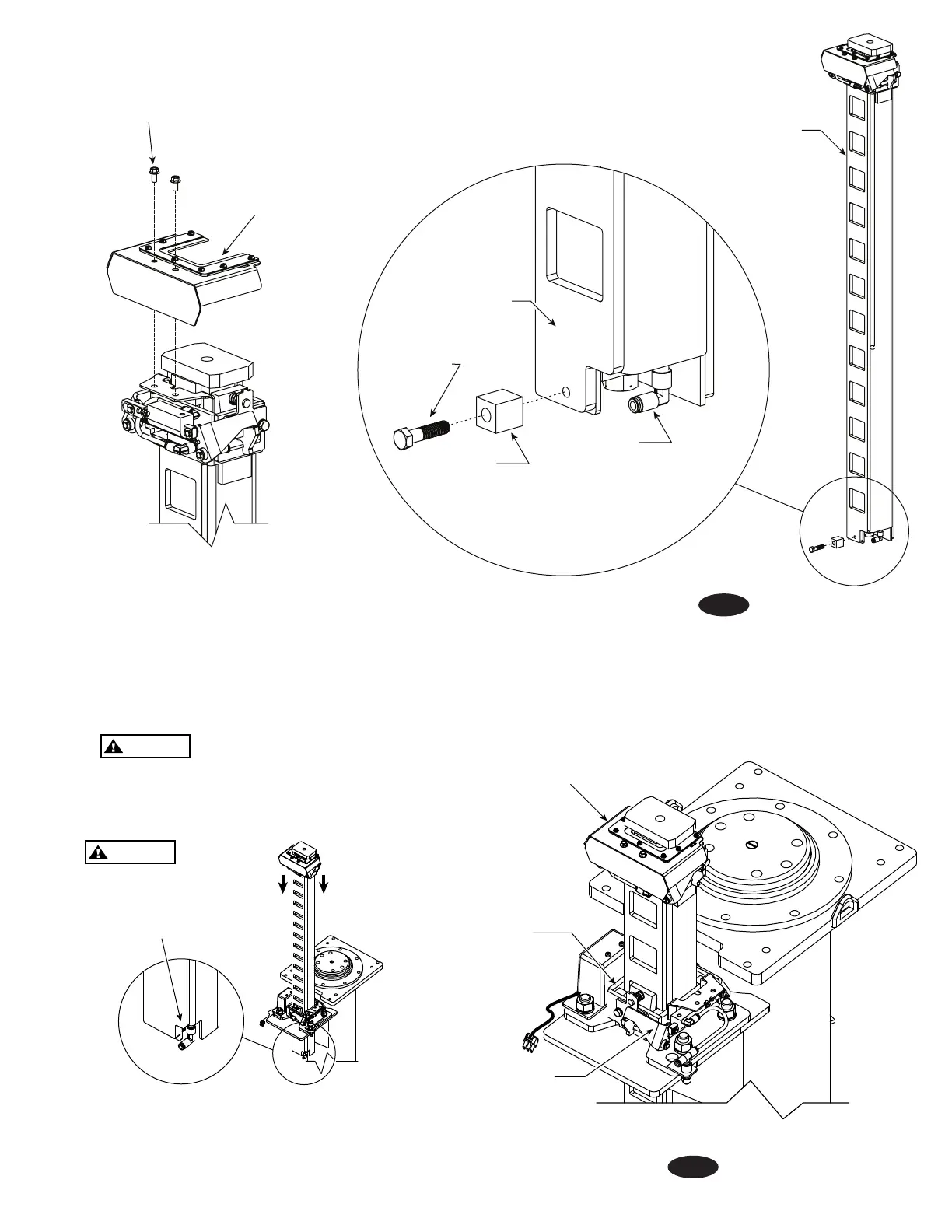

Fig. 5a
Fig. 5
If You Are Lowering
The Lock Assembly
By Hand Be Aware
Of Pinch Points
CAUTION
CAUTION
Make Sure Not
To Damage Elbow
Located On The
Bottom Of Lock Assembly
New
Lock
Assembly
1st.
2nd.
3rd.
Depress Latches
(One On Each Side)
To Allow Lock Assembly
To Move Down Into Locking
Latch Assembly Engage
3rd. Lock From Top
To Avoid Damage Of
Elbow
Lock Assembly
Rests Here
On Latch Assembly
Lock Assembly
Note: When Installing
Lock Assembly The
Elbow For The Air Line
Faces Away From The Post
Bottom of
Lock Assembly
Stop Block
3/8-16 x 1-1/2” Lg .
HHCS Gd. 2
Elbow For
Air Line
1/4-20NC x 1/2"
Flanged Cap Screw
Grade 5
Attach Air Line Guard
To Lock Assembly
