3. The Scissor Lift
3.1 Overview of parts
3

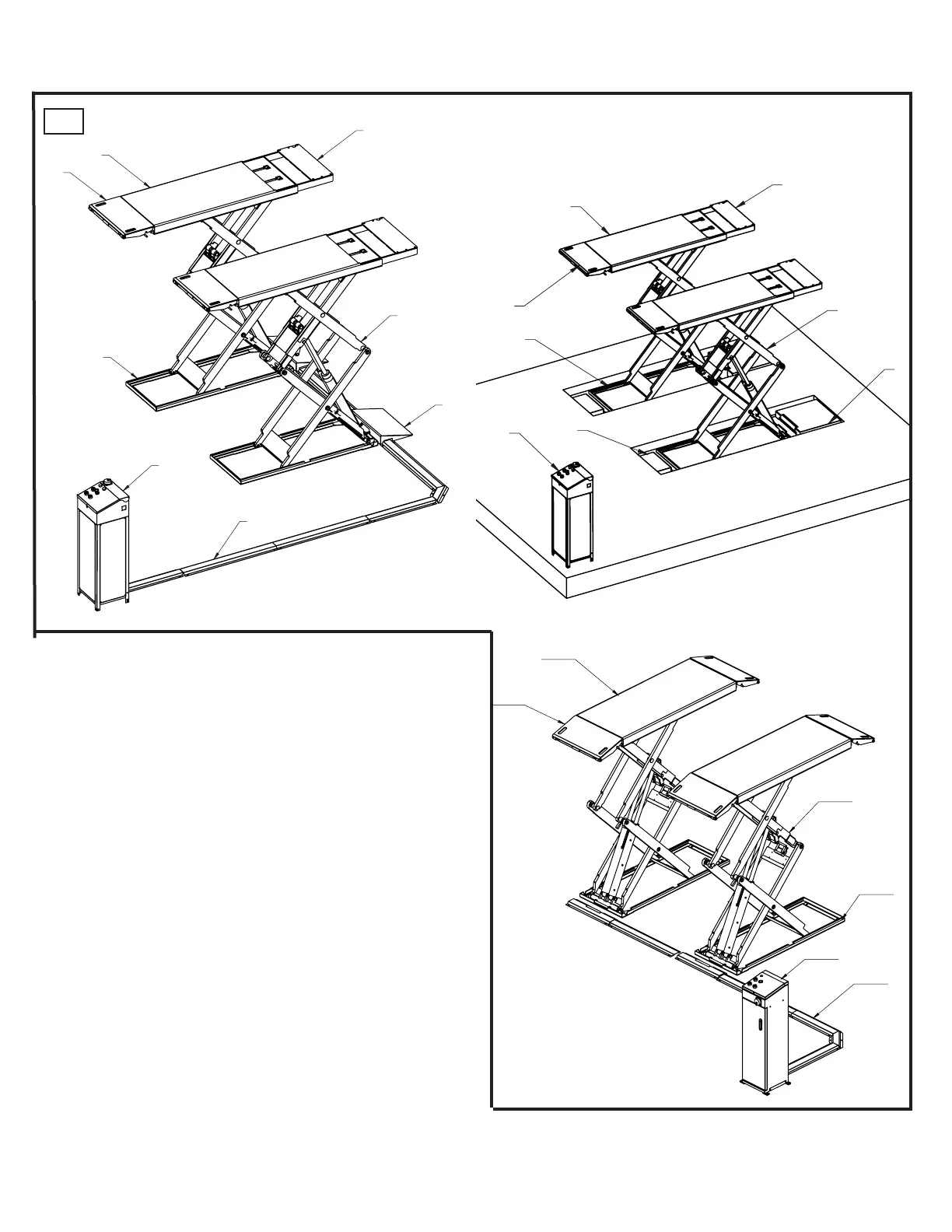

Figure 3: Scissors lift DS35EX/DS35
1. Lifting platform
2. Extesnion beam
3. Ramp
4. Scissors
5. Base frame
6. Ramp
7. Control cabinet
8. Hose Cover
9. Recess Box Kit (Only for Flush Mount
Accessories)
1
2
3
4
7
5
9
9
1
2
3
4
5
6
7
8
DS35EX DS35EX
DS35
1
3
4
5
8
7
*The DS35EX Control cabinet is slightly different in
different market.
