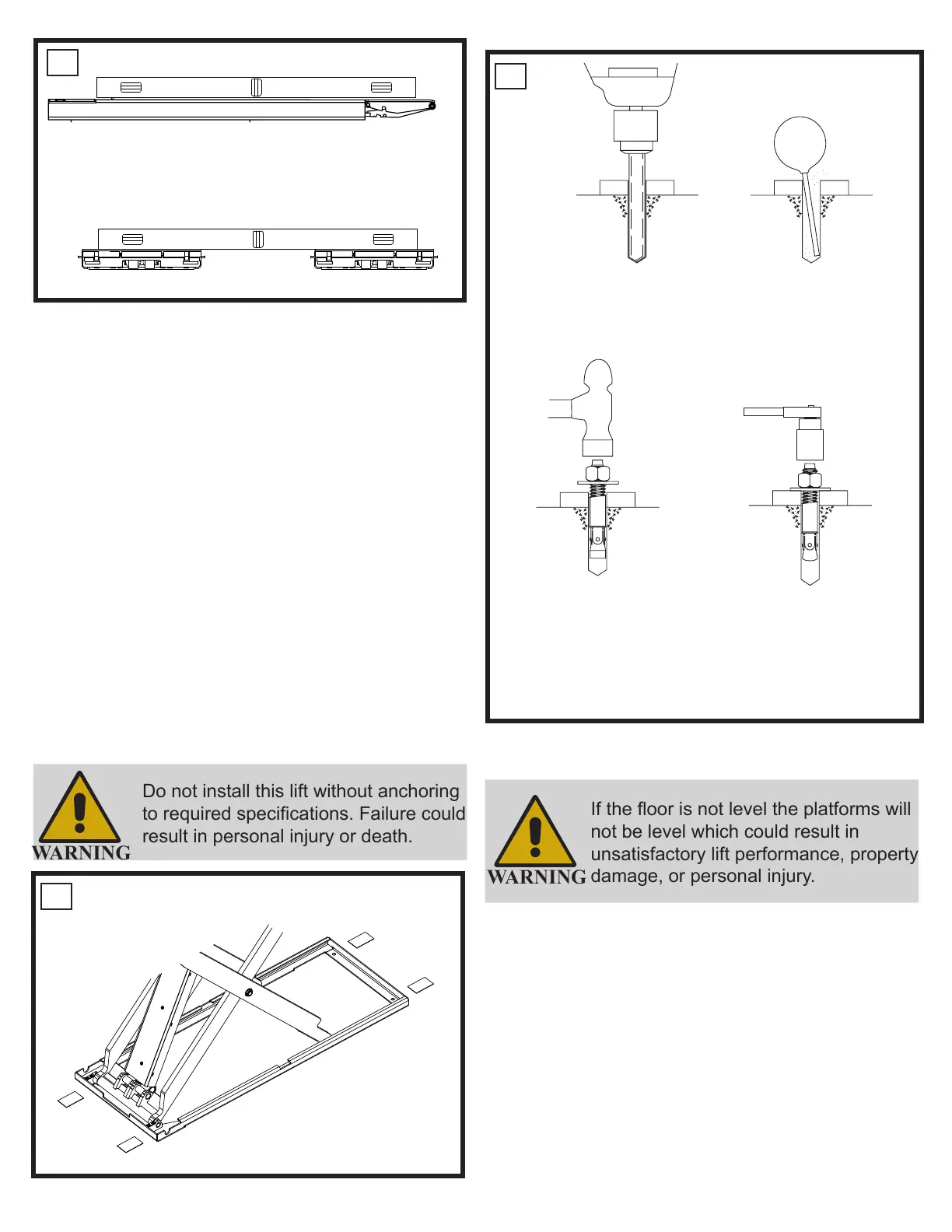

11.8 Anchoring
1. Turn the disconnect switch to “ON” and press the
“UP” button to raise the platforms which provides
room under the platforms for drilling.
2. Concrete shall have a compression strength of at
least C20/25 and a minimum thickness of
160mm.Drill (8) holes with required diameter in
the concrete oor.and install (8) eight lift anchors
loosely. Do not tighten.
3. Complete leveling measurements described
under item number 11.4.
4. Shim as necessary, Fig. 25, and tighten anchors.
5. Grout if necessary.
6. Re-check for levelness.
Do not install this lift without anchoring
to required specications. Failure could
result in personal injury or death.
25
Drill holes using
correct carbide
tipped masonry bit
drill bit.
Clean Hole
Run nut down just below
impact section of bolt.
Drive anchor into hole
until nut and washer
contact base.
Tighten nut with torque
wrench .For chemical
anchor bolts read the
manual of the anchor
manufacturer.
26
If the oor is not level the platforms will
not be level which could result in
unsatisfactory lift performance, property
damage, or personal injury.
