Rotary GEMINI GLP 30 - Hydraulic System Schematic Diagram

15
SCHALTBILD ÖLHYDRAULISCHE ANLAGE
P
T
77
3
2
1
M
RF
5
6
LINEA A
LINEA B
6
5
4
B2
B1
A2
A1
A1 A2
B2 B1
OM-A2
OM-B2
OM-A1
OM-B1

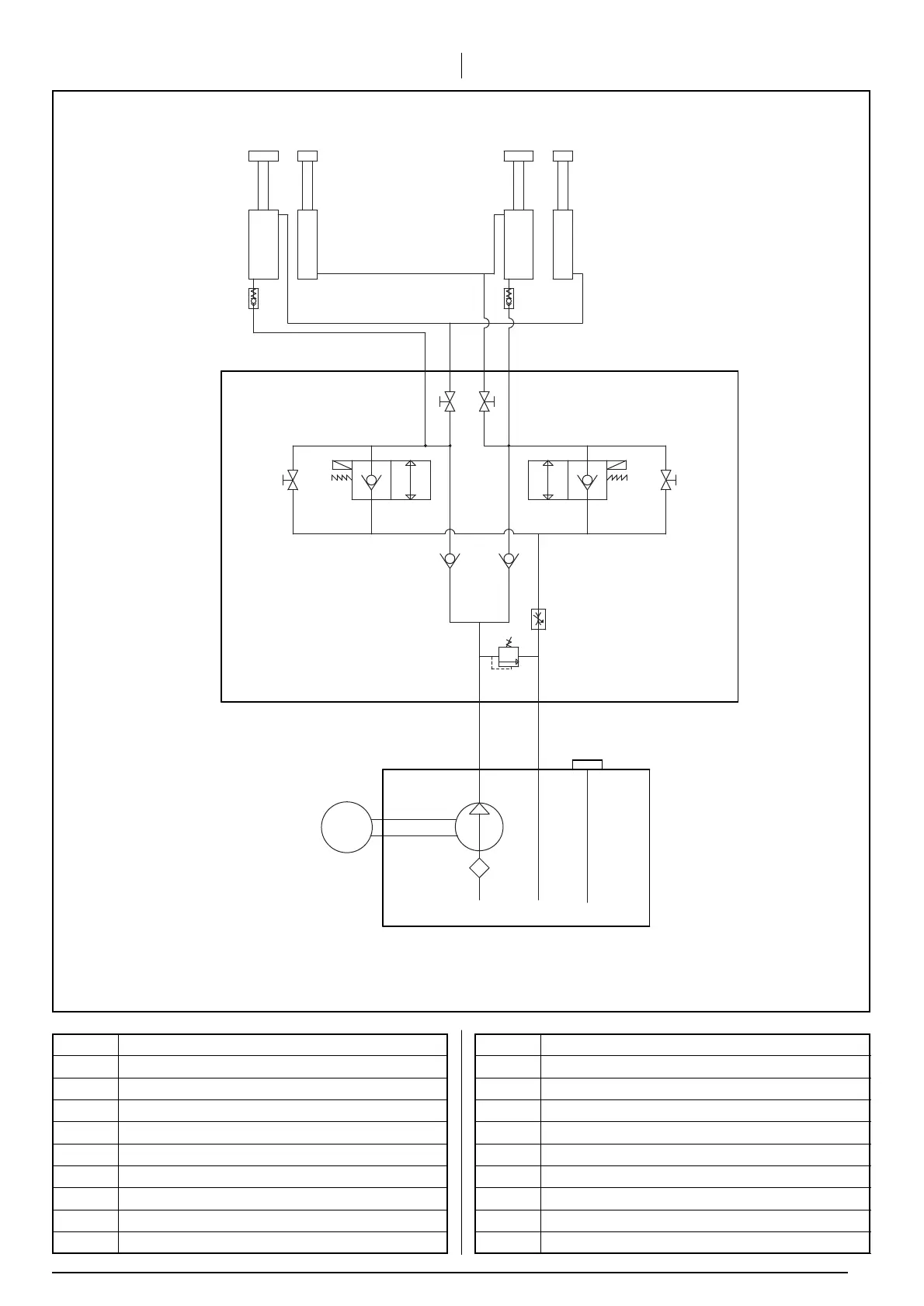

HYDRAULIC PLAN
pict. - Abb. 10
1
2
3
4
5
6
7
OM
RF
M
Ansaugfilter
6,5 Liter Pumpe
Ölmessstab
Maximumventil
Unidirektionalventil
Elektroventil Senken
Fallschirmventil
Handbedienung
Flussregelungsventil
Dreiphasenmotor 3 KW
1
2
3
4
5
6
7
OM
RF
M
Suction filter
6.5l. pump
Oil level dipstick
Full force valve
Unidirectional valve
Lowering electro valve (eo)
Parachute valve
Manual operator
Flow regulator valve
Three phase motor 3 KW
HYDRAULIC BLOCK
HYDRAULIK BLOCK
TANK
TANK
