Rotary SPO16 - Overhead Assembly and Tie Installation

4

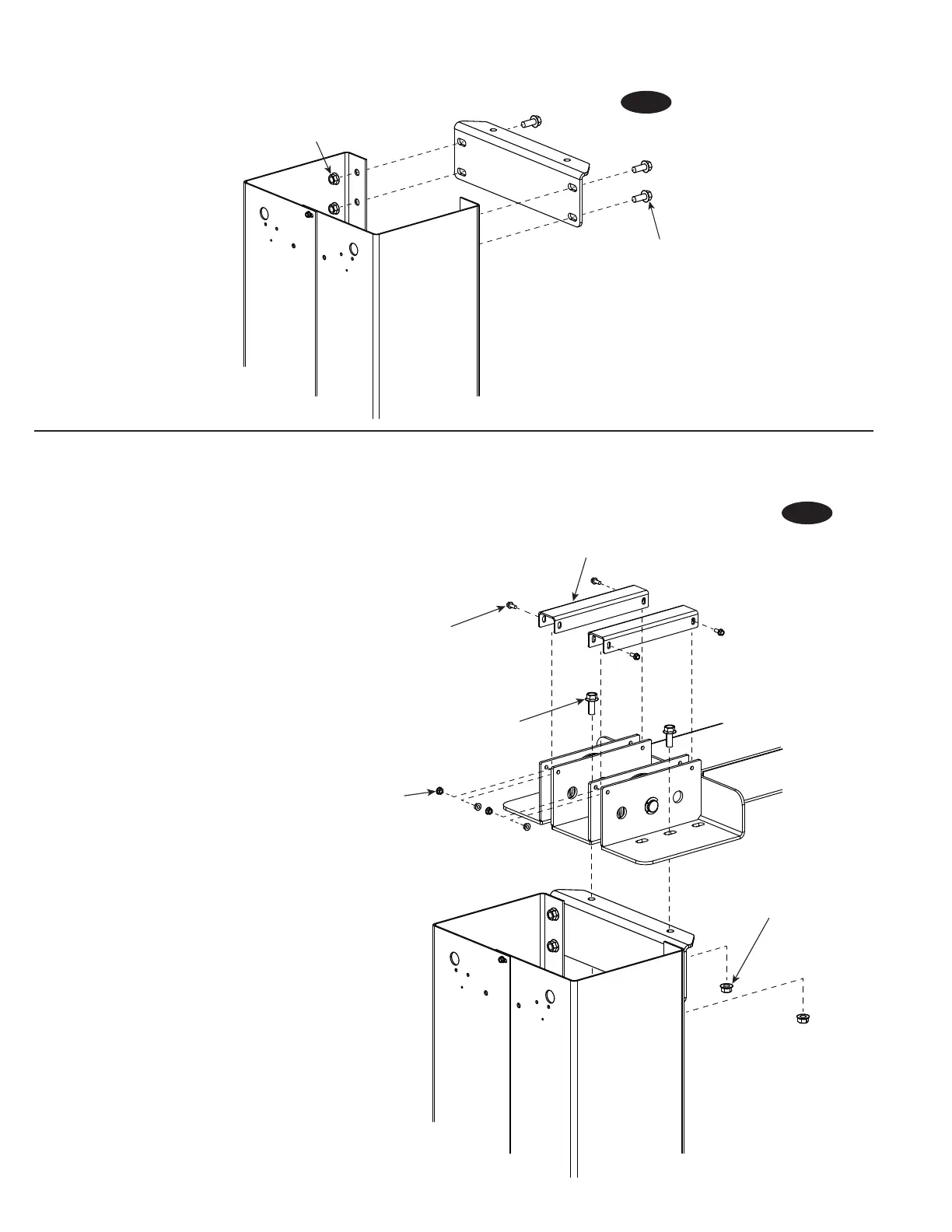

5. Attach Overhead Bracket to column extensions using
(4) 1/2"-13NC x 1-1/4" lg. Flanged HHCS and (4) 1/2"-13NC
Flanged Locknut), Fig. 5.
(2) 1/2”-13NC x 1-1/4” Lg.
Flanged HHCS
(4) 1/4”-20NC x 5/8” Lg.
Flanged HHCS
(2 per cover)
Install Cover Brackets
After Cables have been
Routed And Installed
(2) 1/2”-13NC
Flanged Lock Nut
(4) 1/4”-20NC
Flanged Lock Nut
(2 per cover)
(4) 1/2”-13NC x 1-1/4” Lg.
Flanged HHCS
(4) 1/2”-13NC
Flanged Lock Nut
6. Attach overhead assembly to overhead bracket with
(2) 1/2"-13NC x 1-1/4" lg. Flanged HHCS and (2) 1/2"-13NC
Flanged Locknut. Install (2) cover brackets using (4) 1/4"-
20NC x 5/8" lg. Flanged HHCS (2 per bracket) and (4) 1/4"-
20NC Flanged Locknut (2 per bracket), Fig. 5a.
Notice, the cover brackets cannot be installed until after
cables have been routed and installed, Fig. 15.
Fig. 5
Fig. 5a
