Rotary SPOA10NB Series User Manual

3

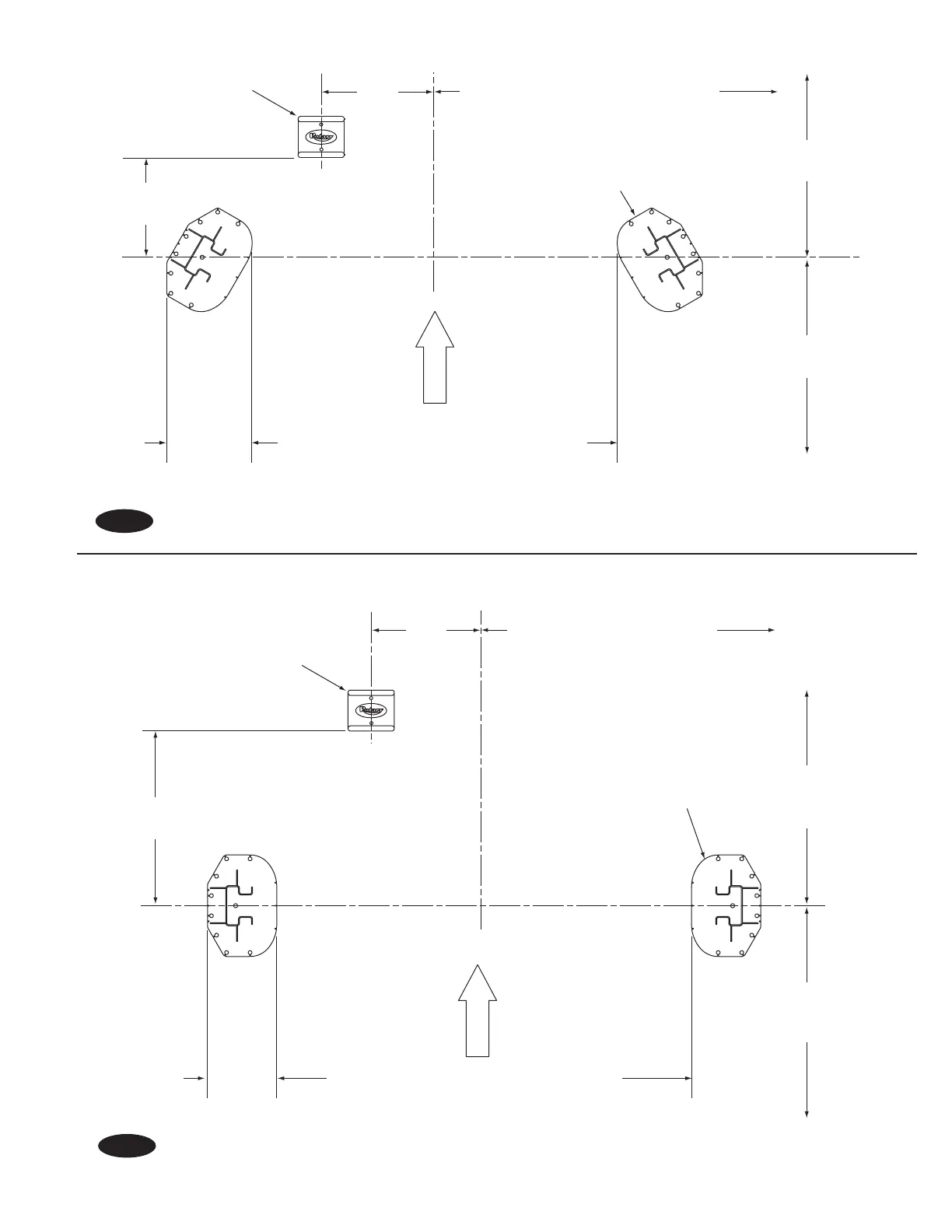

Fig. 1c
Fig. 1d
2' 5"
(737mm)
7' 9-7/8" (2384mm) SPOA10 Seismic Base Plate*
7' 9-7/8" (2384mm) SPOA7 Seismic Base Plate*
21-7/8"
(556mm)
2' 5"
(737mm)
9' 0" (2743mm) minimum
to nearest obstruction
15' 0" (4572mm) minimum
to nearest obstruction
APPROACH
6' 0" (1829mm) minimum to nearest
obstruction or bay. 7' 0" (2134mm)
minimum to nearest wall.
Power Unit Goes
on Passenger Side
Wheel Spotting Dish
*NOTE: Dimension is from Inside of Baseplate to Inside of Baseplate.
4' 3"
(1295mm)
8' 6-1/4" (2597mm) SPO10 Seismic Base Plate*
17-11/16"
(449mm)
2' 5"
(737mm)
6' 0" (1829mm) minimum to
nearest obstruction or bay.
7' 0" (2134mm) minimum to
nearest wall.
11' 0" (3353mm)
minimum to nearest
obstruction
APPROACH
13' 0" (3963mm)
minimum to nearest
obstruction
Power Unit Goes
on Passenger Side
Wheel Spotting Dish
*NOTE: Dimension is from Inside of Baseplate to Inside of Baseplate.

Rotary SPOA10NB Series Specifications

General

Brand	Rotary
Model	SPOA10NB Series
Category	Lifting Systems
Language	English
