Overhead
Hose
Power Unit
(Short) Hose
Crimped Hose
Sleeve (Typical)
Branch Tee
Push nuts hold bolts to brackets.
Fill Breather Cap
Use (4)5/16"-18NC
x1-1/2" lg. Flanged
Locking HHCS
and Nuts
Fig. 9

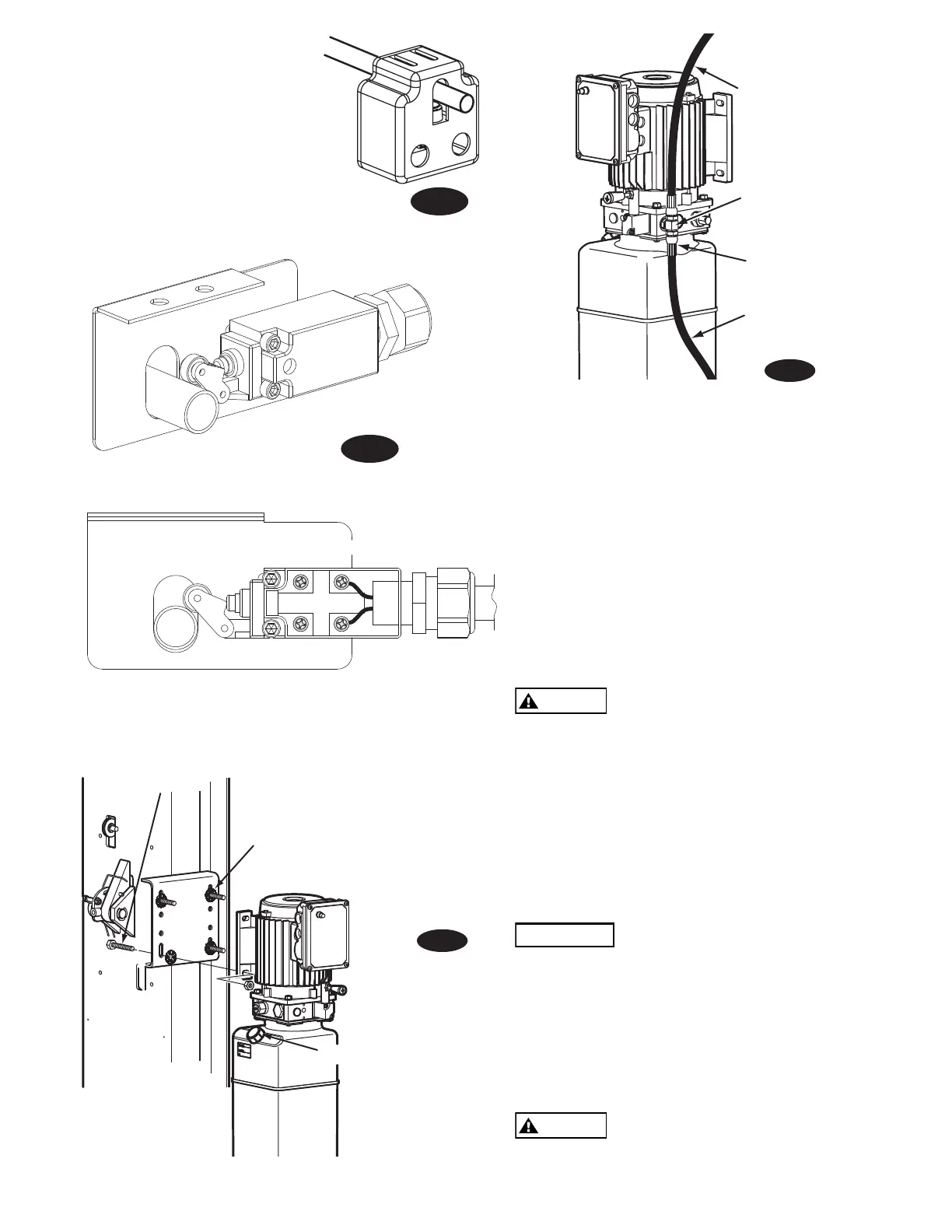

9. Power Unit: Put the (4) 5/16”-18NC x 1-1/2” flanged
Locking HHCS thru holes in power unit bracket using Push-
Nuts to hold in place, Fig. 9. Mount unit with motor up to
column bracket and install (2) 5/16” flanged locking nuts.
Install and hand tighten Branch Tee to pump until O-ring is
seated. Continue to tighten the locknut to 10-15 ft-lbs (14-
20 Nm), or until the nut and washer bottom out against the
pump manifold. NOTE: You may still be able to rotate the
Branch Tee. This is acceptable unless there is seepage at
the O-ring. If so, slightly tighten the locknut.
Over tightening locknut may tear O-ring or
distort threads in pump manifold outlet.
10. Hoses: Clean adapters and hose. Inspect all threads
for damage and hose ends to be sure they are crimped,
Fig. 10. Install hose and hose clamps, Fig. 12 & Fig. 16.
Flared Fittings Tightening Procedure
1. Screw the fittings together finger tight. Then, using the
proper size wrench, rotate the fitting 2-1/2 hex flats.
Flare seat MUST NOT rotate when
tightening. Only the nut should turn.
2. Back the fitting off one full turn.
3. Again tighten the fittings finger tight; then using a
wrench, rotate the fitting 2-1/2 hex flats. This will
complete the tightening procedure and develop a
pressure tight seal.
Overtightening will damage fitting resulting
in fluid leakage.
