Rotel A8 - Page 3

3

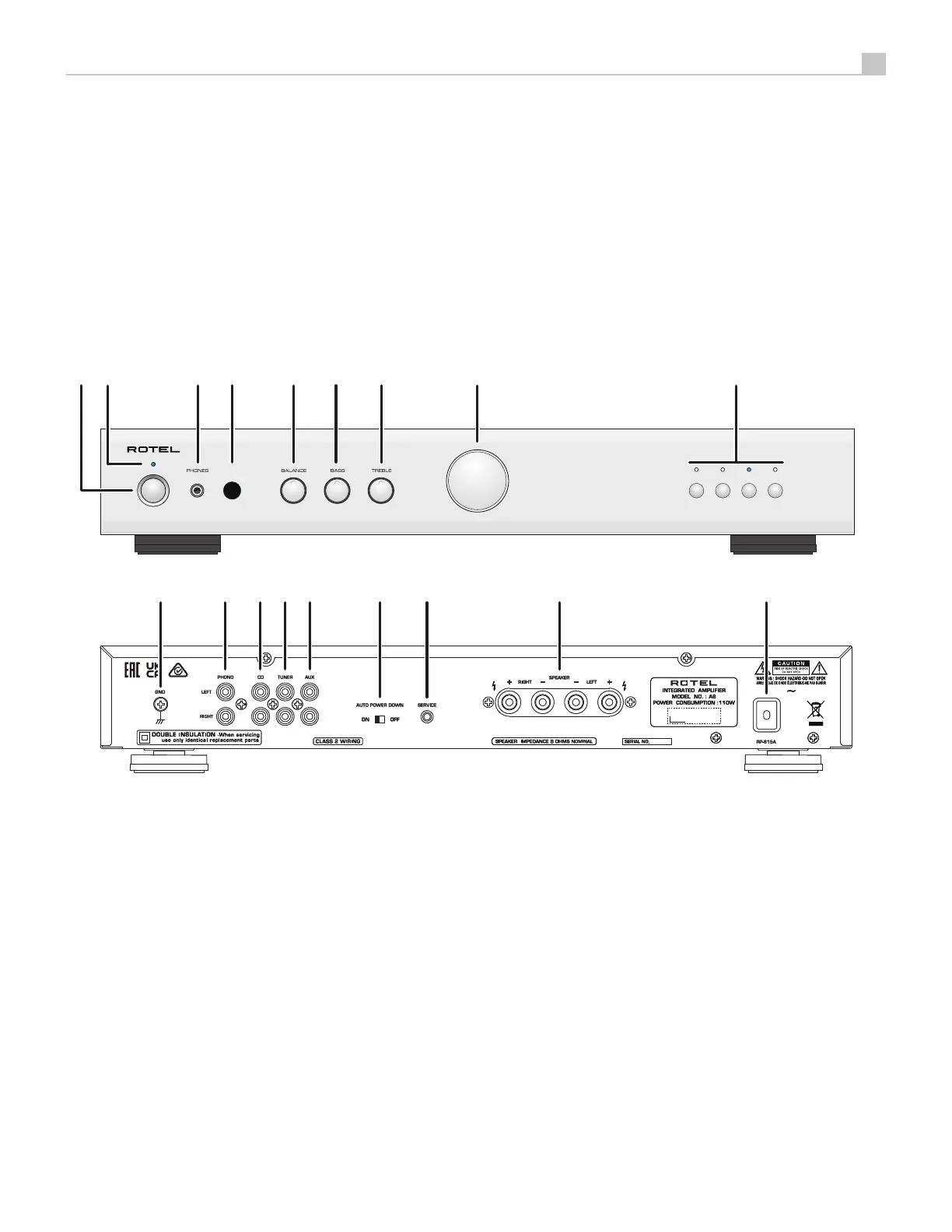

Figure 1: Controls and Connections
Commandes et branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
De bedieningsorganen en de aansluitingen
Controlli e collegamenti
Kontroller och anslutningar
Органы управления и разъемы
A8
PO WER
PHONO TUNER CD
AUX
1
2 3 4 5 6 7 8 9
0 - =qw e r t y
1
: Power Button
Activate the unit or put it into standby
mode.
2
: Power Indicator
3
: Headphone Output
Connect headphones for private listening.
4
: Remote Sensor
Receives IR commands from the remote
control.
567
Balance / Bass / Treble Buttons
Audio Control Buttons.
8
: Volume Knob
Adjust the volume output level.
9
: Source Button
Selects the input signal source.
0
: Ground Connector
Connect with a “ground” wire from the
turntable.
-
: Phono Input
Connect to a turntable.
=qw
: CD / Tuner / Aux Inputs
Analog “line level” inputs.
e
: Auto Power Down Selector
Make the unit go to standby mode or
automatically turn off when there is no
signal or operation.
r
: Service Port
Factory use only service connection.
t
: Speaker Connectors
y
: AC Power Input
3
Figure 1: Controls and Connections
Commandes et branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
De bedieningsorganen en de aansluitingen
Controlli e collegamenti
Kontroller och anslutningar
Органы управления и разъемы
A8
PO WER
PHONO TUNER CD
AUX
1
2 3 4 5 6 7 8 9
0 - =qw e r t y
1
: Power Button
Activate the unit or put it into standby
mode.
2
: Power Indicator
3
: Headphone Output
Connect headphones for private listening.
4
: Remote Sensor
Receives IR commands from the remote
control.
567
Balance / Bass / Treble Buttons
Audio Control Buttons.
8
: Volume Knob
Adjust the volume output level.
9
: Source Button
Selects the input signal source.
0
: Ground Connector
Connect with a “ground” wire from the
turntable.
-
: Phono Input
Connect to a turntable.
=qw
: CD / Tuner / Aux Inputs
Analog “line level” inputs.
e
: Auto Power Down Selector
Make the unit go to standby mode or
automatically turn off when there is no
signal or operation.
r
: Service Port
Factory use only service connection.
t
: Speaker Connectors
y
: AC Power Input
 


  


  

  
