5

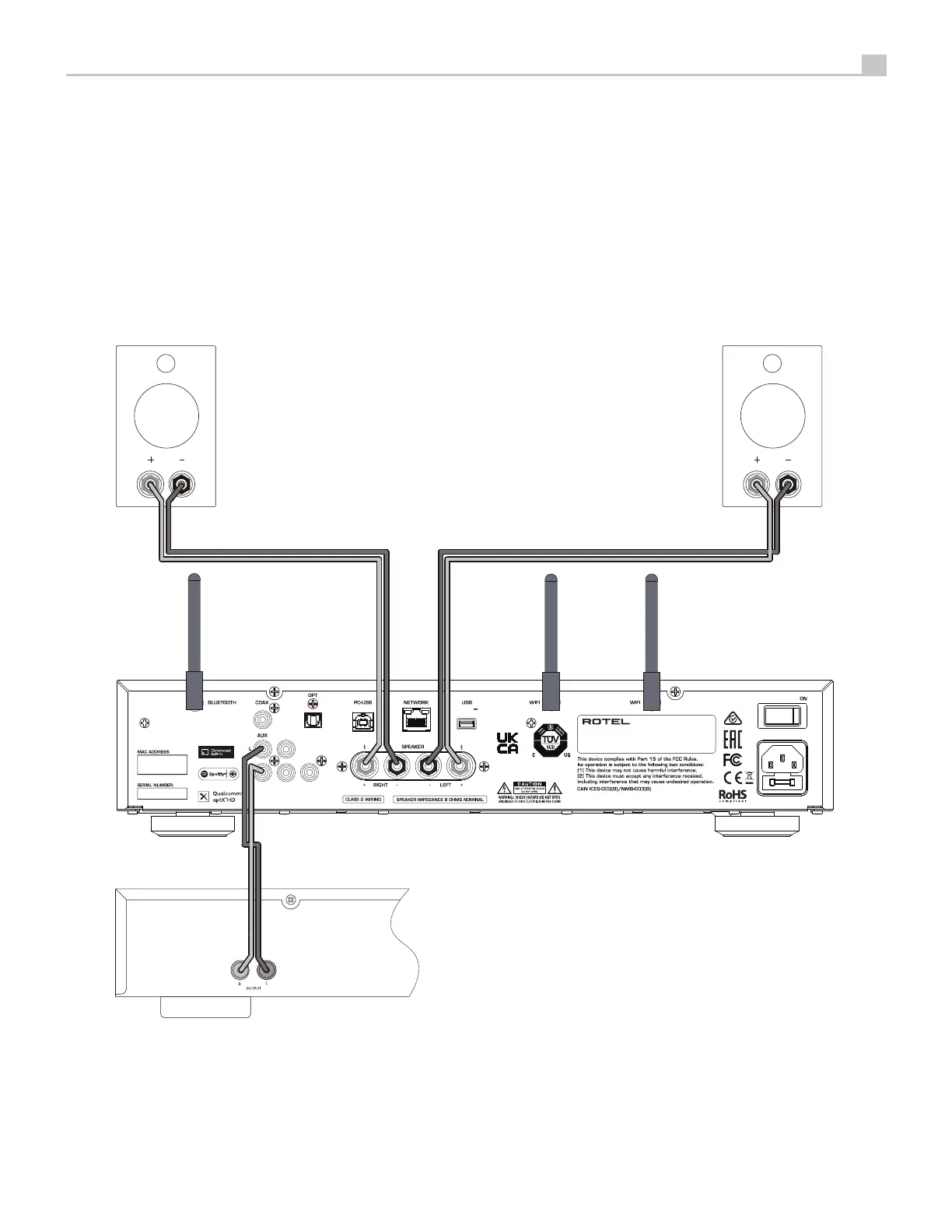

Figure 3: Antennas, Analog Input and Speaker Output Connections
Branchements d’antennes, entrée analogique et sorties enceintes acoustiques
Anschlussdiagramm
Conexiones para las antenas, Entrada analógica y Salida a las Cajas Acústicas
Aansluitingen van Antennes, Analoge ingang en de luidsprekeruitgangen
Collegamenti di antenne, ingresso analogico e diffusori
Antenner-, Signal- och högtalaranslutningar
Подсоединение Антенны, источников сигнала и акустических систем
100-120V/220-240V~50/60Hz
MODEL: S14
PRODUCT NAME: INTEGRATED NETWORK STREAMER
POWER CONSUMPTION: 280W
MADE IN CHINA
OFF
5V/2.0A
OUT OUTIN
PRE
SUB
AC FUSE: T8AL/250V
CAUTION :
Replace with same type
T8AL/250V fuse
Contains FCC ID: 2ADBM-LS10 Contains IC: 20276-LS10
Contains FCC ID: XCO-HSBT075 Contains IC: 7756A-HSBT075
Rotel S14
Audio Player
Speakers
