71User manual
Room air conditioner - UKURA X
EN
Indicators
Temperature indicator
Displays the temperature value set while the air
conditioner is operating.
In the event of a failure, it displays the appropriate
error code.
FRESH indicator
The LED lights up when the Clean Air function is
active.
FRESH indicator
The LED lights up when the Clean Air function is
active.
Work indicator
During operation, the diode informs about the
operation of the device.
Work indicator
During operation, the diode informs about the
operation of the device.
10
Signal receiver
1
2
3
4
5
7
6
8
9
fresh defrost ru n timer

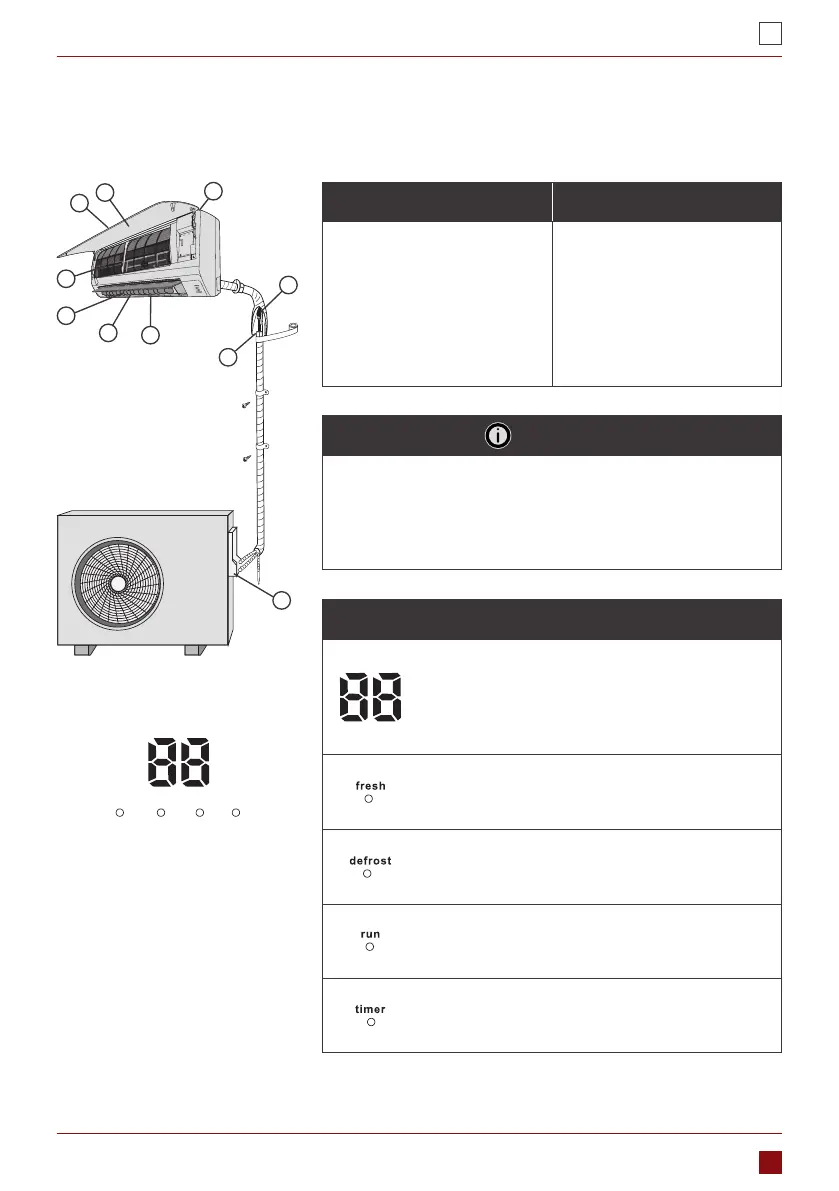

PART 1. AIR CONDITIONER CONSTRUCTION
1. AIR CONDITIONER COMPONENTS
REMEMBER
All the drawings in this manual are of illustrative nature.
The actual front panel and display of the indoor unit you have
purchased may dier from what you see in the picture. The
general outline of the device shape is as shown in the gure.
Indoor unit Outdoor unit
1. Front panel
2. An air inlet
3. Air lter
4. Air outlet
5. Horizontal air ow grille
6. Vertical blinds (inside)
7. Display
8. Connection pipe
9. Line
10. Shut-o valve
