RTX-IOM-QTF-R01-0217
Page 12 of 26
www.rotexautomation.com
6. Operation
Actuator is fitted with NPT connection.
Provide air connections using proper fittings.
Air supply to meet above specifications & not to exceed 8 Bar.
Ensure air supply pressure is regulated to ensure maximum air supply is not exceeded.
Now the actuator is ready to perform…..

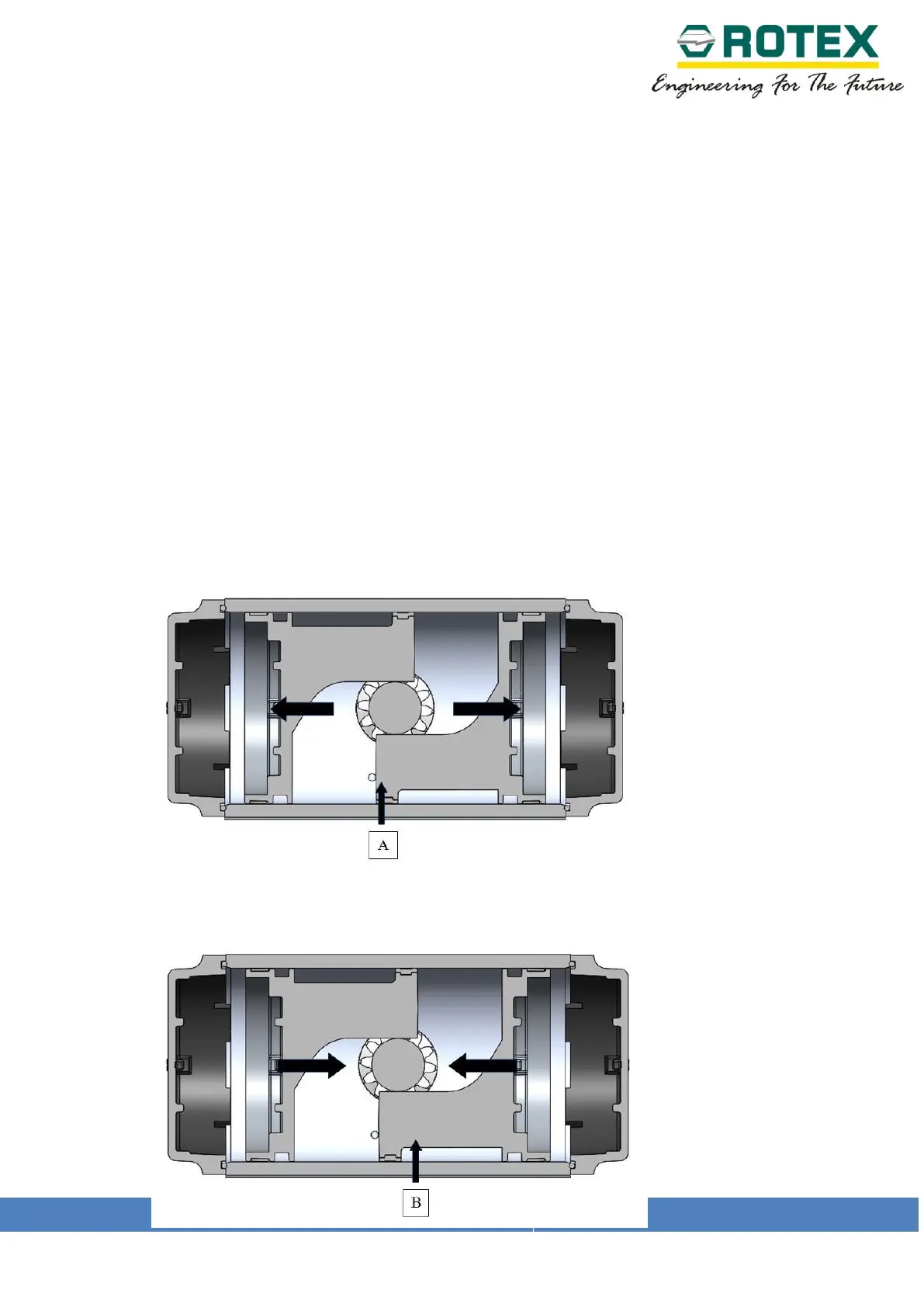

6.1 Operating Principle (Standard Mode) for double acting
Both ports A and B are used as inlet ports.
When air is supplied to Port A, the pistons are moved away from each other, and the
pinion is rotated CCW.
When air is supplied through Port B, the pistons come closer and return to their home
position, rotating the pinion CW.
