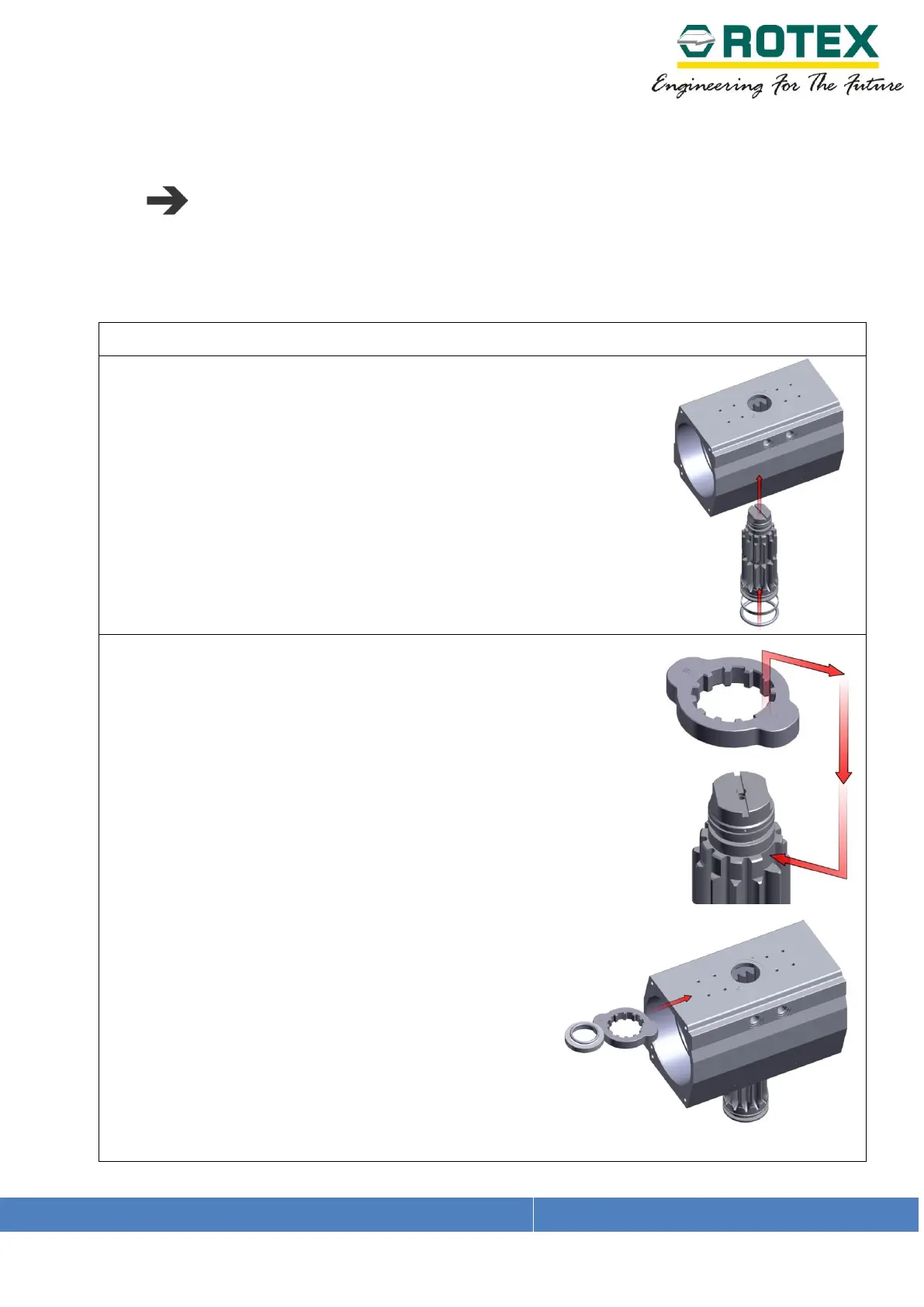

9. Assembly for double acting & standard mode spring
return (fail CW)
NOTE:
Follow the sequences as given below to ensure proper assembly.
Use only the recommended accessories and lubricants.
b. Fit bottom pinion bearing #15 and bottom pinion seal #11
on to the pinion #2. Apply recommended grease over the
pinion bearing surface #15 and on the bottom pinion seal
#11. Apply a thin coat all over the surface; avoid excess
grease. Insert pinion carefully into the body #1 from the
bottom, approximately half way.
c. While installation of cam #8 match cam slot with pinion #2
slot properly as shown.
d. Install top pinion seal #14 on pinion and apply
a light layer of grease. Install top pinion
bearing #18 on pinion. Push the pinion the
rest of the way into the body.
Apply gentle force while rotating the pinion to
facilitate the insertion.
