6.2

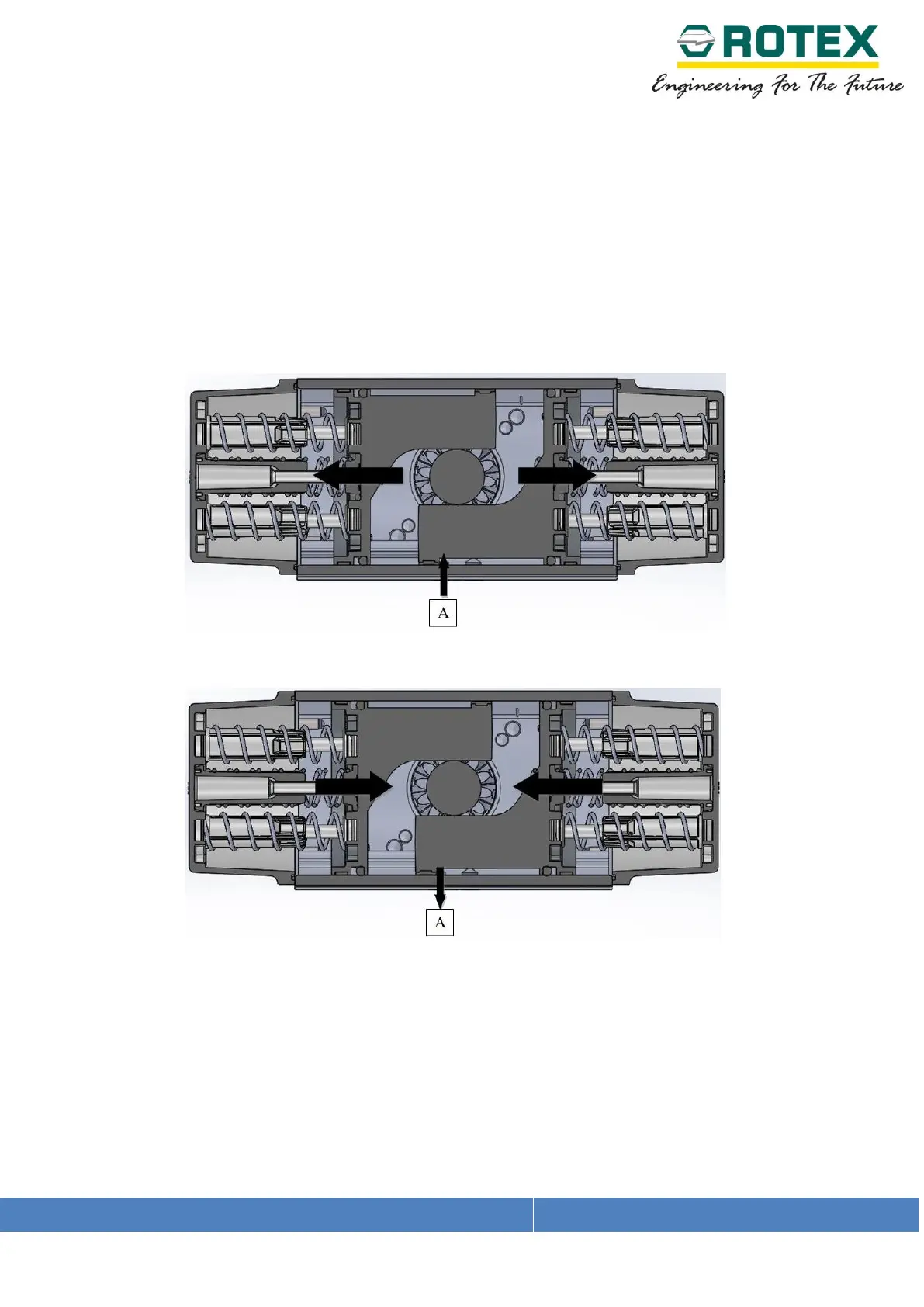

Operating Principle (S
tandard Mode
) for
spring return
–
F
ail
CW
Port A is used as inl
e
t.
When air is supplied to Port A, the pistons are
moved
away from each other,
the
springs
are compressed, and the pinion is rotated CCW
.
When
the
a
ir
is
exhausted
through
Port
A,
the
springs
return
the
pistons
to
the
home
position, rotating the pinion C
W
.
12
14
