4 Set-up and installation
4.1 Set-up
4.1.1 Important information
Requirement: The installation site meets the applicable country-
specific requirements.
Incorrect set-up and installation would render the manufacturer's
guarantee for the unit void. If you have questions, please contact
our Technical Customer Service.
4.1.2 Scope of delivery
– ROTEX Sanicube / HybridCube hot water storage tank
– Bag of accessories (see fig. 4-1)
WARNING!
The storage tank plastic wall on the ROTEX Sanicube
/ HybridCube can melt under the effects of external
heat (>80 °C) and, in the extreme case, can catch fire.
Ɣ Erect the ROTEX Sanicube / HybridCube only at a
minimum distance of 1 m to other heat sources
(>80 °C) (e.g. electric heater, gas heater, chimney)
and flammable materials.
CAUTION!
Ɣ Only erect the ROTEX Sanicube / HybridCube if a
ground load-bearing capacity of 1050 kg/m²
plus safety factor is guaranteed. The ground must
be flat and level.
Ɣ Erection outdoors is only possible to a limited
extent. The storage tank must not be exposed to
continuous direct sunlight, as the UV radiation
and the effects of the weather will damage the
plastic.
Ɣ The ROTEX Sanicube / HybridCube must be
protected from frost.
Ɣ Make sure that the supply company does not
provide corrosive domestic water.
– Suitable water treatment may be required.
CAUTION!
If the hot water storage tank is not installed
adequately lower than the flat solar panels (the top
edge of the of the storage tank is higher than the
bottom edge of the solar panel) the unpressurised
solar system in the outdoor area will be unable to drain
completely.
Ɣ Erect the ROTEX Sanicube / HybridCube low
enough, with a solar connection, with regard to the
flat solar panels (observe minimum gradient in the
solar connecting lines).
HYBRIDCUBE
Observe the permitted lengths of pipes between the
hot water storage tank and the hydraulic connections
on the heat pump (see installation and operating
instructions of the heat pump and the relevant storage
tank connecting kit "E-PAC").
A Handle (required only for
transport)
B Cover screen
C Safety overflow connection
D Clamping piece for safety
overflow
E Installation spanner

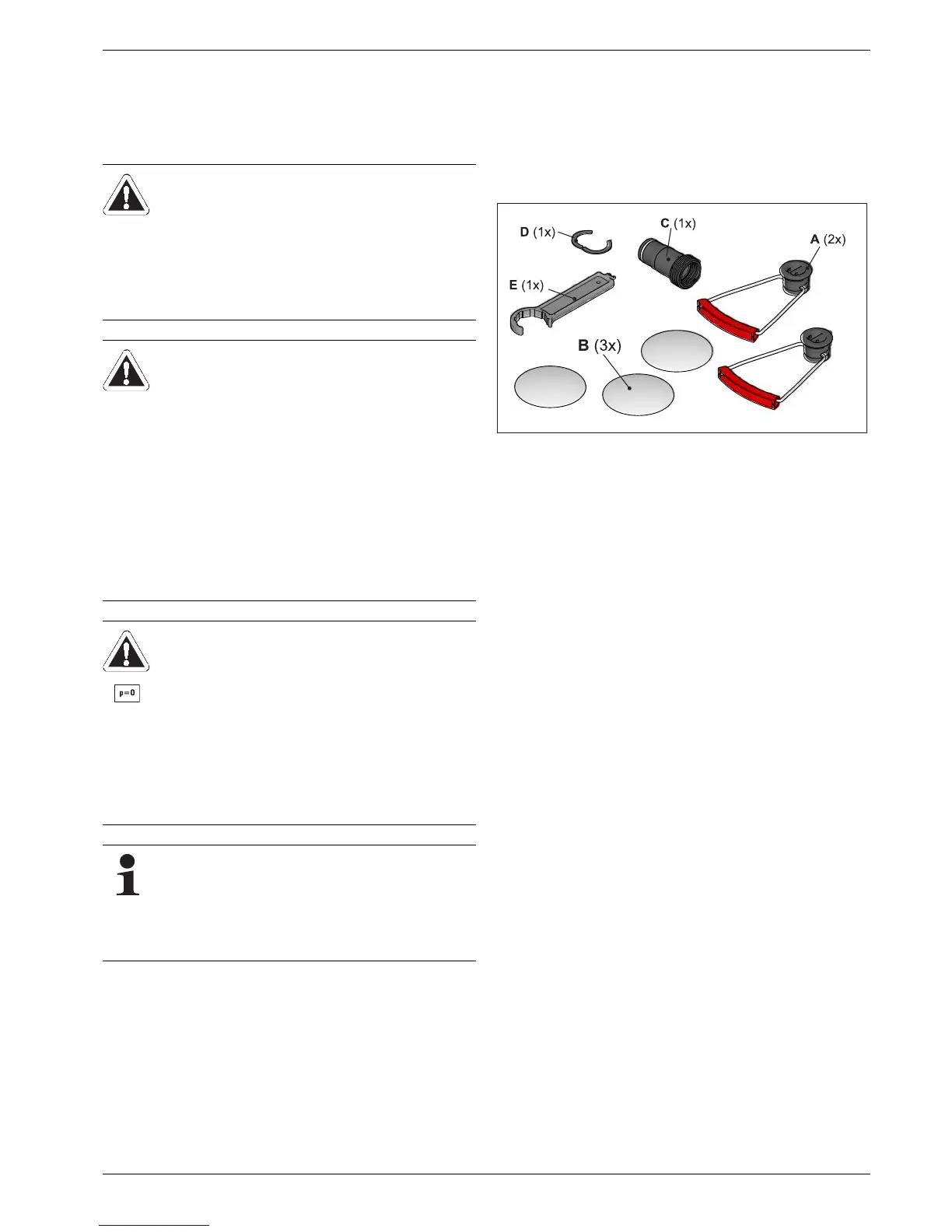

Fig. 4-1 Contents of bag of accessories
