FA ROTEX SC / SCS / HYC - 02/2013
8 x Technical data

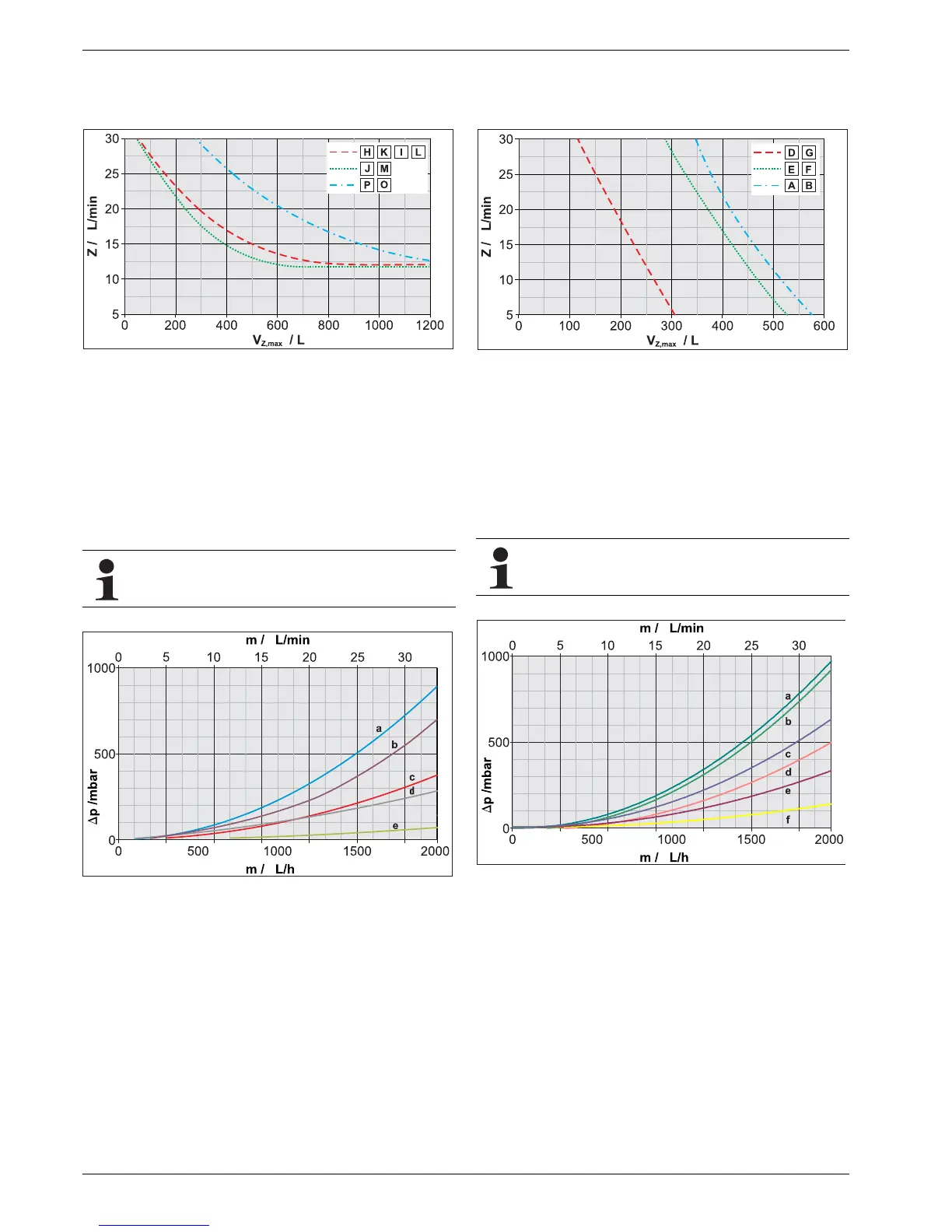

8.2 Performance diagrams
8.2.1 Sanicube (SC) / Sanicube Solaris (SCS) 8.2.2 HybridCube (HYC)
H SCS 538/16/0-DB
I SCS 538/16/16-DB
J SCS 328/14/0-DB
K SCS 538/16/0-P
L SCS 538/16/16-P
N SC 538/0/0
M SCS 328/14/0-P
O SC 538/16/0
P SC 538/16/16
Z/ L/min
Draw-off rate in litres per
minute
V
Zmax
/L
Maximum draw-off rate in

litres
Hot water volume with reheating at a rating of 20 kW 
(T
KW
= 10°C,T
WW
= 40°C,T
SP
= 60°C)
Fig. 8-1 Hot water performance as a function of the draw-off rate
Draw-off rates >36 l/min can, in certain rare circum-
stances, lead to noises in the domestic water heat
exchanger of the hot water storage tank.
a Drinking water heat exchanger
(SC 538/0/0, SC 538/16/0, SC 538/16/16, SCS 538/16/0-DB,

SCS 538/16/0-P, SCS 538/16/16-DB, SCS 538/16/16-P)
b Drinking water heat exchanger
(SCS 328/14/0-DB, SCS 328/14/0-P)
c Storage tank charging heat exchanger 1 or 2
(SC 538/16/0, SC 538/16/16, SCS 538/16/0-DB, SCS 538/16/0-P,
SCS 538/16/16-DB, SCS 538/16/16-P)
d Storage tank charging heat exchanger 1
(SCS 328/14/0-DB, SCS 328/14/0-P)
e Heating support heat exchanger
(SCS 538/16/0-DB, SCS 538/16/0-P, SCS 538/16/16-DB,

SCS 538/16/16-P)
'p/mbar Pressure drop in millibar
m/ L/h Flow rate in litres per hour
m/ L/h Flow rate in litres per minute
Fig. 8-2 Pressure drop characteristic for the heat exchanger
A HYC 544/19/0-DB
B HYC 544/32/0-DB
C HYC 343/0/0-DB
D HYC 343/19/0-DB
E HYC 544/19/0-P
F HYC 544/32/0-P
G HYC 343/19/0-P
Z/ L/min
Draw-off rate in litres per
minute
V
Zmax
/L
Maximum draw-off rate in

litres
Hot water volume without re-heating (T
KW
=10°C, T
WW
=40°C, T
SP
=60°C).
Fig. 8-3 Hot water performance as a function of the draw-off rate
Draw-off rates >36 l/min can, in certain rare circum-
stances, lead to noises in the domestic water heat
exchanger of the hot water storage tank.
a Drinking water heat exchanger 
(HYC 544/19/0-DB, HYC 544/19/0-P, HYC 544/32/0-DB, 
HYC 544/32/0-P)
b Drinking water heat exchanger

(HYC 343/0/0-DB, HYC 343/19/0-DB, HYC 343/19/0-P)
c Storage tank charging heat exchanger 1
(HYC 544/32/0-DB, HYC 544/32/0-P)
d Storage tank charging heat exchanger 1
(HYC 343/19/0-DB, HYC 343/19/0-P)
e Storage tank charging heat exchanger 1
(HYC 544/19/0-DB, HYC 544/19/0-P)
f Heating support heat exchanger
(HYC 544/19/0-DB, HYC 544/19/0-P, HYC 544/32/0-DB,

HYC 544/32/0-P)
'p/mbar Pressure drop in millibar
m/ L/h Flow rate in litres per hour
m/ L/h Flow rate in litres per minute
Fig. 8-4 Pressure drop characteristic for the heat exchanger
