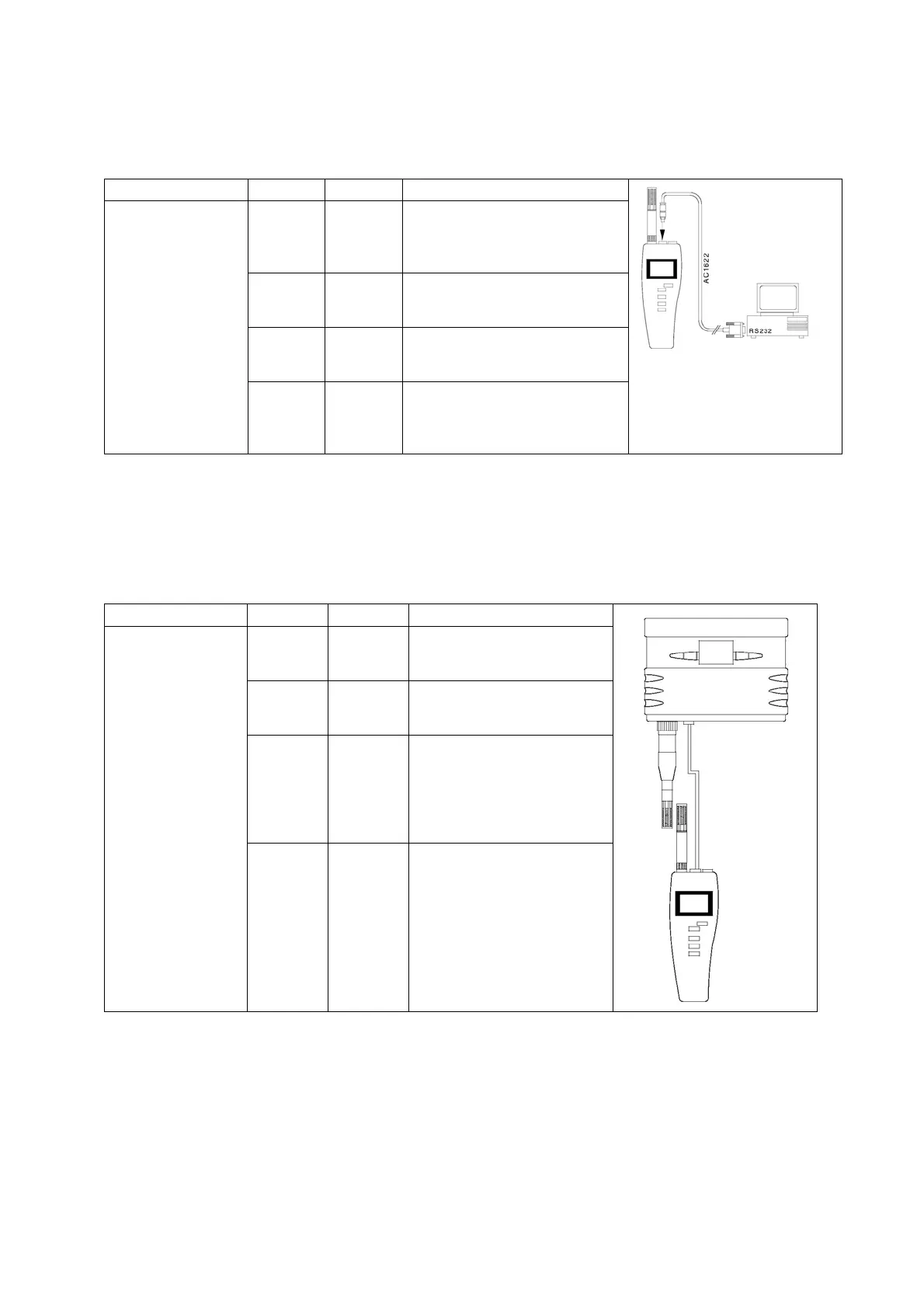

2. Cable Overview
2.1 HygroPalm connected to PC
Service Cable Palm 2 Palm 3 Possible Functions
yes yes
Communication by RS232
between Palm and PC,
Configuration of Palm with
HW3
yes yes
1 point probe adjustment of
probe 1, probe 2 or both at the
same time
yes yes
Multi point probe adjustment of
probe 1, probe 2 or both at the
same time
RS232
Cable
AC1622
B3<>D9sub
yes yes
1 point adjustment against
reference probe
In this function, probe 2 is
always the reference probe
2.2 HygroPalm connected to HygroFlex
Service Cable Palm 2 Palm 3 Possible Functions
yes yes
Display the readings from
any probe connected to the
HygroFlex
yes yes
Display the HygroFlex
status (configuration, serial
number, etc.)
yes yes
1-point adjustment of any
HygroClip digital probe
connected to the
transmitter, using the probe
connected to the
HygroPalm as a reference
Remote
Cables
AC1621
DAT5<>B2
AC1620
B5<>B2
yes yes
Access the functions
(except for calculate and
display) of the transmitter,
primarily the adjust M.PT
function for multi point
probe calibration
\\Kalibrierung\Calibration_procedures_2.doc
5
