Rotronic Pt 100 RTD User Manual

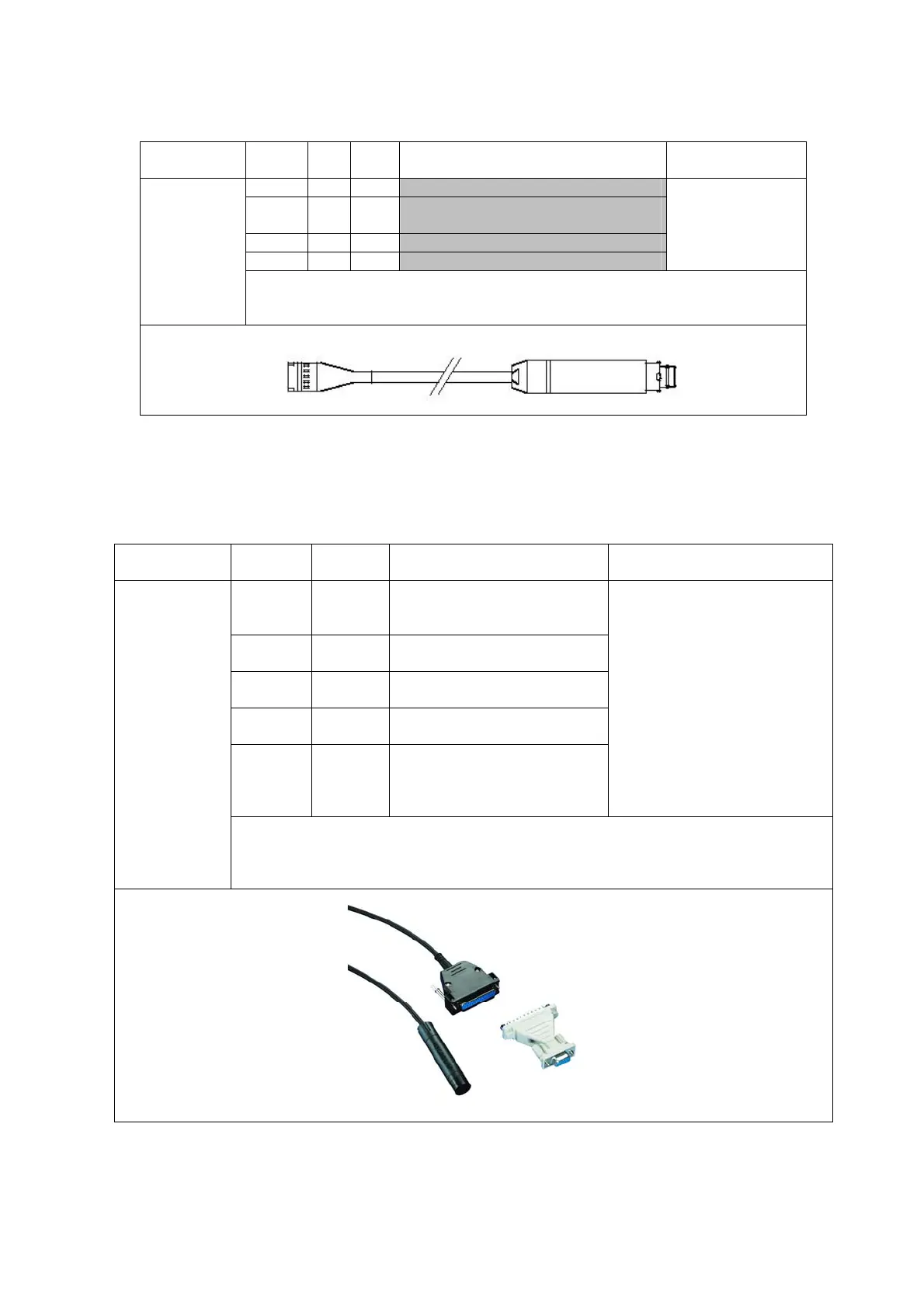

2.5 M1-Series & Roline-L connected to PC via HygroPalm
Device
M1xW
M1xD
M1S L1x
Possible
Functions
Accessories
required
Yes Yes Yes Scaling of output signals
Yes Yes Yes
Adjustment of digital/analog
converter
Yes Yes Yes Service cable compensation
Yes Yes Yes Simulation of analogue outputs
PC, HW3
software,
HygroPalm,
AC1622 or
Docking Station
Service cable
ACRL001
ACRL005
ACRL010
ACRL020
ACRL420
Note:
Use the appropriate cable according to the output signal of the transmitter that
is to be adjusted
2.6 M1- & Roline-L Series connected to PC via MOK-WIN and ACRLXB5
Device
M1xW
M1xD
L1xD/W
Possible
Functions
Accessories required
Yes Yes
Display the measurement
values of the M1 / L1x
transmitter
Yes Yes
1-point adjustment using a
RHS humidity standard.
Yes Yes
Multi- point adjustment using
a RHS humidity standard.
Yes Yes
1 point or 2 point adjustment
of temperature
Yes Yes
Display the serial number, last
calibration date of
temperature and humidity
calibration)
PC running
HW3 software
ACRLXB5
MOK-02-WIN
(eventually
AC adaptor AC1207)
Service cable
MOK-02-WIN
Note:
HW3 will recognize the transmitters as a single HygroClip probe.
Do not attempt to adjust temperature unless you have very accurate reference
instruments!
\\Kalibrierung\Calibration_procedures_2.doc
7
