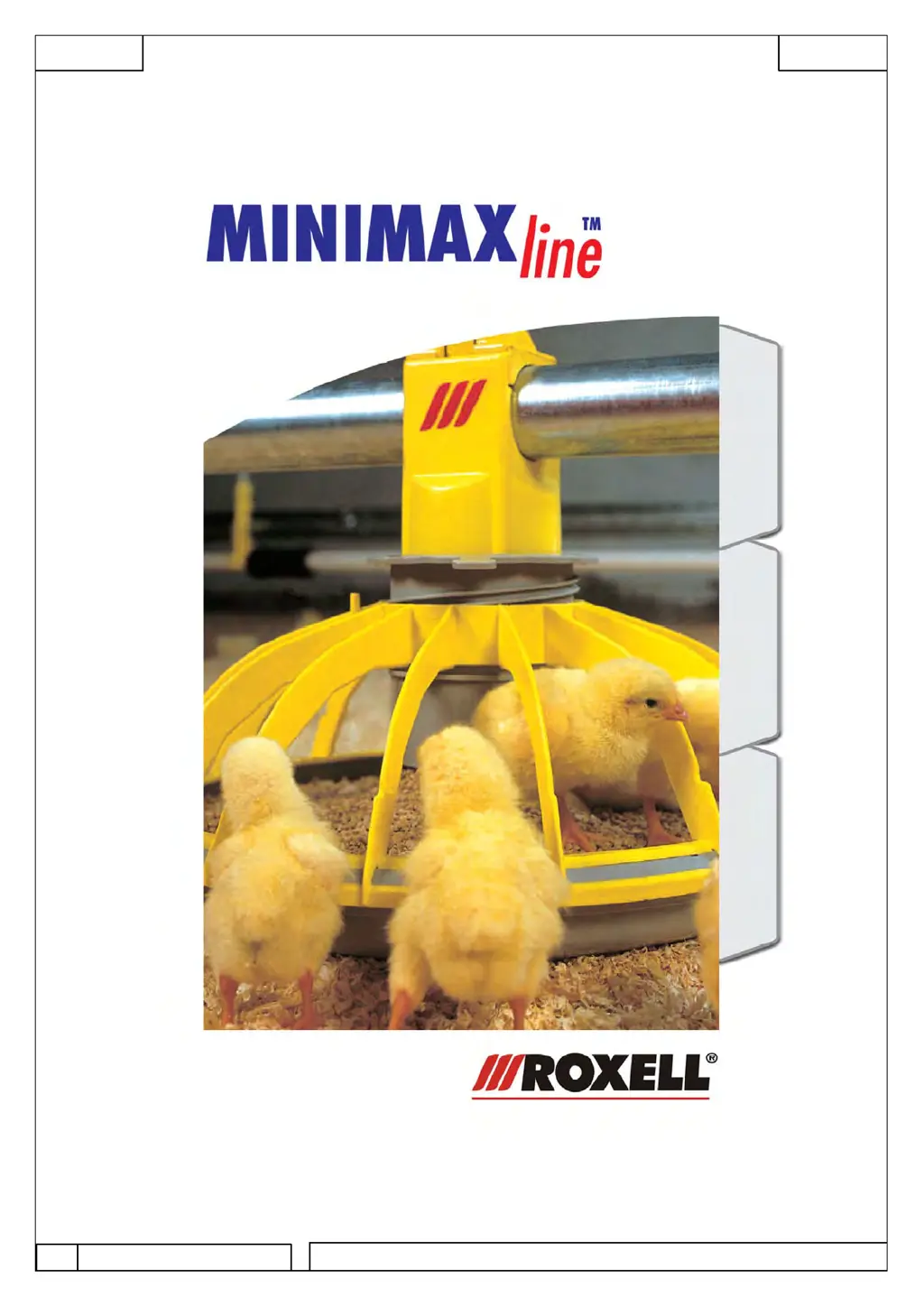

Roxell Minimax Line
94 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
001--211200101253
*00101253*
Original use and assembly guide
Use and Assembly Guide
Instructions
for the user
Components Installation
instructions
EN ENGLISH

Table of Contents

Questions and Answers

  • M
    Michael GarciaAug 15, 2025
    Why is the Roxell Farm Equipment motor often overloaded?
    • C
      christina37Aug 16, 2025
      If the Roxell Farm Equipment motor is often overloaded, it could be due to several reasons. One cause is oil on the auger, which can be resolved by running about 25 kgs of feed repeatedly through the line to clean the auger. Another reason could be insufficient current supply to the motors; check the current supply at the motor location, start the motor, and measure the start current, ensuring the wiring is thick enough for proper operation. Lastly, an object might be blocking the auger, causing the motor to stall. Inspect the boot, control unit, and feeder pan drop holes for obstructions and remove them.
  • B
    Brandon SullivanAug 19, 2025
    How to troubleshoot feeder lines not running in Roxell Minimax Line?
    • A
      Amber TurnerAug 19, 2025
      If none of the feeder lines in your Roxell Farm Equipment are running, the issue might stem from several causes: * **No current**: In this case, replace any defective fuses or reset the circuit breakers. Also, verify the current supply to the house. * **Defective clock**: If the clock is faulty, it will need to be replaced. * **Time clock not properly set**: Ensure the time clock is correctly set by readjusting the tabs.
  • J
    Jared WongAug 22, 2025
    What to do if some Roxell Minimax Line feeder lines aren't running and pans are empty?
    • J
      Jonathan GeorgeAug 22, 2025
      If one or more lines of your Roxell Farm Equipment aren't running and the pans are empty, several factors could be at play: * Damaged motor wires: Measure the current in the motor wires and replace them if they are defective. * Thermal protection of the motor switched off: Reset the motor overload button. * Defective control unit switch: Replace the faulty control unit switch box. * Control unit malfunctioning: Adjust the control pan level, hang an extra lamp above it, and check the temperature. Ensure the control unit is attractive, especially the one below the Flex-Auger control unit. * Defective sensor/minimum switch control unit: Check the control unit sensor or switch and replace it if necessary.
  • K
    Keith ThomasAug 25, 2025
    Why does the Roxell Minimax Line auger stall?
    • B
      Bryce GalvanAug 26, 2025
      If the auger in your Roxell Farm Equipment is stalling, it could be due to a few reasons. First, the anchor bearing might be worn out or broken, requiring replacement. Gently slide the auger back into the tubes, being careful to avoid damaging the new bearing. Second, the auger might not be stretched enough and will need shortening. Lastly, an object could be blocking the auger, which needs to be removed.
  • L
    Lawrence PerezAug 28, 2025
    Why is Roxell Minimax Line not supplying enough feed to fill the lines?
    • D
      Donald BassAug 28, 2025
      If not enough feed is supplied to fill up the lines in your Roxell Farm Equipment, consider these possible causes: * The Flex-Auger drop holes may be too small or pointing upwards. Make the holes wider and ensure the tubes with holes face downwards. * The flow regulator in the feed supply system's boot could be blocking the feed passage. Adjust the flow regulator to increase capacity. * The Flex-Auger capacity might be too low. Check the Flex-Auger's capacity against specifications and verify its installation. * The time set on the time clock might be insufficient. Extend the operation time per meal.
  • W
    whitneygoodwinAug 30, 2025
    Why do Roxell Minimax Line tubes wear rapidly and make so much noise?
    • D
      Donna SuttonAug 31, 2025
      If the tubes or boot of your Roxell Farm Equipment are wearing rapidly and the system is making a lot of noise, it's likely that the auger is kinked or bent at the wear point, or the auger end overlaps the anchor end. Ensure you don’t kink the auger when using gripping pliers, and the auger must not overlap the anchor end.
  • J
    Jacob ParkerSep 3, 2025
    What to do if feed drops directly on the adjuster ring of the Roxell Minimax Line grill?
    • D
      Deanna PopeSep 3, 2025
      If feed drops directly on the adjuster ring of the grill in your Roxell Farm Equipment, it's likely that the pan isn't installed over the hole. To fix this, remove the top support and install the pan assembly over the hole and the lips.
  • R
    Ryan WilliamsSep 5, 2025
    What to do if Roxell Minimax Line Farm Equipment windows are open but feed level is too low?
    • F
      ffosterSep 6, 2025
      If the windows are open but the feed level is too low in your Roxell Farm Equipment, it might be because some windows are actually closed. Adjust the height of the feeder line until all windows completely open and close simultaneously.
  • C
    Courtney HamiltonSep 8, 2025
    Why are Roxell Farm Equipment windows closed and feed level too high?
    • H
      Hannah PonceSep 8, 2025
      If the windows are closed and the feed level is too high in your Roxell Farm Equipment, it could be due to the adjuster ring being set too high. Adjust the height accordingly. Also, check that all windows are fully closed. If not, adjust the height of the feeder line until they completely open and close simultaneously.
  • M
    Martha GreeneSep 12, 2025
    What causes Roxell Farm Equipment windows to be closed with a low feed level?
    • K
      Kelly RichardsonSep 12, 2025
      If the windows are closed and the feed level is too low in your Roxell Farm Equipment, it could be because the adjuster ring is set too low, so adjust the height. Also, the feeder line might not be winched up high enough; winch it up higher until all pans are simultaneously clear of the litter.

Summary

PART I: INSTRUCTIONS FOR THE USER

DIRECTIONS FOR OPERATING THE SYSTEM

Guidance on how to operate the Minimax system, including startup and daily use.

MAINTENANCE INSTRUCTIONS

Procedures and schedule for maintaining the system's components.

TROUBLE SHOOTING GUIDE

Solutions for common system problems and their causes.

OPERATORS GUIDE

PART III: INSTALLATION INSTRUCTIONS

GENERAL SAFETY RULES

Crucial safety instructions for system installation.

TOOLS

FEEDER LINE SUSPENSION

TO INSTALL THE AUGER

ELECTRICITY.... WATCH OUT!

Important safety warnings for electrical connections.

WIRING DIAGRAM FOR SINGLE PHASE MOTORS

Wiring diagram for single-phase motors.

WIRING DIAGRAM FOR THREE PHASE MOTORS

Wiring diagram for three-phase motors.

GENERAL CONNECTION DIAGRAM (SINGLE PHASE)

GENERAL CONNECTION DIAGRAM (THREE PHASE)

CONNECTION & WIRING DIAGRAM OF THE WINCH MOTOR (SINGLE PHASE)
