"CRUSADER
250," "250
CLIPPER"
AND
"CRUSADER
SPORTS"

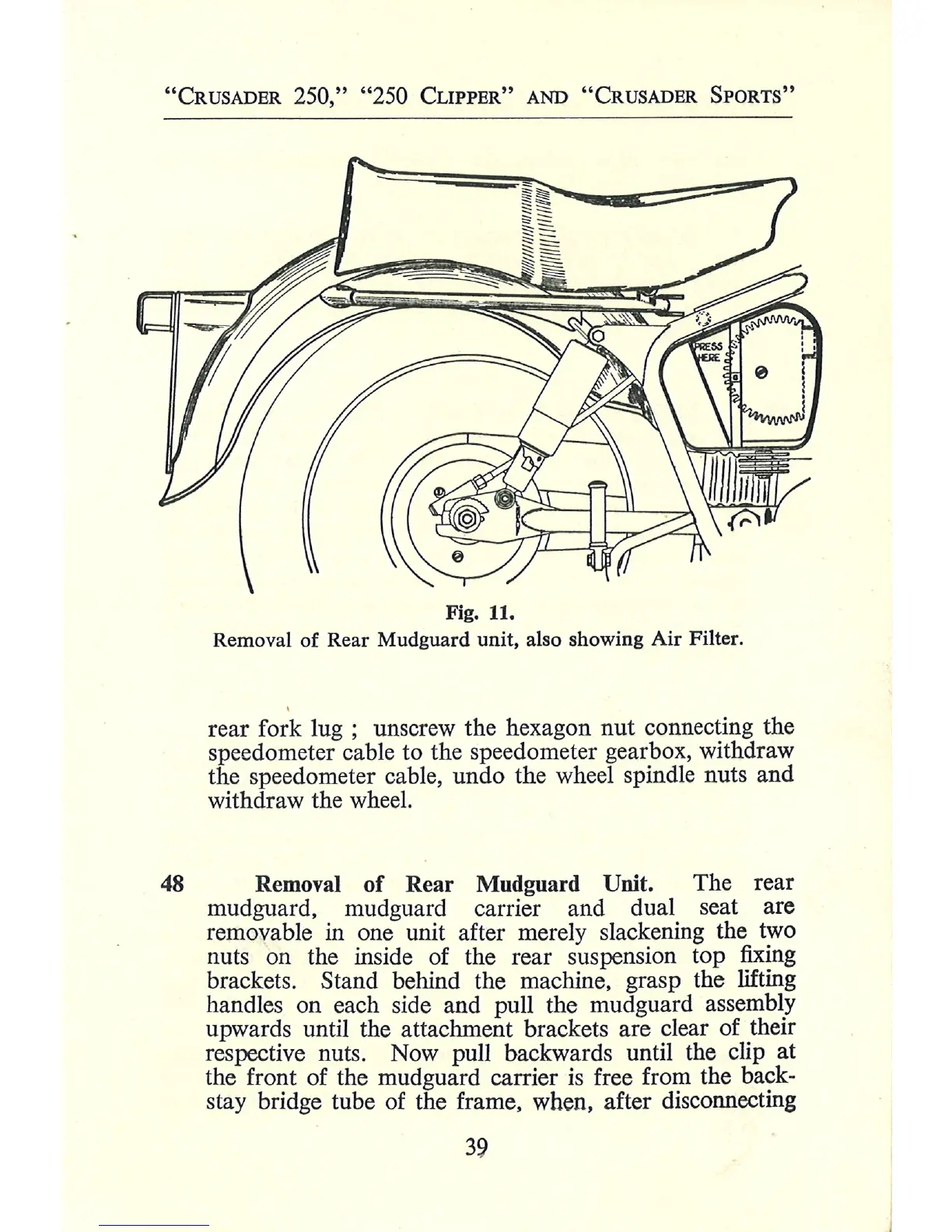

Fig. 11.
Removal of Rear Mudguard unit, also showing Air Filter.
rear fork lug ; unscrew the hexagon nut connecting the
speedometer cable to the speedometer gearbox, withdraw
the speedometer cable, undo the wheel spindle nuts and
withdraw the wheel.
48
Removal of Rear Mudguard
Unit. The rear
mudguard, mudguard carrier and dual seat are
removable
in
one unit after merely slackening the two
nuts on the inside of the rear suspension top
fixing
brackets. Stand behind the machine, grasp the lifting
handles on each side and pull the mudguard assembly
upwards until the attachment brackets are clear of their
respective nuts. Now pull backwards until the clip at
the front of the mudguard carrier
is
free from the back-
stay bridge tube of the frame, when, after disconnecting
39
