Cable Tester with Probe / English
EN- 6
Testing COAX Mode
Connecting way:
● Only be connected from MAIN connector to REMOTE terminator connector.
Test Function :
● Coaxial Cable
What Condition is (PASS, OPEN, SHORT).
Test Result :

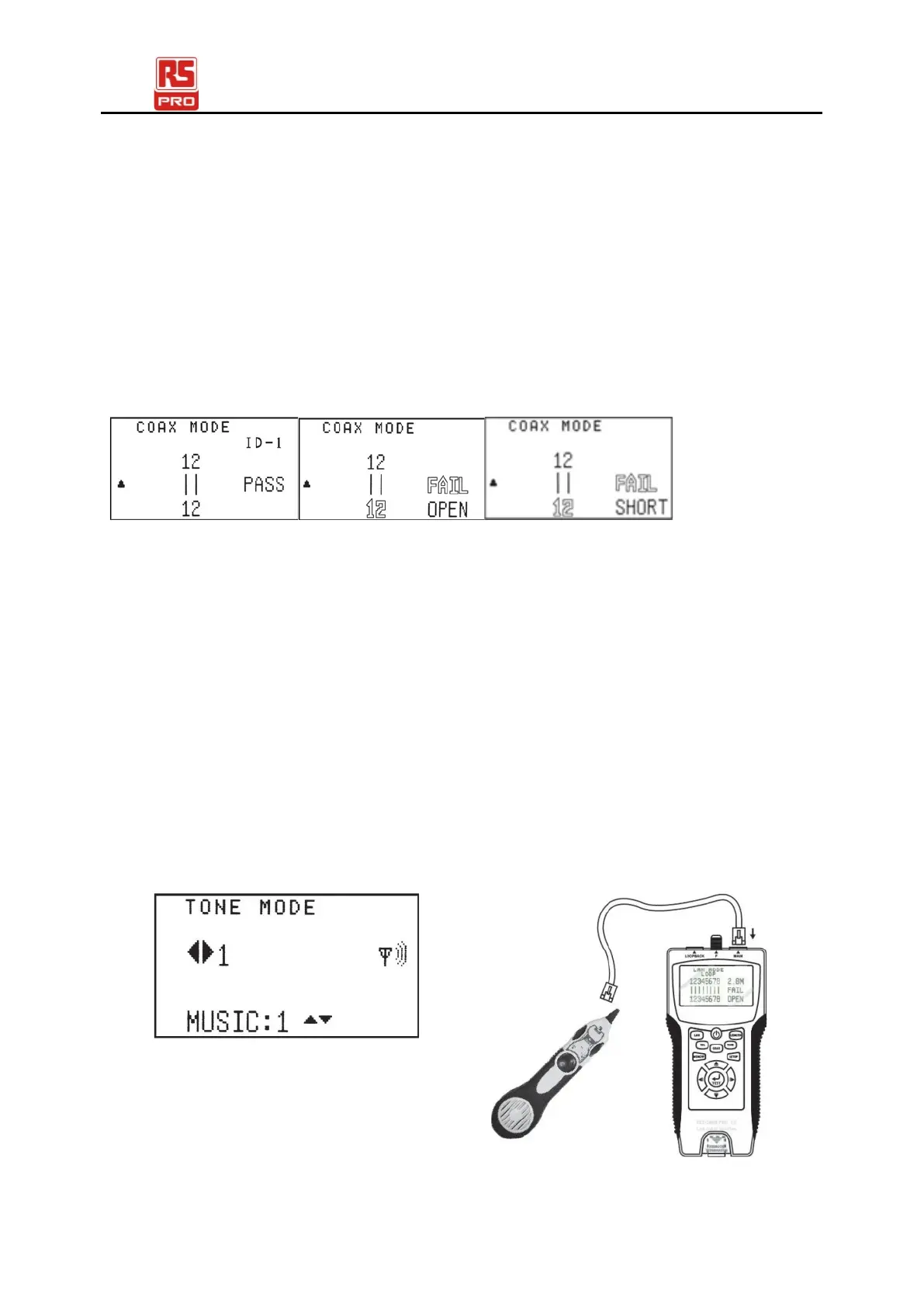

● Please refer to figures as following…
● Memory function in the COAX Cable Test Mode
● To Store the result of COAX Cable Test with 4 Sets of memories
It is Similar to (Store the result of LAN Cable Test).
● Review the record of 4 sets memories.
It is Similar to (Review the record of 8 sets memories in LAN Cable Test).
● Erase the record of 4 sets memories.
It is Similar to (Erase the record of 8 sets memories in LAN Cable Test).
Function of Tone Mode :
● Transmit audio frequency down the cable to detect where the cable is broken
using the probe.
● Two Audio tone be selected from TONER.
● That there is no memory function for TONE MODE.
