RS PRO CT2690 - Function of Length Mode; LENGTH Measure Mode Memory Function; Review LENGTH Measure Records; Erase LENGTH Measure Records

Cable Tester with Probe / English
EN- 7
Function of Length Mode :
Connecting way:
● Connect one end of (LAN or COAX) cable to the MAIN connector, The other end
is kept unconnected.
Test Function :
(1). Can measure the Length of LAN cable or COAX cable.
(2). Can store the test result of LAN cable or COAX cable.
Test Result :

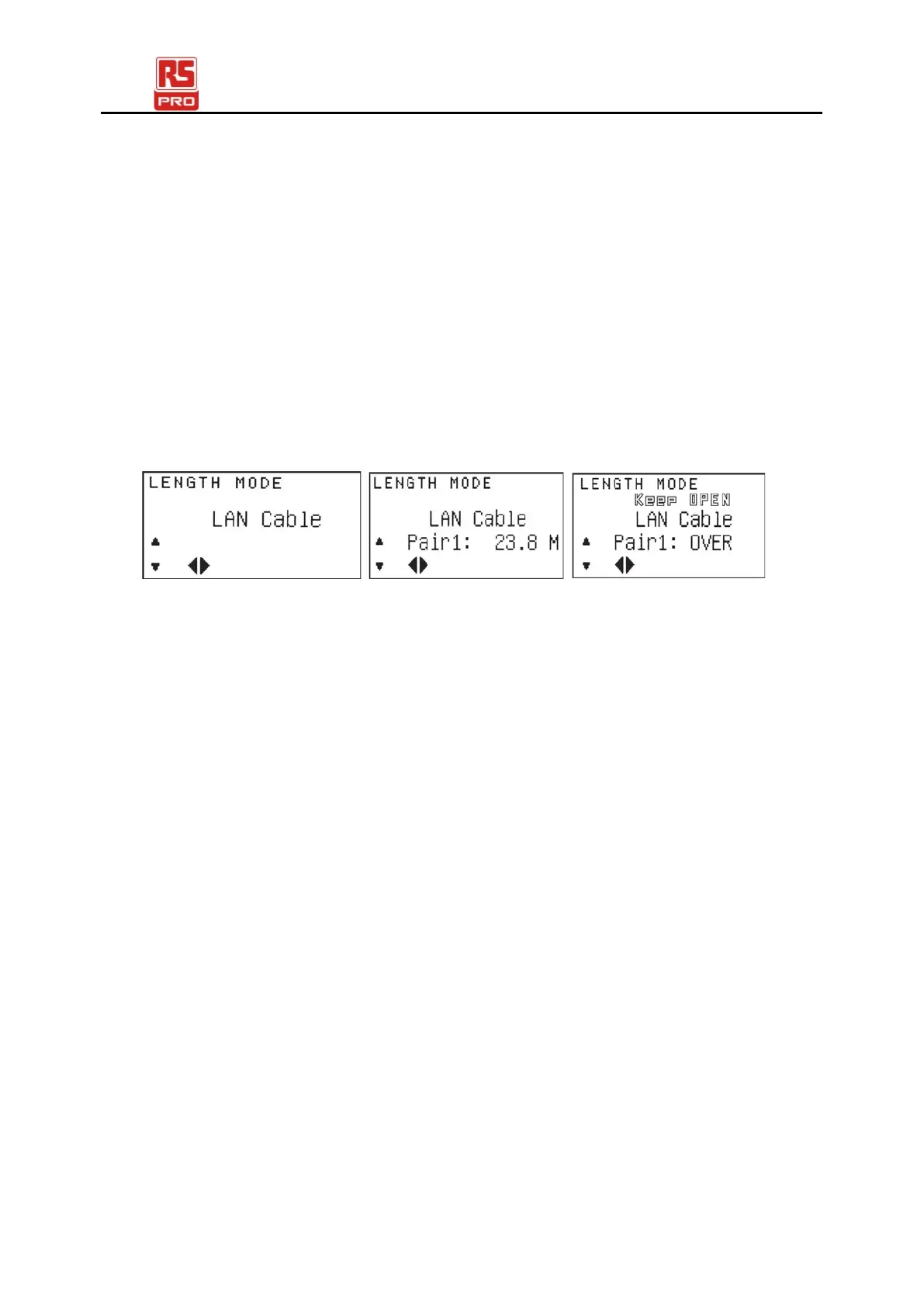

● Please refer to figures as following…
● Memory function in the LENGTH Measure Mode of (LAN, COAX) Cable.
● To Store the result of Length Measure Mode with 4 Sets of memories
It is Similar to (Store the result of LAN Cable Test).
● Review the record of 4 sets memories.
It is Similar to (Review the record of 8 sets memories in LAN Cable Test).
● Erase the record of 4 sets memories.
It is Similar to (Erase the record of 8 sets memories in LAN Cable Test).
