21
4.4 Stepping the mast.
Before stepping the mast, make yourself familiar with how the “foot” (bottom
end) of the mast will fit into the “step” (fitted to the boat).
The mast foot has two rectangular blocks on the bottom, separated by a
groove. Both these blocks will fit between the block at the front of the mast
step and the bolt in the middle of the step (see picture 4.3 and 4.4).

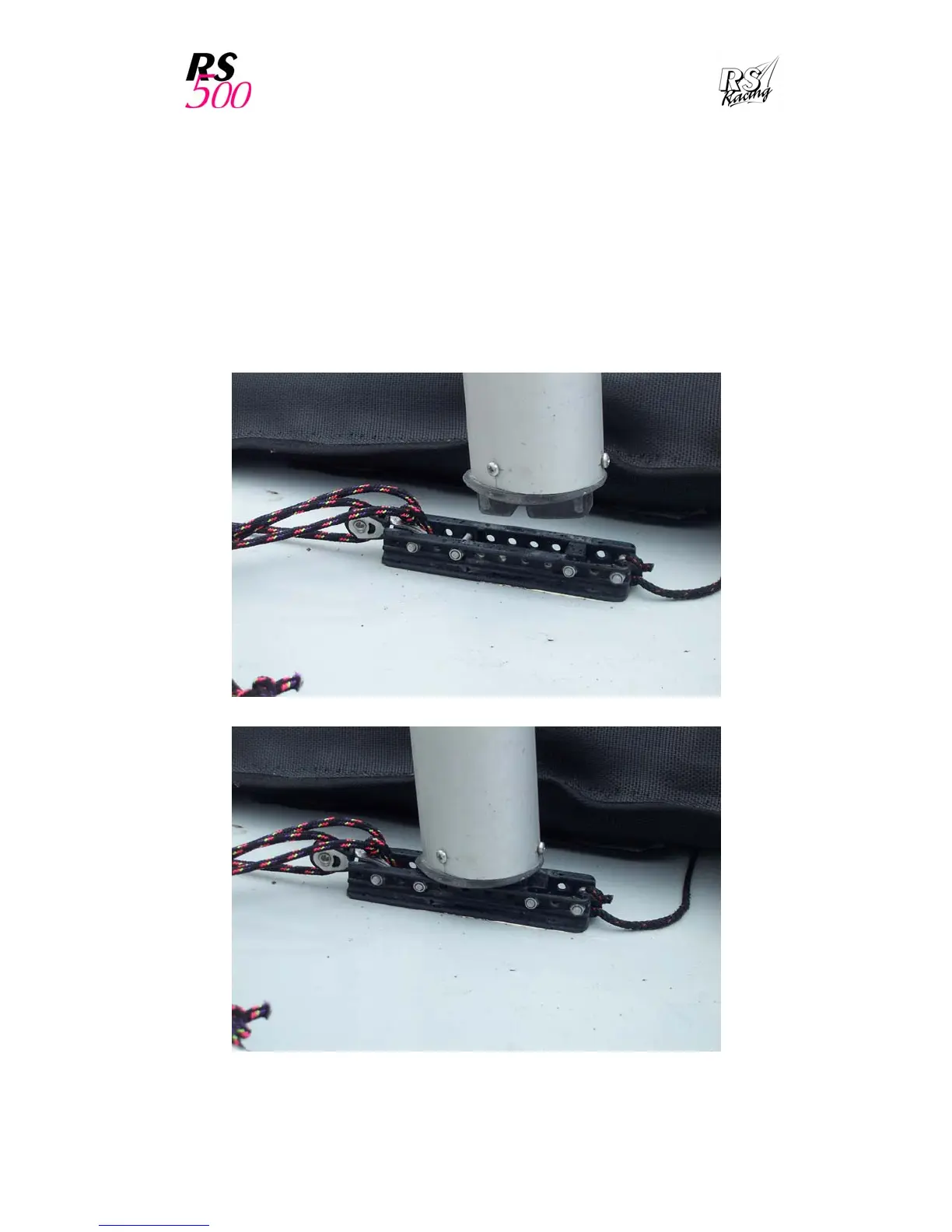

Picture 4.3 The mast step and foot.
Picture 4.4 The mast foot correctly located.
