13
It’s Under Control
®
AC115V/60HZ
AC230V/50HZ
120W
FUSE: T2AL 250V
1
2
3 4
REMOTE SOURCES
L
L
A
1
3
NILRTC
2
4
REMOTE SOURCE
IR INPUT
MUTE
LINK
STATUS
+12VDC
RS232
L L L LR R R R
ZONE 1 SPKRS
ZONE 2 SPKRS ZONE 3 SPKRS
ZONE 4 SPKRS
L
R
1 2 3 4
SOURCES
Made In Taiwan
5
6
7
8
9
11
10 12
13
14
15

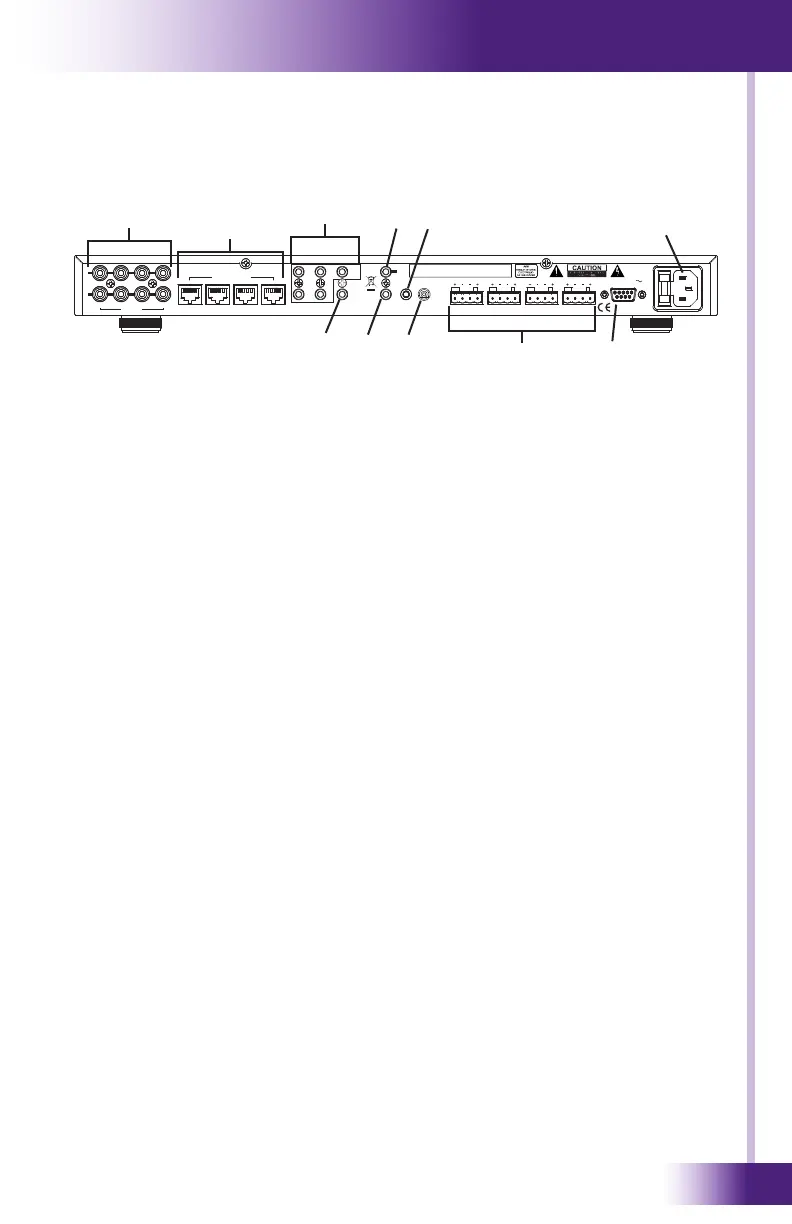

AD-4 REAR PANEL
5. Local Source Inputs
Stereo RCA inputs for audio signal from up to four independent audio
sources. (Receiver, cable box, satellite radio etc)
6. Remote Source Inputs
RJ-45 jacks for connection of up to four RTI Remote Source wall plates
(model RSP-1) for independent audio sources located remotely (iPod
®
dock, CD player, PC etc). Remote Source wall plates installed in
locations where the audio source devices will be used are wired back to
the AD-4 with Cat-5 cable and provide a convenient audio signal path
from the source to the AD-4 as well as IR control of the source from an
RTI control system.
7. Remote Source IR Control Inputs
These 3.5mm mini-jack inputs are for connecting to an IR output port
of an RTI control system for control of a remote audio source. The IR
control is then delivered over the same Cat-5 cable that runs between
the AD-4 and an RTI Remote Source wall plate (RSP-1). See above
- Remote Source Inputs. There is a remote source IR control input
for each of the four audio sources allowing for independent IR control
of each device. There is also an input labeled “All” that will allow the
delivery of IR to all connected sources at the same time.
8. Infrared Control Input
This 3.5mm mono mini-jack is for infrared control of the AD-4 from a
control system. A discrete set of IR codes is available within the RTI
Integration Designer programming software or on the RTI website (RTI
dealer accessible only).
NOTE: Mini-jack is mono with tip = IR+, ring=Gnd
CHAPTER 2 | FEATURES AND DESCRIPTION
