Audio Distribution System
AD-4
20

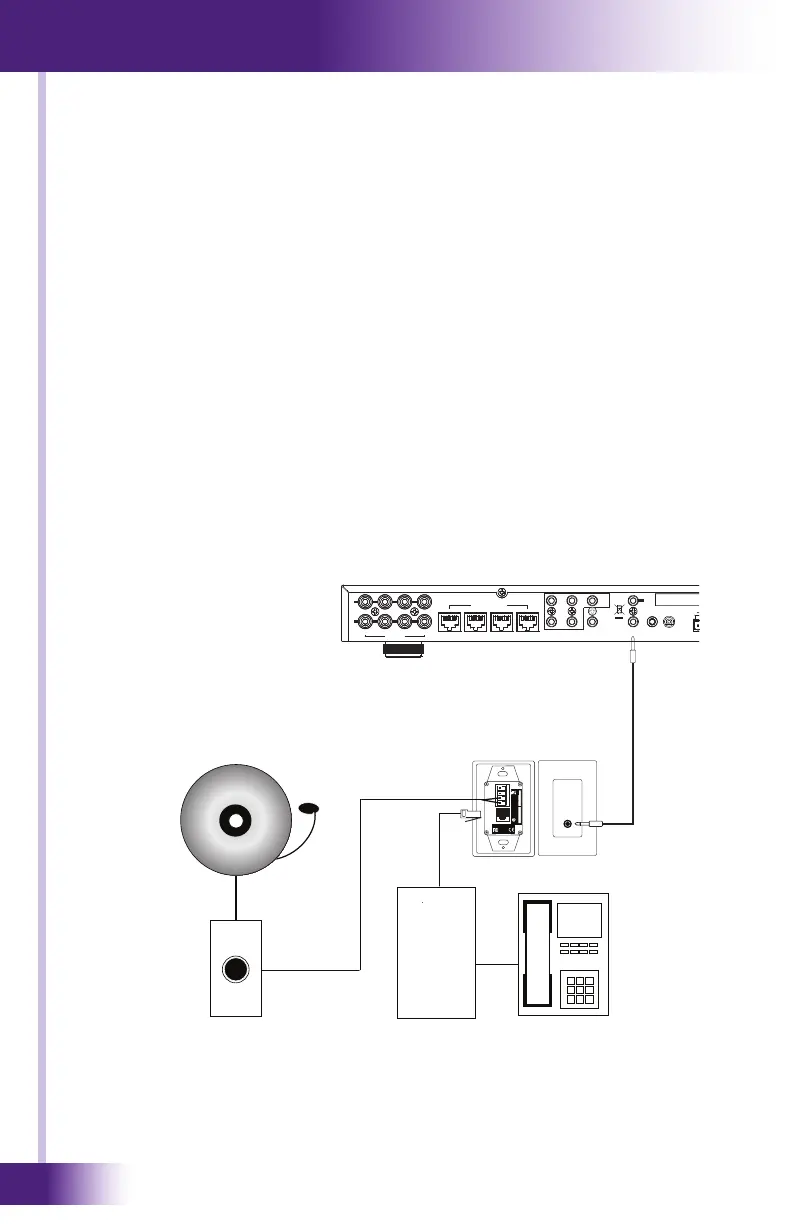

WIRING FOR MUTE INPUT
The back panel of the AD-4 has a 3.5mm non-shorting stereo connector
input labeled “Mute”. This is designed to be used with the PDM-1 Phone-
Doorbell-Mute module. When the PDM-1 is connected, the system will
temporarily mute when the phone or doorbell rings.
Doorbell
The back of PDM-1 will accept up to two AC or DC voltages from two
different doorbell chimes. This connection is done with two conductor wire
from the terminals on the doorbell chime to the Doorbell A or Doorbell
B inputs on the back of the PDM-1, Polarity is not important for this
connection.
Telephone Paging
The ring voltage from a phone line will trigger the AD-4 system to mute.
CHAPTER 3 | INSTALLATION AND OPERATION
To
Mute
PDM1
Phone Doorbell Module
RemoteTechnologies Inc.
www.rticorp.com
Madein Taiwan
PDM1/01
PhoneDoorbell Module
PDM-1
S/N Model
117612 914
P/N20-210126-14
TO DOORBELLS
TO TEL
#1 #2
PDM-1
Rear - Front
Doorbell
Phone
Service
(POTS)
Doorbell
Switch
AC115V/60HZ
AC230V/50HZ
120W
FUSE: T2AL 250V
1
2
3 4
REMOTE SOURCES
L
L
A
1
3
NILRTC
2
4
REMOTE SOURCE
IR INPUT
MUTE
LINK
STATUS
+12VDC
RS232
L L L LR R R R
ZONE 1 SPKRS
ZONE 2 SPKRS ZONE 3 SPKRS
ZONE 4 SPKRS
L
R
1 2 3 4
SOURCES
Made In Taiwan
AD-4
