RTI AD-4x User Manual

15
It’s Under Control
®
CHAPTER 2 | FEATURES AND DESCRIPTION

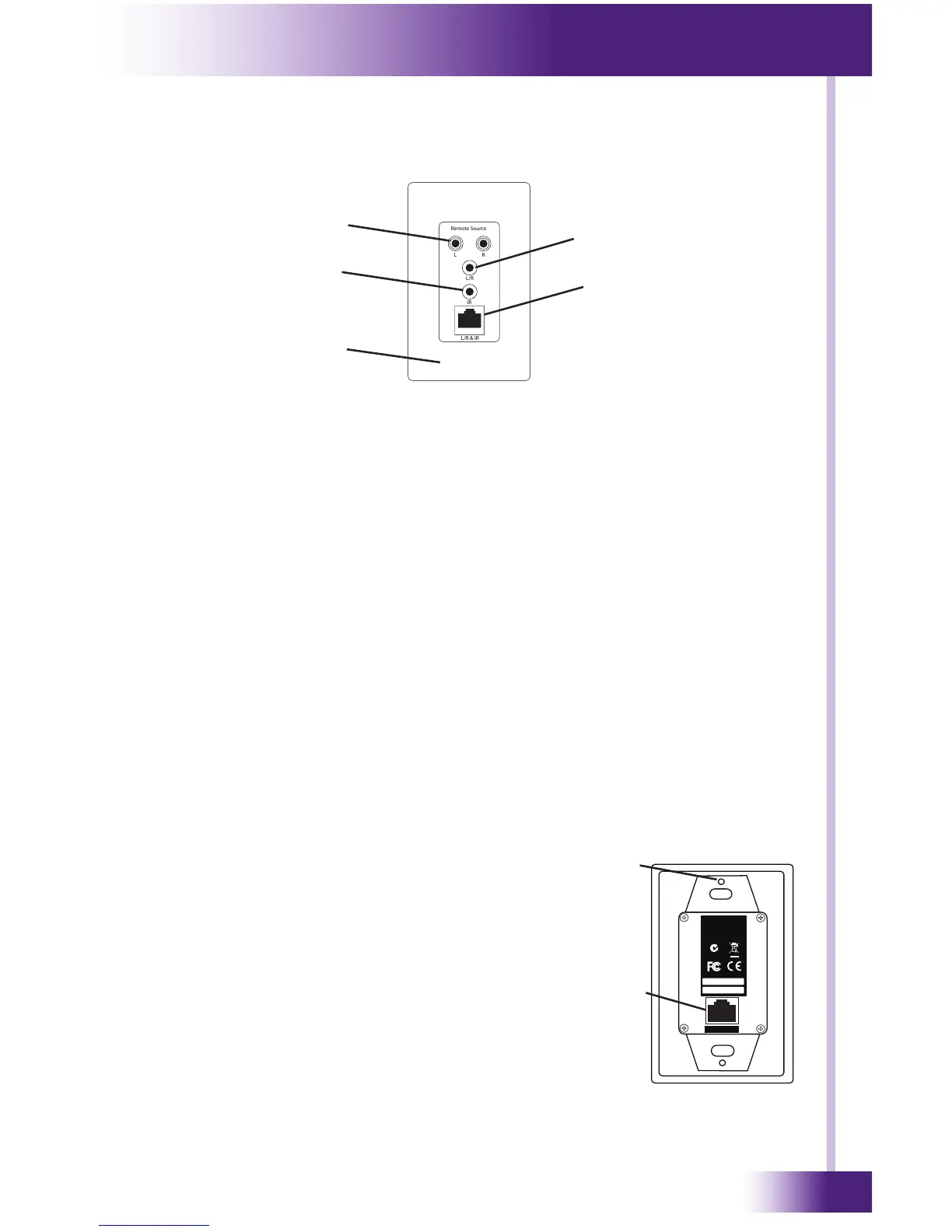

RSP-1 REMOTE SOURCE PLATE* - FRONT
L R
L/R
IR
L/R & IR
Remote Source
1
4
2
3
1. Audio Inputs - RCA
Two RCA input jacks for connection to the output (left and right) of the
remote audio source (Internet music streamer, CD Player etc).
2. Audio Inputs - 3.5mm
One 3.5mm stereo mini jack for connection to the output of the remote
audio source (iPod
®
, PC etc).
3. IR Output
One 3.5mm mono mini jack for connection of an IR emitter to control the
remote source. IR control delivered from control system.
4. Audio Inputs and IR Output
This RJ-45 connection carries the left and right audio inputs from the remote
source and the IR control output over Cat-5 cable.
Note: This would not normally be used.
5. Decora
®
faceplate (not included)
Compatible with standard single-gang Decora
®
style faceplates.
5
RSP-1 REMOTE SOURCE PANEL - REAR
Remote Source Plate
RSP-1
S/N Model
Remote Source Plate
S/N
Model
RSP-1
Remote Technologies Inc.
www.rticorp.com
Made in Taiwan
117 612 914
RSP/01
P/N 20-210125-13
6
7
6. Mounting holes
Use screws to mount the RSP-1 in a standard
single-gang electrical box.
7. Audio and IR control - RJ-45
This RJ-45 connection carries the left and right
audio inputs from the remote source and the IR
control output between the AD-4x and the remote
source.
*Note: RSP-1 sold separately.
