CHAPTER 3 | INSTALLATION AND OPERATION
IP CONTROL OF AD-4x UNITS - ETHERNET
The built-in Ethernet port allows convenient control of one or more AD-4x units
(maximum 8) using IP via an Ethernet network (LAN) from an RTI XP processor.
Conguration of the AD-4x networking is done through a web interface which
is accessible through any web browser (See “CONFIGURING THE AD-4X USING
THE WEB INTERFACE” section of this guide).
NOTES: For IP control:
• DO NOT use both RS-232 and IP for control simultaneously. Using both
control methods at the same time will affect control reliability.
• The RTI control system must have a two-way driver running on the XP
processor.
• The RTI control system and each AD-4x must be connected to the same
Ethernet network (LAN).

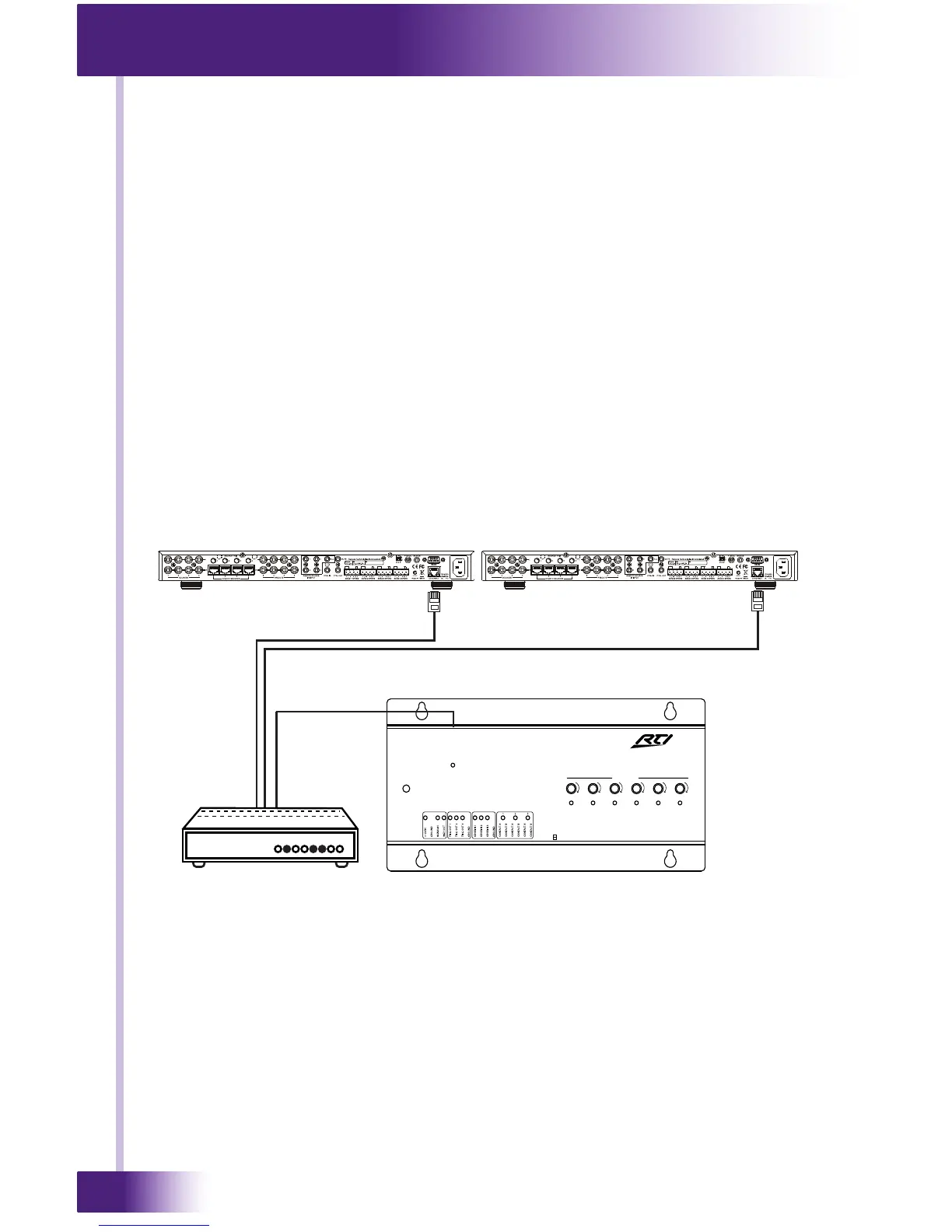

AD-4x #1
RTI XP
Control
Processor
AD-4x #2
RESET
ETHERNET
EXPANSION
PORT 1 PORT 2 PORT 3
PORT 4
PORT 5
PORT 6
+
+ +
+ +
+
USB
RTI COM
POWER
STATUS
RS-232
POWER / IR
+12VDC TRIGGER
+3-24VDC SENSE
RELAYS (+30VDC, 5A MAX)
IR OUTPUT LEVEL
1
2
Model XP-6
Advanced Control Processor
Network Router/Switch
Cat-5
Cat-5
Cat-5
