FGS-2824 User Manual
Publication date: July, 2005
Revision A1
90
Function name:
Static Filter
Function Description:
Static Filter is a function that denies the packet forwarding if the packet’s MAC
Address is listed in the filtering Static Filter table. User can very easily
maintain the table by filling in MAC Address, VID (VLAN ID) and Alias fields
individually. User also can delete the existed entry by clicking <Delete> button.
Parameter description:
MAC:
It is a six-byte long Ethernet hardware address and usually expressed by
hex and separated by hyphens. For example,
00 – 40 - C7 - D6 – 00 - 02
VID :
VLAN identifier. This will be filled only when tagged VLAN is applied.
Valid range is 1 ~ 4094.
Alias :
MAC alias name you assign.

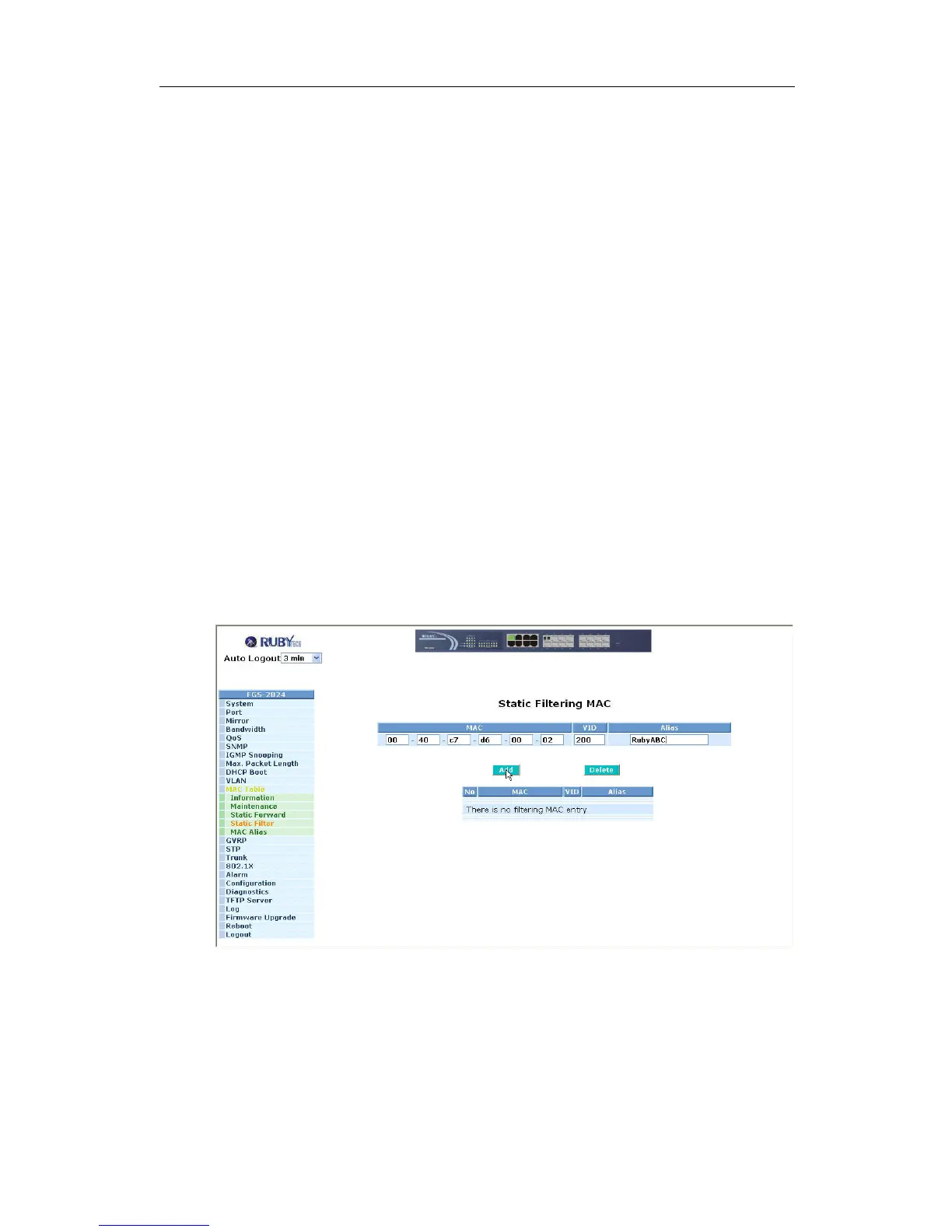

Fig. 3-40
