20
COMPILER TECO/ATI ENDORSEDDATE
23.06.2003
REG. CODE
1-5302-602
MODEL N°
50884
DATE OF ISSUE
06-03
REVISION 00
X
12
13
14
15
d= 0,8 ÷1,0 d=1,3

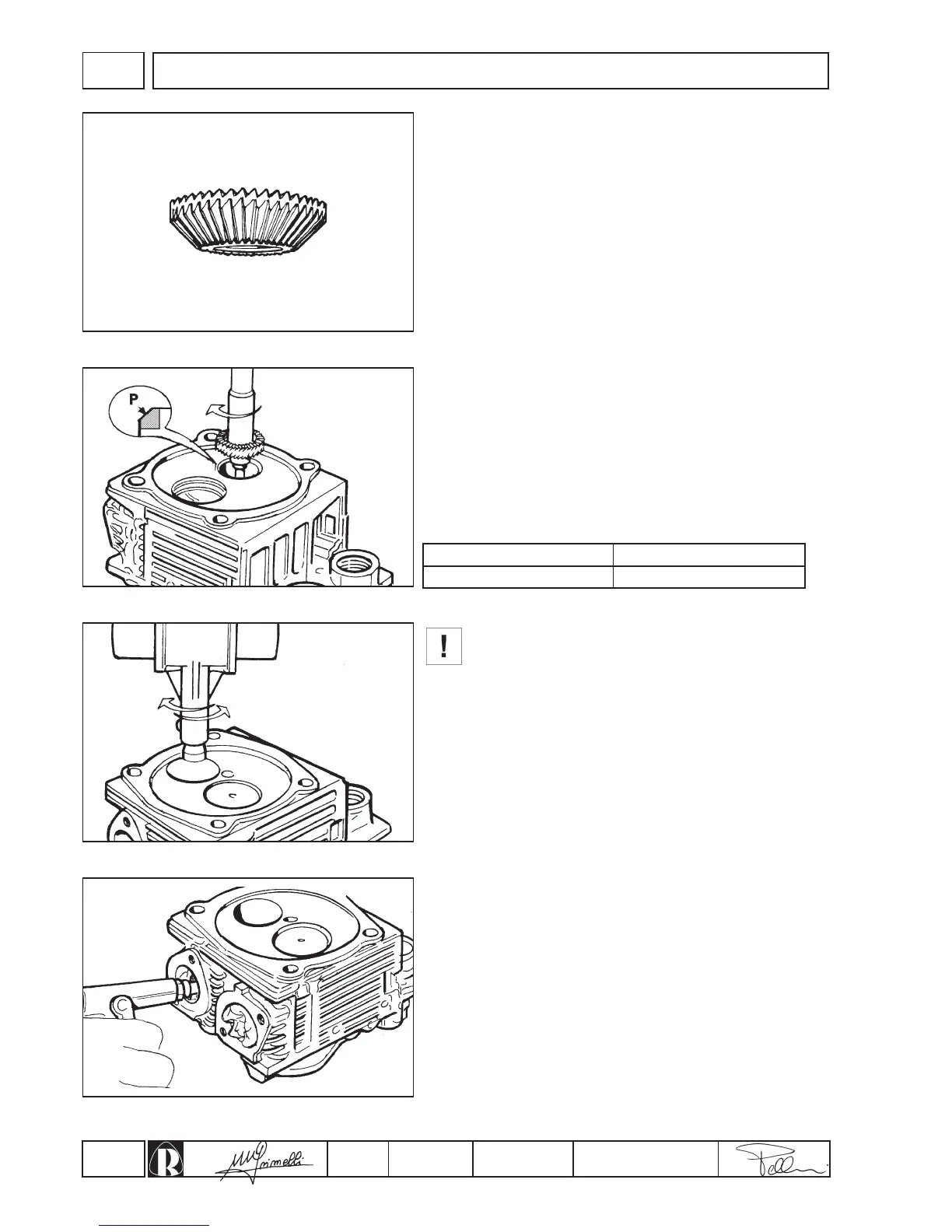

CHECKS AND OVERHAUL
After prolonged running of the engine the hammering of the valves
on their seats at high temperature tends to harden the faces of the
seats and makes manual grinding difficult. It is necessary to
remove the hardened surface with a 45° cutter (fig. 12).
Grinding of valve seats causes a widening of the valve seat face P
(fig.13).
Final lapping of the valve on the seat must be carried out by coating
the seat with a fine lapping compound and rotating the valve in a
clockwise and counterclockwise direction with slight pressure until
a perfect surface finish is obtained (fig.14).
Observe the valve seating clearances indicated in the following
table (fig.10).
Fitting mm Max. wear mm
In the case of lower values the valve may strike the piston.
In the case of values in excess of 1.3 mm the valve seat
rings must be replaced.
Fitting of new seats or valves always requires preparatory grinding.
Valves are available with the external diameter increased by
0.5 mm.
After grinding wash the valve and seat carefully with petrol or
paraffin in order to remove residual grinding paste and chips. Once
you have finished grinding check the efficiency of the seal between
the valve and seat as outlined below:
1.Fit the valve on the head with spring, washers and split cones
(fig.9).
2.Invert the head and pour in a few drops of diesel fuel or oil
around the edges of the valve head.
3.Blow compressed air into the inlet of the cylinder head taking
care to seal the edges so that the air does not escape (fig.15).
Should air bubbles form between the seat and the valve remove the
valve and regrind the seat.
