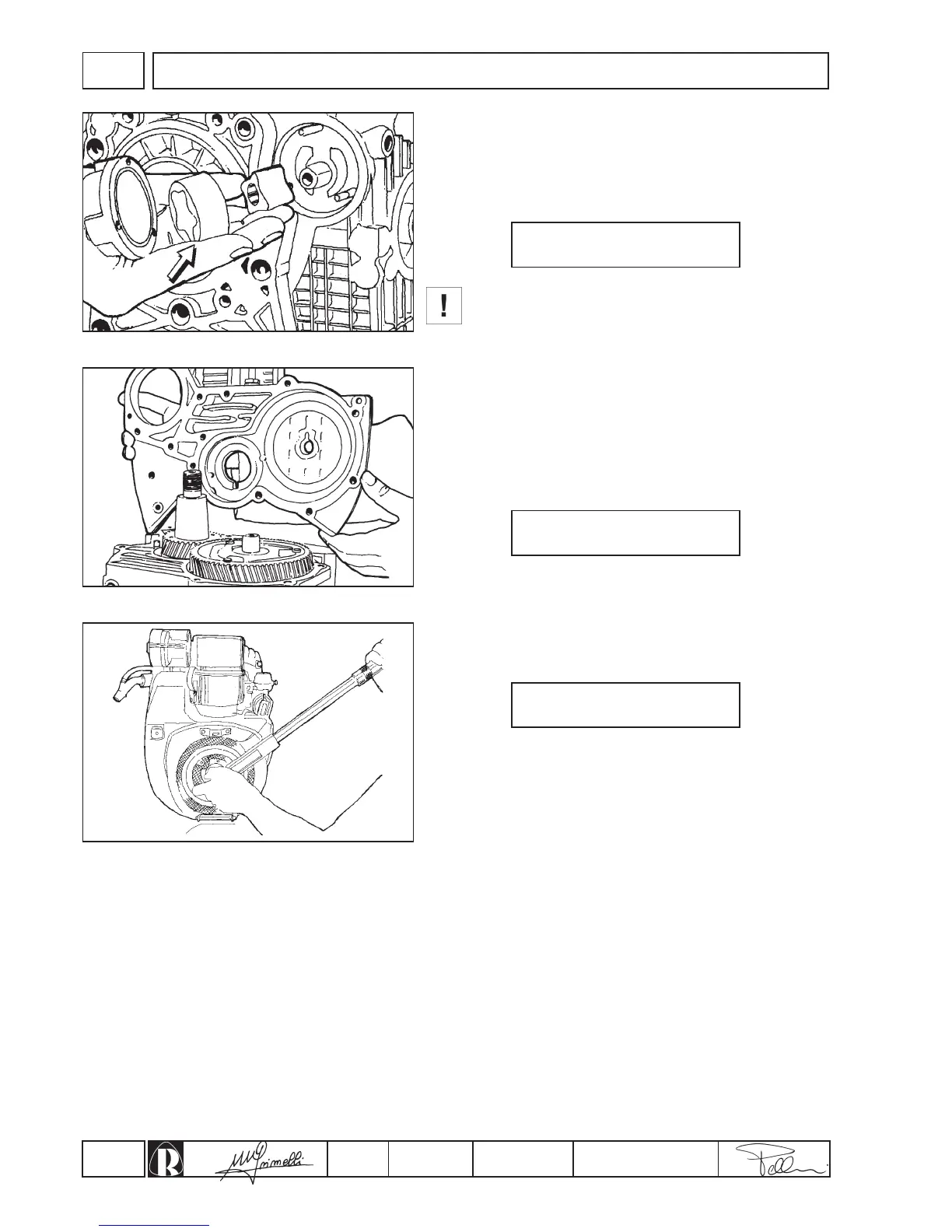

ENGINE ASSEMBLY
Oil pump
See pag. 25 if you wish to check the rotors.
Fit the external oil pump rotor with the bevel toward the inside of the
cover (fig.70).
Torque the bolts to:
It is good practive to fill the oil suction pipe in order to aid
pump priming when the engine is started up for the first
time.
Timing cover
Check that the timing markeson the camshaft and crankshaft gears
are aligned (fig.69).
Fit the oil seal onto the cover using a normal tubular punch of
appropriate diameter. Mount the cover to the crankcase (fig.71) after
first inserting a gasket between the mating surfaces; tighten the
screws to:
Pulley and flywheel
Tighten the pulley and flywheel nut (fig.72) to:
