Ruggerini RY 50 - Ry 103-110 Lubrication System

47
17-04-2003
01
15-01-2004
DATE
COMPILER TECO/ATI
REG. CODE
1-5302-467
MODEL N°
50707
DATE OF ISSUE
REVISION
ENDORSED
83
IX
LUBRICATION SYSTEM

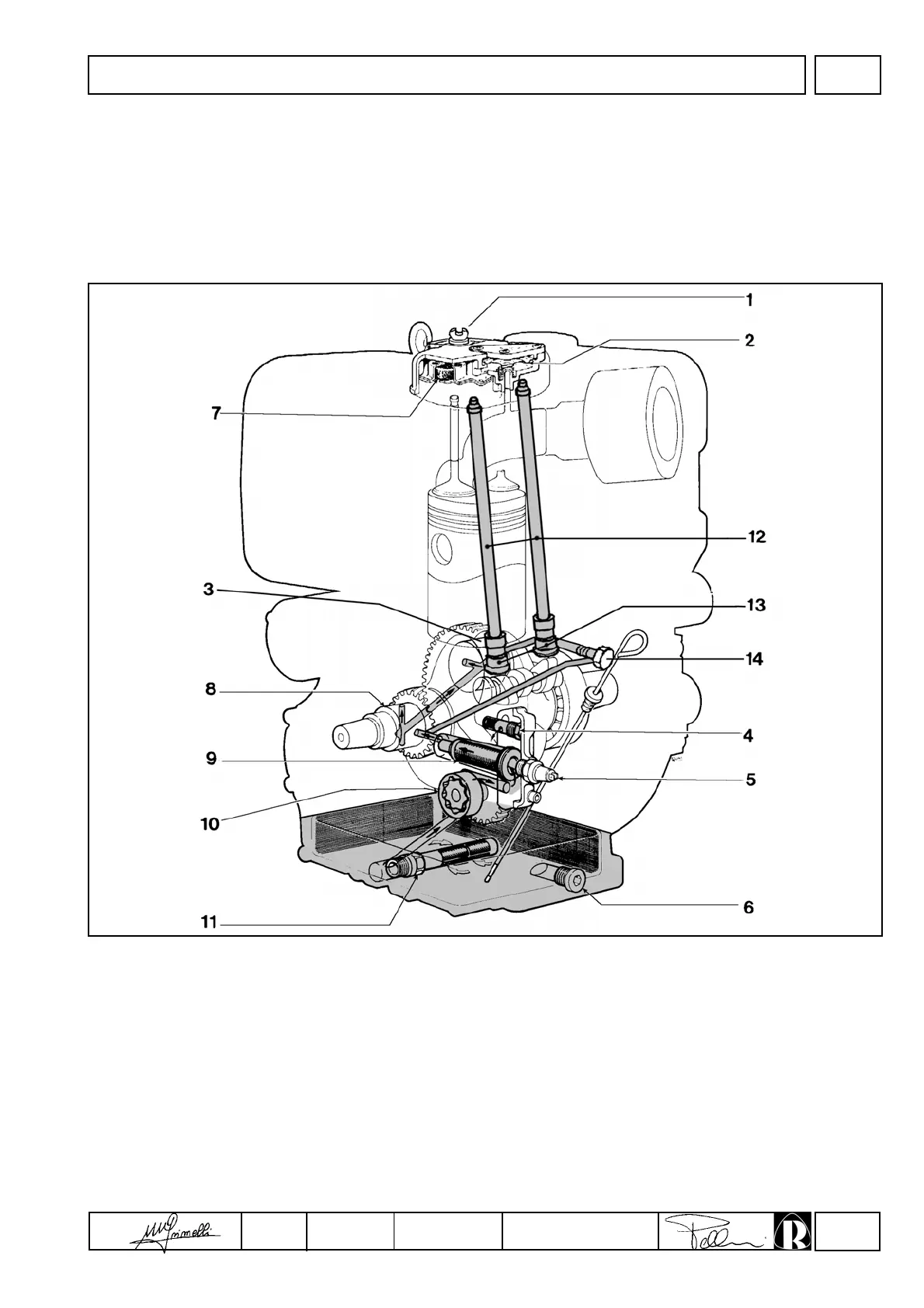

RY 103-110 LUBRICATION SYSTEM AND BREATHER RECIRCULATION SYSTEM
Components:
1) Oil fill cap 6) Oil drain plug 11) Oil intake filter
2) Safety valve 7) Metal filter element 12) Pushrods
3) Rod journal 8) Main journal 13) Hydraulic tappets
4) Pressure control valve 9) Oil filter 14) Calibrated union
5) Pressure switch 10) Oil pump
