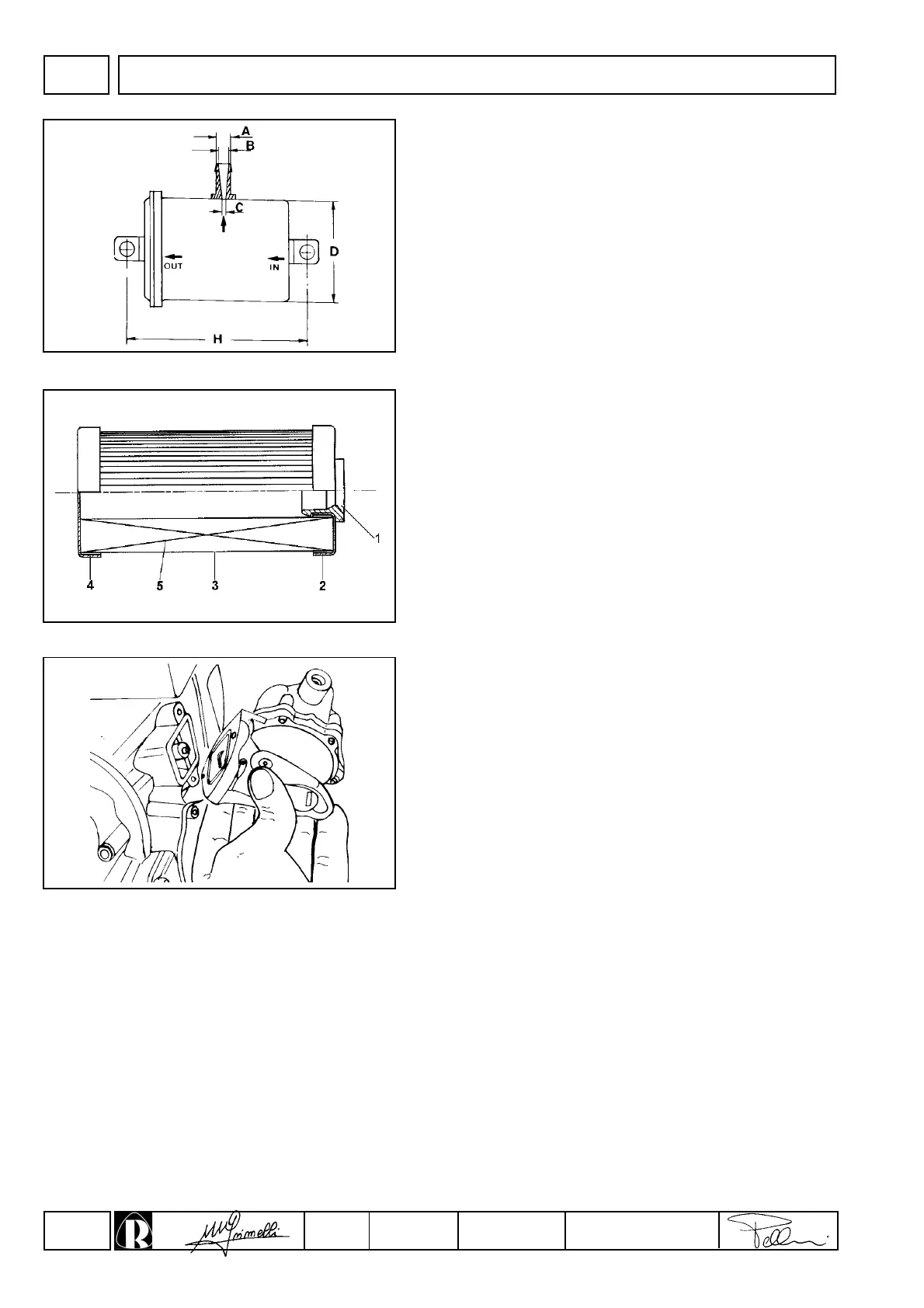

Fuel filter RY 50-70-75-103-110
A = 7.3
B = 3.8
C = 1.5
D = 42
H = 75
Characteristics:
Filtering area ≥ 390 cm²
Filtration level ≤ 7 µm
See page 18 for fuel filter replacement
Fuel filter RY 50 (version with internal filter in tank)
1 Rubber retention ring
2 PRV cover
3 SCP radial unit
4 PRV cover
5 Segment
Characteristics:
Filtering area 215 cm
2
Filtration level 7 µm
See page 18 for fuel filter replacement
Feed pump (optional)
A feed pump is usually requested when the tank is not supplied in
conjunction with the engine.
The pump is the diaphragm type and is operated by a camshaft
eccentric through a drive rod.
Tighten screws to 15 Nm.
Characteristics: At 2000 rpm of the camshaft, the minimum delivery
is 40 l/h, while the automatic adjustment pressure
is 0.5 ÷ 0.7 bars.
